e-CAM131_CUNX - 4K Camera for NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™

e-CAM131_CUNX is a 4K Ultra HD fixed focus MIPI camera for NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ developer kit. This 4K Jetson Xavier NX camera based on 13 MP AR1335 CMOS Image sensor from onsemi®. It has a dedicated Image Signal Processor chip (ISP), that performs all the Auto functions (Auto White Balance, Auto Exposure control). This 4K MIPI camera can be developed by any V4L2 application. The high resolution MIPI camera can be directly connected to the MIPI CSI-2 interface on the NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ developer kit.

Supported Platforms:

NVIDIA Jetson developer kits
NVIDIA® Jetson™
Dev Kits
AverMedia EN715
AVerMedia
EN715 AverAI
Seeed Studio
Seeed Studio J101/J202/Jetson A203 V2/J401

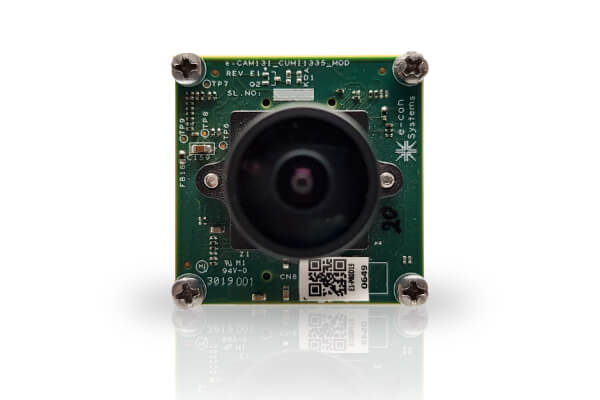

  • Houses e-CAM137A_CUMI1335_MOD - 13MP Camera Module with S-mount lens holder
  • Multi board solution
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Plugs in to NVIDIA® Jetson Xavier™ NX/NVIDIA® Jetson Nano™ Developer Kit
  • Frame Rate:
  • Resolutions UYVY
    VGA (640 x 480) 115 fps
    HD (1280 x 720) 75 fps
    Full HD (1920 x 1080) 65 fps
    4K (3840 x 2160) 15 fps
    4K CINEMA (4096 x 2160) 15 fps
    13MP (4192 x 3120) 10 fps
    Custom ROI >300 fps*
  • * - Not supported by default. Requires firmware customization for higher framerates with custom ROI resolutions.
  • Linux camera driver (V4L2) for 13MP MIPI CSI-2 camera module
  • Operating Temperature Range: -30°C to 70°C
  • Power Consumption:
    • Max : 1.65W
  • Board Weight - 10 Grams (without lens)
                               16 Grams (with lens)
  • Size in mm (l x b): 30 x 30 mm
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Lightweight, versatile, and portable design
  • RoHS compliant
  • Launched on:launch date

Camera Module Features:

Sensor:AR1335 from onsemi®

Sensor Resolution and Optical Format:13MP CMOS Image Sensor. 1/3.2" Optical format

Sensor Type:13MP CMOS Electronic Rolling Shutter Sensor

Image Signal Processor:On-board high performance ISP

Output Format:Uncompressed UYVY format

Sensor Features:

Pixel size:1.1μm x 1.1μm pixel with BSI technology

Sensor Active Area:4208 (H) x 3120 (V)

Responsivity:4700 e-/lux-sec

SNR:37 dB

Dynamic Range:69 dB

Shutter type:Electronic Rolling Shutter

Focus Type:Fixed focus / Auto focus*

Array Size:4208x3120

FOV: 110°(D), 86°(H), 64°(V) (with 1/3.2" AR1335)

* - Liquid lens option is available for this product and can be provided on request

The e-CAM131_CUNX is a MIPI camera and it requires a custom camera driver for NVIDIA® Jetson Nano™ / NVIDIA® Jetson Xavier™ NX Developer Kit. e-con Systems provides the camera driver along with the camera board.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson Xavier™ NX - JetPack 5.1.1 L4T35.3.1
    • NVIDIA® Jetson NANO™ - JetPack 4.6.0 L4T32.6.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (Manual, Automatic)
    • Digital Zoom
    • Pan
    • Tilt
    • iHDR

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM131_CUNX - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM131_CUNX Datasheet

pdf e-CAM131_CUNX Lens Datasheet

 Bullat Arrow  user Manual

pdf e-CAM131_CUNX Getting Started Manual

pdf e-CAM131_CUNX Developer Guide

pdf e-CAM131_CUNX Linux App User Manual

pdf e-CAM131_CUNX Gstreamer Usage Guide

pdf e-CAM131_CUNX Release Package Manifest

pdf e-CAM_TK1 GUVCView Build & Installation Guide

Download Selected Documents

Kit Contents:

    • e-CAM137A_CUMI1335_MOD - 13MP MIPI Camera Module with lens
    • Adaptor board
    • Flex Cable (15 cm)
    • Linux Driver & Sample Application
  • Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
