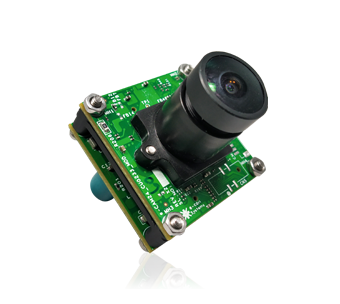

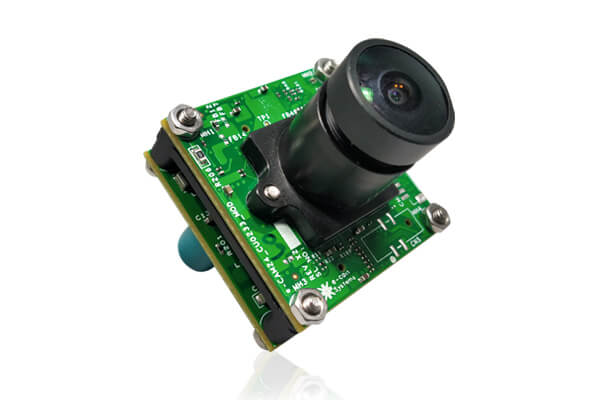

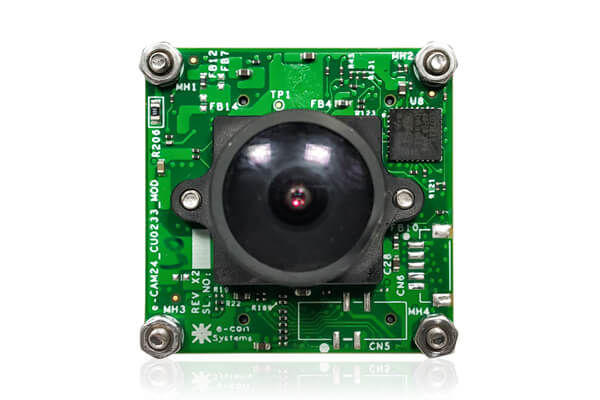

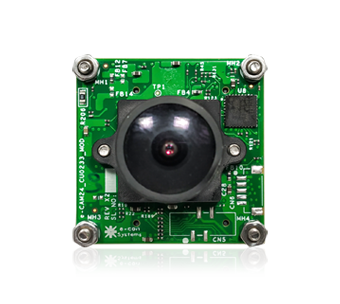

NileCAM21 - Full HD GMSL2 HDR Camera with LFM (supports upto 15m cable)

Highlights:

  • Houses AR0233 Full HD Camera Module with S-mount lens holder
  • High Dynamic Range (HDR) with LFM
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • Shielded coaxial cable to transmit power and data up to 15m
  • External Trigger support for synchronized multi-camera streaming and Sensor fusion
  • Optional IP67-rated enclosure with antifogging capability

Sample Price

USD 349

Documents

Excluding Shipment Charges

Evaluate NileCAM21 with,

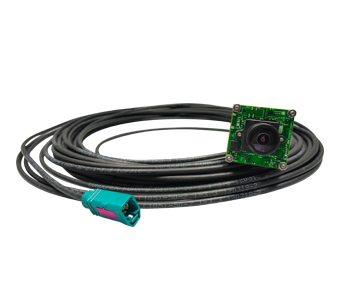

NileCAM21 is a Full HD GMSL2 camera featuring High Dynamic Range (HDR) and LED Flickering Mitigation (LFM) with 15m coaxial cable. It is based on the 1/2.5" AR0233AT CMOS image sensor with new 3.0 µm dual conversion gain BSI pixel technology from ON Semiconductor®. This camera is designed with a well-tuned high-performance Image Signal Processor (ISP) to achieve excellent image quality from the sensor. It ships with a 15 meter coaxial cable, enabling seamless high-quality video streaming upto a distance of 15 meters from the host processor with very low latency.

The camera's High Dynamic Range (HDR) capability ensures reliable images even in outdoor lighting conditions when the target scene has both dark and bright regions. Its large pixel size with high SNR helps to produce extraordinarily clear and sharp images even in lowlight with lesser noise. Its multi-camera synchronization helps to capture frames of all the connected cameras at the same time making it ideal for multi-camera applications like surround view system.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate - Streams FHD@30fps, VGA@60fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY format
    • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
    • Single GPIO allocated for multi NileCAM21 camera synchronization
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: AR0233AT from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.5"
    • Output Format: 24-Bit RGB Bayer
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 2048H x 1280V
    • Array Size: 2048H x 1280V
    • Responsivity: 30.4 Ke-/lux-sec
    • SNR: 43.1 dB
    • Dynamic Range: Max up to 140 dB
    • Holder: M12 (S-Mount)
    • FOV: 129.7°(D), 110.65°(H), 61.16°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption: Max : 2.196W, Min : 0.78W
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
 Bullat Arrow  Datasheet
 Bullat Arrow  Compliance

Download Full HD USB Camera Documents

Product Code Supported Platforms Sample Price
(1 Unit)
Purchase
NileCAM21_CUOAGX
Kit Contents
  • NileCAM21 - AR0230 Full HD GMSL2 HDR Camera
  • Deserializer board
  • 15 meters coaxial cable
NVIDIA® Jetson AGX Orin™ Dev Kit
USD 549
buy e-con camera
NileCAM21_CUXVR
Kit Contents
  • NileCAM21 - AR0230 Full HD GMSL2 HDR Camera
  • Deserializer board with 6 camera connectors
  • 15 meters coaxial cable
NVIDIA® Jetson AGX Xavier™ dev kit
USD 549
buy e-con camera
STURDeCAM21_CUOAGX
Kit Contents
  • STURDeCAM21 - AR0230AT Full HD GMSL2 HDR camera
  • Deserializer board
  • 15 meters coaxial cable
NVIDIA® Jetson AGX Orin™ /Xavier™ dev kit
USD 699
buy e-con camera
ARM Based Solution
Connect Tech Jetson Xavier Rogue Carrier Board - contact us
ARM Based Solution
Connect Tech Rudi-NX Embedded System - contact us
ARM Based Solution
Connect Tech Rudi-AGX Embedded System - contact us

NileCAM21_CUOAGX-NVIDIA® Jetson AGX Orin™ Dev Kit

buy now

NileCAM21_CUXVR-NVIDIA® Jetson AGX Xavier™ dev kit

buy now

STURDeCAM21_CUOAGX-NVIDIA® Jetson AGX Orin™ /Xavier™ dev kit

buy now

ARM Based Solution-Connect Tech Jetson Xavier Rogue Carrier Board

contact us

ARM Based Solution-Connect Tech Rudi-NX Embedded System

contact us

ARM Based Solution-Connect Tech Rudi-AGX Embedded System

contact us

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

NileCAM21 - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NileCAM21 on any application platform as per customer requirements.

NileCAM21 - Customization:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable.
  • Change of lens to meet your FOV and other requirements.
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms.
  • Support for other processor platforms.
