NileCAM21_CUXVR - HDR GMSL2 multi-camera solution for NVIDIA® Jetson AGX Xavier™ (15 meter cable support)

Highlights:

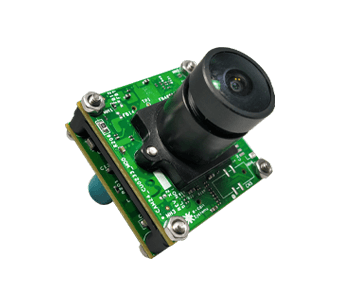

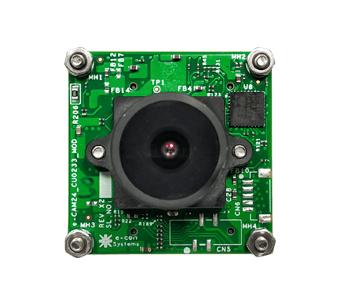

  • Houses NileCAM21 - Full HD GMSL2 Camera Module (supports upto 15 meters)
  • Plugs into NVIDIA® Jetson AGX Xavier™ developer kit
  • High Dynamic Range (HDR) with LED Flickering Mitigation (LFM)
  • Gigabit Multimedia Serial Link 2 (GMSL2) interface with FAKRA connector
  • Shielded coaxial cables to transmit power and data up to 15m
  • External Trigger support for synchronized multi-camera streaming
  • On-board high performance ISP
  • Optional IP67-rated enclosure
i

Sample Price

USD 549

Documents

Supported Platforms,

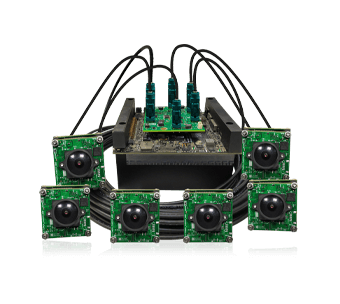

NileCAM21_CUXVR is a Full HD color GMSL2 synchronized multi-camera solution featuring High Dynamic Range (HDR) and LED Flickering Mitigation (LFM). This camera kit is designed to work with NVIDIA® Jetson AGX Xavier™ developer kit with 15m coaxial cable. It is based on the 1/2.5" AR0233AT CMOS image sensor with new 3.0 µm dual conversion gain BSI pixel technology from onsemi®. The NileCAM21_CUXVR is designed to stream 15m away from the NVIDIA® Jetson AGX Xavier™ developer kit (host processor) with very low latency. NileCAM21_CUXVR allows to connect upto six NileCAM21 cameras and enables synchronized Full HD streaming at 30 fps simultaneously.

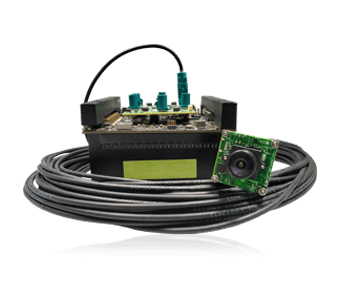

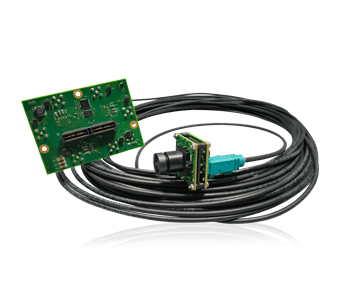

To speed up the product development process, e-con Systems also offers a fully integrated NileCAM21_CUXVR camera kit, comprising one NileCAM21 camera and a deserializer board that plugs into the NVIDIA® Jetson AGX Xavier™ developer kit. This allows customers to connect a maximum of six cameras and enables synchronized Full HD streaming at 30 fps simultaneously. Its High Dynamic Range (HDR) of 120dB, LED flickering mitigation (LFM), low light capability and 15m cable support make this camera ideal for industrial and outdoor applications such as high-end surround view systems, unmanned guided vehicles (UGV), robotics, agriculture automation, industrial vehicles, industrial long-range applications and so on.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Asynchronous Mode: Full HD @ 30 fps & VGA @ 60 fps
      • Synchronous Mode: Full HD @ 30 fps & VGA @ 30 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Uncompressed UYVY format
    • High-speed MIPI CSI-2 interface to connect with the CPU
    • S-mount lens holder for flexibility to choose a lens as per application requirements
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Module features:
    • Sensor: AR0233AT from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.5"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 2048(H) X 1280(V)
    • Array Size: 2048(H) X 1280(V)
    • Responsivity: 30.4 Ke-/lux-sec
    • SNR: 43.1 dB
    • Dynamic Range: Max up to 140 dB
    • Holder: M12 (S-Mount)
    • FOV: 129.17°(D), 110.65°(H), 61.16°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption: Max : 2.91W, Min : 1.81W
    • Size in mm (l x b):
      • serializer board - 30 x 30 mm
      • deserializer board - 75 mm x 55 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download NileCAM21_CUXVR Documents

Linux camera driver:

Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's NileCAM21_CUXVR on Jetson developer kit. The camera driver source code can be ported to any NVIDIA® AGX Xavier™ platform.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson AGX Xavier™ - JetPack 4.6 L4T32.6.1
    • NVIDIA® Jetson AGX Xavier™ (Aetina AX720 Dev Kit) - JetPack 4.6.2 L4T32.7.2
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Sharpness
    • Saturation
    • Gain
    • White Balance (Manual and Auto)
    • Exposure (Manual and Auto)
    • Pan & Tilt
    • Color Kill
  • Additional Capabilities:
    • Color Kill
    • Anti Flicker Mode
      • Auto Mode
      • Manual Mode
    • Orientation
      • Horizontal Mirror
      • Vertical flip
    • Sensor Mode
      • Standard Mode
      • HDR Mode
    • Effects
      • Normal
      • Gray scale
    • Burst Image Capture
    • Support for external trigger
    • Denoising
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
NileCAM21_CUXVR - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NileCAM21_CUXVR on any application platform as per customer requirements.

NileCAM21_CUXVR - Customization:
e-con provides customization, development and porting services for the following requirements:
  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms.
  • Support for other processor platforms
