RouteCAM_CU22_IP67 - Outdoor Lowlight GigE HDR Camera

Highlights:

  • Power-over-Ethernet (PoE) camera
  • Houses Sony Starvis 2 IMX662 Ultra Low-light Image Sensor
  • High Dynamic Range
  • Low Latency upto 75ms*
  • PTP Network Time Synchronization**
  • IP67-Rated Enclosure
  • Compatible with CloVis Central™ - Device Management Platform *

Sample Price


Volume Price
starts at

USD 99

buy now

Excluding Shipment Charges

Technical
documents

Technical documents



RouteCAM Download Document

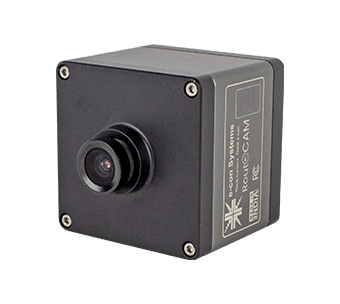

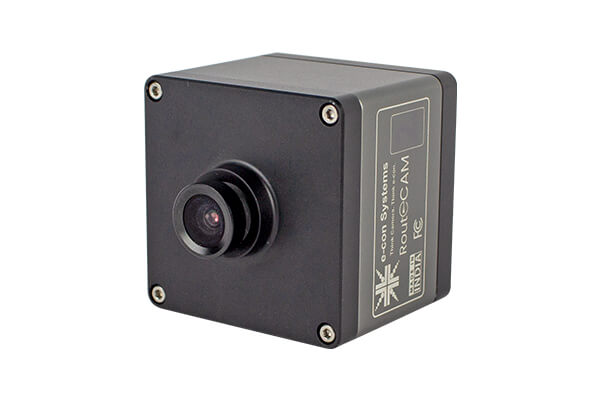

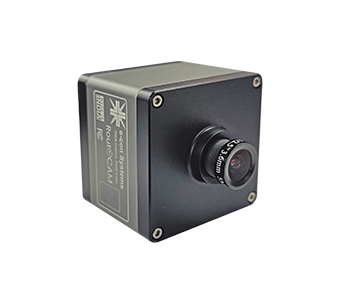

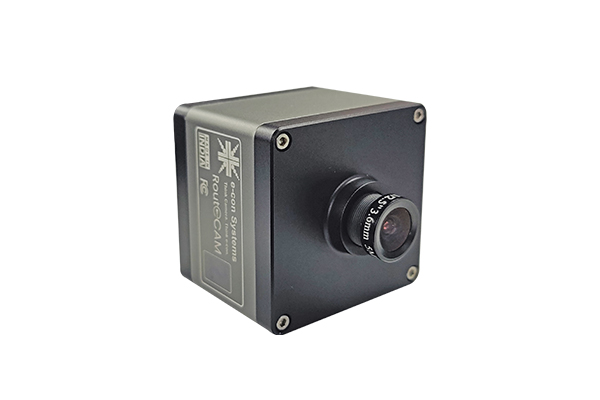

RouteCAM_CU22_IP67 is an IP67-rated HDR Power-over-Ethernet (PoE) camera featuring the Sony® STARVIS™ IMX662, a 1/2.8" CMOS image sensor. This camera can stream compressed 1080p video at 60 fps. It also adheres to IEEE 802.3af compliance and includes PTP synchronization support.

RouteCAM_CU22 comes with the high-performance in-built ISP that helps in achieving excellent HDR performance even in ultra-low light environments. This PoE camera ensures reliable imaging even with cable lengths of up to 100m. Qualified for Road Vehicles Standards, this camera endures extreme temperatures, ensuring its durability and resilience for outdoor use in any environment with an IP67 rating while complying with industry regulations.

This camera is compatible with the CloVis Central™, an easy-to-use and powerful cloud-based device management platform that manages entire on-field device operations, enabling faster time to market, reduced costs, and enhanced application success rates.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: HD @ 60 fps & Full HD @ 60 fps
      Refer pdfDatasheet for complete frame rate details.
    • Output format: Compressed MJPEG, H.265 and H.264 formats
    • S-mount lens focused and glued at factory
    • Shielded Cat6 M12 to RJ45 cable for transmission of both power and data for long distance
    • Supports 10Base-T, 100Base-TX and 1000base-T modes
    • Unique ID for each camera
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GigE

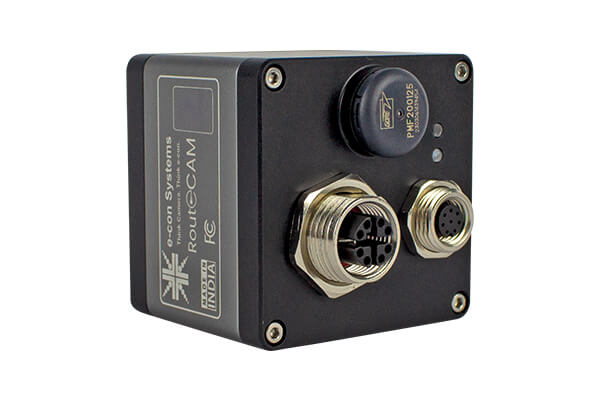

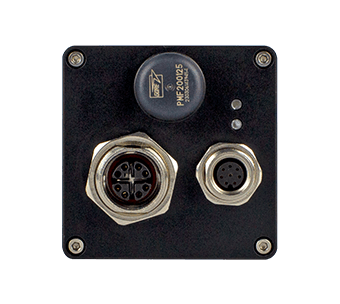

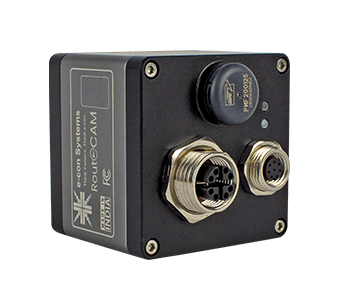

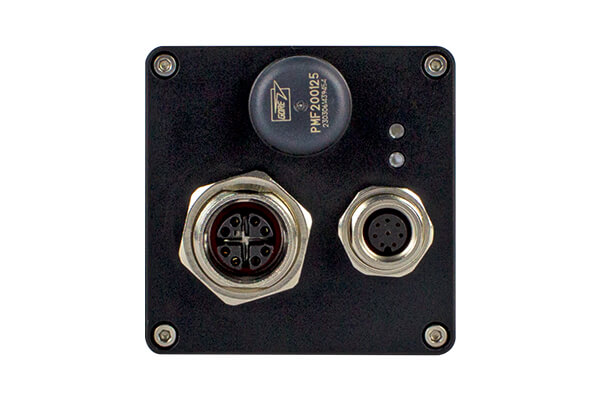

    • Connector: M12
    • Cable length: 3m
  • Module features:
    • Sensor: IMX662 from Sony® Starvis 2
    • Focus Type: Fixed focus
    • Sensor Resolution: Full HD
    • Chroma: Color
    • Shutter type: Electronic Rolling Shutter
    • Optical Format: 1/2.8"
    • Output Format: Compressed MJPEG, H.265 and H.264 formats
    • Focus Distance: 1m to Infinity
    • Pixel size: 2.9 μm x 2.9 μm
    • Sensor Active Area: 1937H x 1097V
    • Dynamic Range: 88 dB
    • Holder: M12 (S-Mount)
    • FOV: 141.98°(D), 127.49°(H), 72.71°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Power-up Options:
      • IEEE802.3af standard PoE Input through M12 Connector
      • 12V supply through M8 connector for non-POE applications
    • Operating Temperature Range: -30°C to 70°C
    • Power requirements: 2.78W
    • Size in mm (l x b x h) :
      • Without lens: 46mm x 46mm x 52.95mm
      • With lens: 46mm x 46mm x 65.12mm
  • Standards and Compliance:
  • Launched on: launching date
  • * - Not available with off-the-shelf version, available on request. Please contact camerasolutions@e-consystems.com for more details.
  • ** - For PTP network time sync support, please contact camerasolutions@e-consystems.com
  • Supported OS - Windows, Linux
  • Supported Profiles - ONVIF supported Profiles S & T
  • Supported Streaming formats - MJPEG, H.265 and H.264
  • Ethernet IP Configuration - DHCP/Static IP Configuration
  • Features of RouteCAM Viewer Application
    • Automated IP Discovery & Streaming
    • Support for Camera Controls
    • Provision for changing resolution and format available in Linux.
  • Linux Socket Application for extended Camera features
  • OTA (Over-The-Air) Upgrade *
  • Software controls:
    • Exposure (Auto/Manual)
    • White Balance (Auto/Manual)
    • Brightness
    • Saturation
    • Contrast
    • Sharpness
    • Gain
    • HDR
  • Compatible with CloVis Central™ *, an easy-to-use and powerful cloud-based device management platform delivering a complete solution for remote configuration and maintenance. Ready-to-deploy software tailored to your application needs, with customization options available to meet specific requirements.
  • * - Available on request. Please contact camerasolutions@e-consystems.com for more details.
S.No Certification Test Specifications
Immunity standards
1 EN 61000-4-2:2011

EN 61000-4-2:2011 Electrostatic Discharge test, (contact: (+/-8kV) Criterion B, air: (+/-15kV)) Criteria B

2 EN 61000-4-3:2020

Radiated, Radiofrequency, electromagnetic field immunity tests (80 - 6000MHz) @ 3V/m intensity

3 EN 61000-4-4:2013

Signal level Electrical Fast Transient/Burst immunity tests, +/-4kV, Criteria B

Environmental standards
4 ISO 16750-4 Road vehicles

Environmental conditions and testing for electronic equipment.

Part 4: Climatic test methods

5 ISO 16750-3 Road vehicles

Environmental conditions and testing for electronic equipment.

Part 3: Mechanical loads

6 ISO 20653 - 2013

Degrees of protection provided by enclosures IP67

Emission standards
7 FCC Part 15, Subpart B, Class-B

est done according to Federal Communications Commission's (FCC) regulations for electronic devices under subpart B

8 ROHS
Note: The product has been qualified for above standards with simulated control unit. Final Certification to be performed with targeted system & application.



 Bullat Arrow  Datasheet

Download 3MP Camera Documents

Part No Description Sample Price
(1 Unit)
Purchase
RouteCAM_P_CU22_CXLC_IP67_H01R2
    • 2MP IP rated Ethernet camera with around 140° DFOV optical lens
    • POE injector setup
    • 3m M12 to ethernet cable
buy e-con camera

RouteCAM_P_CU22_CXLC_IP67_H01R2-2MP IP rated Ethernet camera with around 140° DFOV optical lens, 3m M12 to ethernet cable and with POE injector setup

Sample Price (1 Unit)-

buy e-con camera



RouteCAM_CU22_IP67 – Customization
  • Do you need a different lens to meet your FOV and other requirements?
  • Do you need support with different sensors?
  • Do you need any External control signal in M8 connector?
  • Do you want a different form factor?
  • Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
