NeduCAM80_CUOAGX - 4K Sony IMX415 FPD-Link III camera for NVIDIA® Jetson AGX Orin™/ AGX Xavier™

Highlights:

  • Houses 8MP Sony starvis IMX415 camera module
  • Ultra-low light sensitivity

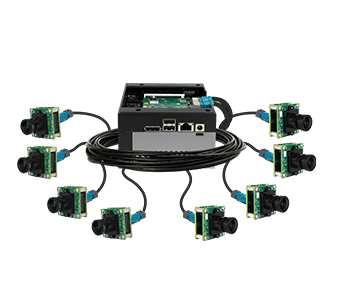

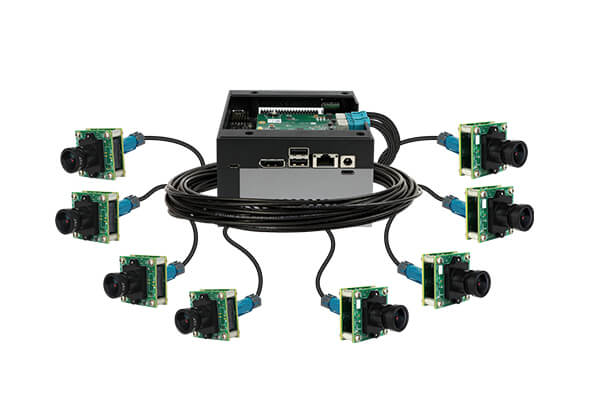

  • Plugs into NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kits (up to 8 cameras)
  • FPD-Link III interface to transmit power and data up to 15m
  • External trigger support for synchronized multi-camera streaming *
  • Optional IP67-rated enclosure

Sample Price

Documents

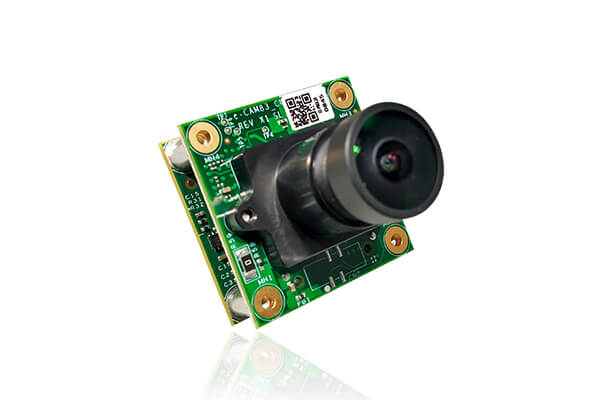

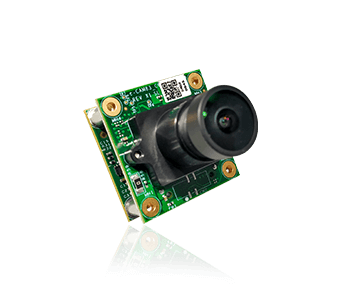

NeduCAM80_CUOAGX is a 4K camera module that can be readily integrated with NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kits. This camera is based on the 1/2.8" IMX415 CMOS sensor from Sony® starvis. Its low light sensitivity delivers exceptional clear color images even at extremely low light or even no light conditions.

This 4K camera is ideal for applications that require monitoring a huge area such as parking lot management, traffic monitoring systems, smart surveillance, sports vision etc. This camera contains NeduCAM80 - an 8MP color camera module with FPD-Link III serializer, a 15 meter coaxial cable and an FPD-Link III deserializer board with 8 camera connectors. Also, NeduCAM80_CUOAGX has a standard M12 lens holder which gives customers an option to use customized optics or lenses for their applications.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • HD @ 60fps, Full HD @ 42 fps, 4K @ 22 fps
      Refer pdfDatasheet for complete frame rate details.
    • NV12 streaming
    • High-speed MIPI CSI-4 interface to connect with the CPU
    • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements.
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: FPD-Link III
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Module features:
    • Sensor: IMX415 from Sony® Starvis®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.8"
    • Output Format: RGB RAW 10/12-bit
    • Pixel Size: 1.45 μm x1.45 μm
    • Sensor Active Area: 3864(H) x 2192(V)
    • Array Size: 3864(H) x 2228(V)
    • Holder: M12 (S-Mount)
    • FOV: TBD
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5%
    • Operating Temperature Range: -20°C to 70°C
    • Power requirements: TBD
    • Size in mm (l x b):
      • Camera module: 30 x 30 mm
      • Deserializer board: 80.8 x 57.5 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Launched on: launching date
  • * - please contact camerasolutions@e-consystems.com for more details.
 Bullat Arrow  Datasheet

Download Full HD USB Camera Documents

Linux camera driver:

Full-fledged Linux camera driver for NeduCAM80_CUOAGX with NVIDIA® Jetson AGX Orin™ / AGX Xavier™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.

  • Supported Jetpack & L4T Version
    • Jetson AGX Orin™ / AGX Xavier™ - JetPack 5.1.1 L4T35.3.1
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • * - For External trigger support Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
NeduCAM80_CUOAGX - Customization and Porting Services for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NeduCAM80_CUOAGX on any application platform as per customer requirements.

NeduCAM80_CUOAGX - Customization:

e-con provides customization, development and porting services for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
