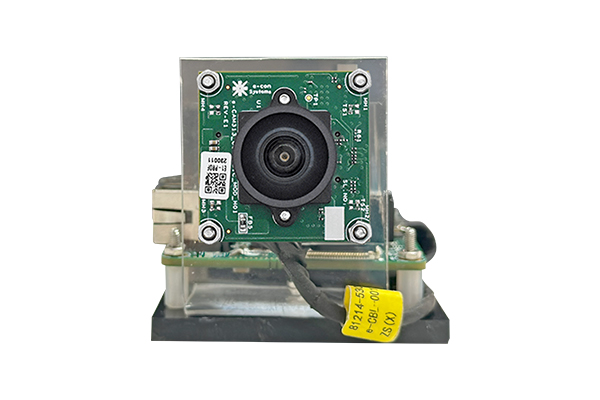

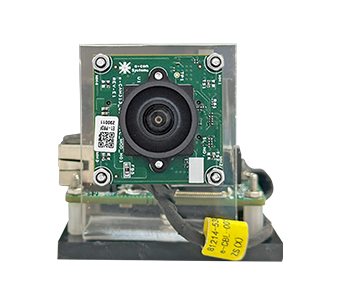

e-CAM31_CUHSB is a 3MP camera designed for seamless integration with NVIDIA Jetson AGX Thor and AGX Orin™ platforms. Powered by the Sony® ISX031 image sensor with a fine-tuned ISP, it connects via the 10G HSB interface to deliver advanced vision solutions with the ultra-low latency required for real-time AI applications.
With its subpixel technique, the ISX031 sensor achieves impressive HDR performance of up to 120 dB, ensuring sharp, reliable images without motion blur even under challenging outdoor lighting conditions.
This compact solution integrates e-con's high-performance camera module with a custom-designed HSB board featuring an FPGA-based TintE™ ISP. By offloading computationally intensive ISP tasks, it minimizes system latency while freeing the NVIDIA GPU and CPU. This hardware acceleration enables the host processor to focus entirely on complex AI inference and model execution.
- Key features:
-
- Frame Rate: 3MP @ 72fps
- Output Format: YUV 16-bit
- Standard S-mount lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Interface:
-
- Interface: 10G HSB
- Connector: RJ45
- Cable Length: 2m
- Sensor features:
-
- Sensor: ISX031 from Sony®
- Focus Type: Fixed focus
- Focus Distance: 1m to Infinity
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.42"
- Output Format: YUV
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1937 (H) x 1553 (V)
- Array Size: 1937 (H) x 1553 (V)
- Dynamic Range: Max upto 120 dB
- Holder: M12 (S-Mount)
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: TBD
- Operating Temperature Range: TBD
- Typical power consumption: TBD
- Size in mm (l x b x h):
- Camera board: 30mm x 30mm
- HSB board: 55 mm x 50 mm x 1.6 mm
- Miscellaneous:
-
- Compliance: RoHS
* - Please contact camerasolutions@e-consystems.com
- Supported Jetpack & L4T Version :
-
- NVIDIA® Jetson AGX Thor - JetPack 7.0
- NVIDIA® Jetson AGX Orin™ - JetPack 6.0 L4T36.3.0
- Userspace Camera sensor Driver :
-
- Video preview
- Still Image capture
- Camera controls (Exposure, Gain, Framerate, Resolution)
- Sample application with source Code for Linux :
-
- Video Preview
- Still Image capture
| Part Number | Kit Contents | Purchase |
|---|---|---|
| e-CAM31_CUHSB_CHLC_1H02R1 |
|
|
