e-CAM31_CUONX is a 3MP HDR lowlight MIPI CSI-2 camera is based on Sony® ISX031 CMOS image sensor. This Sony ISX031 camera can be directly connected with NVIDIA® Jetson ORIN NX / ORIN NANO development kits and it uses NVIDIA® on-board Image Signal Processor (ISP) to perform all the image processing. The subpixel technique in this ISX031 sensor aids in an impressive HDR performance of up to 120 dB which ensures reliable images without motion blur even in challenging outdoor light conditions.
e-CAM31_CUONX is an ideal solution for applications such as ADAS, Delivery Robot, Autonomous Vehicles, Autonomous Agriculture Vehicles
- Key features:
-
- Frame Rate: 1920 x 1536 @60 fps, 1920 x 1080 @60 fps
- YUV (NV12) Streaming
- Standard M12 lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Frame Rate: 1920 x 1536 @60 fps, 1920 x 1080 @60 fps
- Interface:
-
- Interface: MIPI CSI-2
- Connector: FPC flex cable
- Cable Length: 15cm
- Module features:
-
- Sensor: ISX031 from Sony®
- Focus Type: Fixed focus
- Focus Distance: 1m to Infinity
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.42"
- Output Format: UYVY
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1937 (H) x 1553 (V)
- Dynamic Range: Max upto 120 dB
- Lens Holder: M12 (S-Mount)
- FOV: TBD
- Electrical & Mechanical:
-
- Operating Voltage: 3.3 V +/- 5%
- Operating Temperature Range: -30°C to 70°C
- Power requirements: TBD
- Size in mm (l x b ): 30 x 30 mm
- Miscellaneous:
-
- Compliance: RoHS
Linux camera driver:
The e-CAM31_CUONX is a 2-lane and 4-lane MIPI CSI-2 camera and it requires a custom camera driver for NVIDIA® Jetson Orin Nano™ / NVIDIA® Jetson Orin™ NX Developer Kit. e-con Systems™ provides the camera driver along with the camera board.
- Supported Jetpack & L4T Version
-
- NVIDIA® Jetson™ ORIN NX / Orin nano - JetPack 6.0 L4T36.3.0
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Sample application with source Code for Linux:
-
- Video Preview
- Still Image capture at selected resolutions
- Camera Controls: TBD
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
- 3MP ISX031 MIPI Camera Module

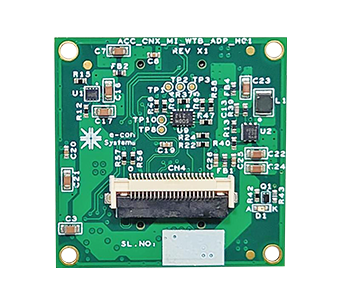

- Adaptor board
- Flex Cable (15 cm)
- Linux Driver & Sample Application
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM31_CUONX - Customization for other Application Processor platforms:
e-con provides customization for e-CAM31_CUONX on any application platform as per customer requirements.
e-CAM31_CUONX - Customization:
e-con provides customization for the following requirements:
- PCB form-factor customization for any shape, connector and orientation
- Lens holder customization
- For C/CS mount lens holder
- Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
- Please contact camerasolutions@e-consystems.com for customization requirements.
