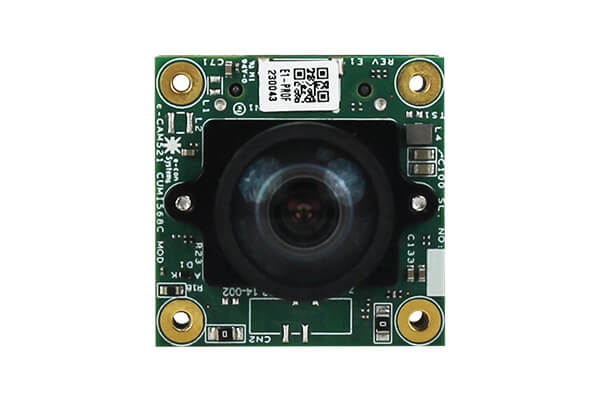

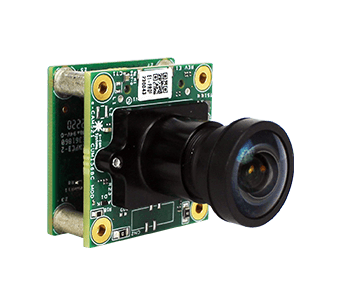

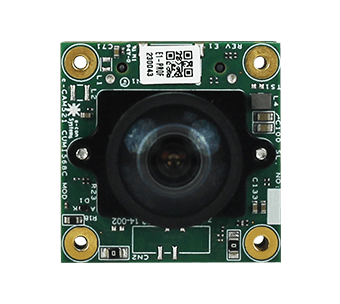

e-CAM521_CUMI568C_MOD - 5MP Sony Pregius S IMX568 Global shutter Camera Module

Highlights:

  • 5MP camera based on Sony Pregius S IMX568 sensor
  • Global Shutter
  • 5MP @ 79fps
  • High Sensitivity
  • Supported interfaces - GMSL / MIPI

Samples Price

Documents

Evaluate e-CAM521_CUMI568C_MOD with,

The e-CAM521_CUMI568C_MOD is a 5MP camera module built around the impressive 1/1.8" Sony Pregius S IMX568 Back-side illuminated image sensor. This module features a global shutter, ensuring distortion-free image capture of fast-moving objects. With its high sensitivity and back-side illuminated sensor design, the e-CAM521_CUMI568C_MOD enables shorter exposure times even in low-light conditions. The Sony Pregius S IMX568 sensor offers exceptional quantum efficiency for improved image quality. The smaller pixel size contributes to reduced noise, allowing for higher gain across the entire light spectrum. As a result, this camera module delivers excellent imaging performance, especially for Near-Infrared (NIR) wavelengths.

The e-CAM521_CUMI568C_MOD supports versatile interface options, including GMSL and MIPI, making it suitable for seamless integration into a wide range of applications, including traffic monitoring, factory automation, conveyor monitoring, and automatic number plate recognition (ANPR).

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: 5MP @ 79fps
      Refer pdfDatasheet for complete frame rate details.
    • Output Format - RGB RAW 10-bit/12-bit
    • High-speed MIPI CSI-2 interface
    • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements
  • Sensor features:
    • Sensor: IMX568 from Sony Pregius S
    • Focus Type: Fixed focus
    • Sensor Resolution: 5.1MP
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/1.8"
    • Output Format: RGB RAW 10-bit/12-bit
    • Pixel Size: 2.74 μm x 2.74 μm
    • Lens Holder: M12 (S-Mount)
    • Sensor Active Area: 2472 (H) x 2064 (V)
    • Array Size: 2472 (H) x 2128 (V)
    • FOV: 120°(D), 104.8°(H), 58.7°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V ±5%
    • Operating Temperature Range: -30°C to 75°C
    • Typical power consumption: ~702mW
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
 Bullat Arrow  Download e-CAM521_CUMI568C_MOD Documents

Download Full HD USB Camera Documents

Product Name Supported Platforms SAMPLE PRICE
(1 Unit)
e-CAM56_CUOAGX
Kit Contents
  • e-CAM521_CUMI568C_MOD - 5MP Sony Pregius S IMX568 Global shutter Camera Module
  • Adaptor board
  • Base board
  • Micro coaxial cable
  • Lens (optional)
NVIDIA Jetson AGX Orin / Xavier
e-CAM56_CUONX NVIDIA Jetson Orin NX / Orin NANO ContactUs



Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact camerasolutions@e-consystems.com and explain their requirements.

e-CAM521_CUMI568C_MOD - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM521_CUMI568C_MOD on any application platform as per customer requirements.

e-CAM521_CUMI568C_MOD Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/S mount lens holder
  • Supported platforms: NXP i.MX8 Series, NVIDIA Jetson Platforms, Qualcomm QRB5165 and other processor
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

Targeted Applications

  • Traffic Monitoring System

  • Factory Automation

  • Conveyor Monitoring Cameras

  • Automatic Number Plate Recognition (ANPR)
