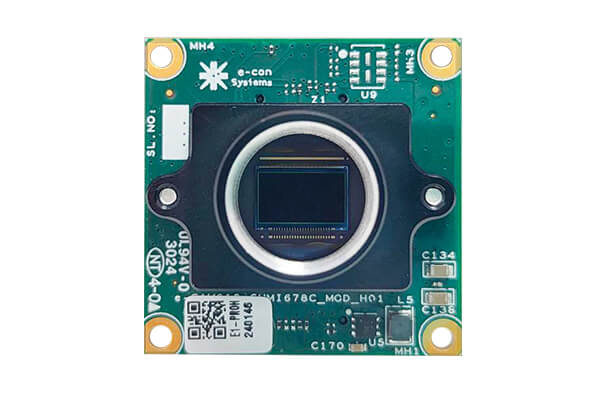

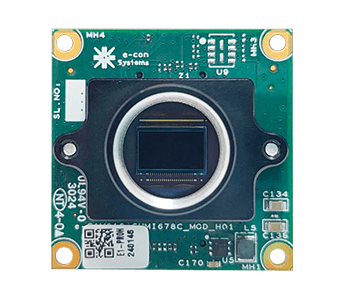

The e-CAM810_CUMI678C_MOD is a high-performance camera module powered by the Sony® STARVIS 2 IMX678 1/1.8" CMOS rolling shutter sensor, offering exceptional low-light performance and enhanced sensitivity to Near Infrared (NIR) light. This 8 MP sensor delivers high-quality images with a resolution of 3840x2160, making it suitable for applications requiring both visible and NIR imaging.
Built for a variety of demanding applications, the e-CAM810_CUMI678C_MOD captures sharp and detailed images even in low-light environments, making it an ideal solution for industries such as security, surveillance, automotive, and industrial inspection.
Enhanced Low-Light Performance
Superior NIR Sensitivity
High Resolution
Sony® Starvis 2
| Product Name | Interface | Supported Platforms | Max no. of Cameras | Documents | Sample Price |
|---|---|---|---|---|---|
RouteCAM_CU86_IP67 |
GigE | X86 | 1 |
|
|
| e-CAM86_CUONX | MIPI CSI-2 | NVIDIA Jetson Orin NX | 1 |
|
|
| e-CAM86_CUOAGX | MIPI CSI-2 | NVIDIA Jetson AGX Orin | 1 | - |
|
| e-CAM86_CUQRB5 | MIPI CSI-2 | Qualcomm QCS6490 / QCS8550 / QRB5165 |
1 | - |
|
| e-CAM86_CUQRB3 | MIPI CSI-2 | Qualcomm® RB3 Gen 2 Development Kit |
4 | - |
|
Module Feature :
| Module Features | |
|---|---|
| Sensor | Sony® Starvis 2 IMX678 |
| Focus Type | Fixed Focus |
| Resolution | 8.4MP |
| Chroma | Color |
| Shutter Type | Rolling Shutter |
| Optical Format | 1/1.8" |
| Output Format | RGB RAW 10-bit/12-bit |
| Pixel Size | 2.0 μm x 2.0 μm |
| Sensor Active Area | 3856 (H) x 2176 (V) |
Key Features :
| Key Features | |
|---|---|
| Frame Rate | 4K @ 72fps |
| Output format | RGB RAW 10-bit/12-bit |
| Compliance |
|
| Electrical and Mechanical | |
| Operating Voltage | 3.3V ±5% |
| Operating Temperature Range |
|
| Typical Power Consumption (W) |
|
| Size in mm (l x b) |
|
e-CAM810_CUMI678C_MOD Documents
