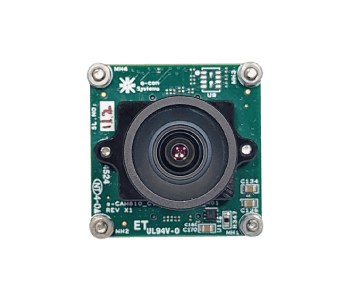

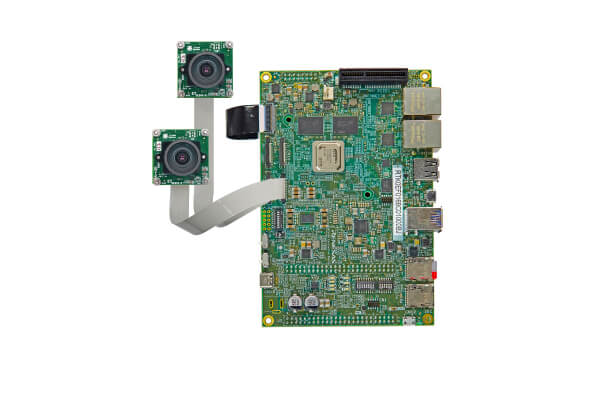

e-CAM86_CURZH - 8MP (4K) Sony® Starvis 2 IMX678 Camera for Renesas RZ/V2H

• Key features:
• • Frame Rate: Streams 8MP @ 30fps, FullHD @ 60fps
    Refer Datasheet for complete frame rate details.
  • High speed 4-lane MIPI CSI-2 interface
  • Standard M12 lens holder for use with customized optics or lenses for various applications
  • Lightweight, versatile, and portable multi-board solution
• Interface:
• • Interface: 4-Lane MIPI CSI-2
  • Connector: 22-pin FPC connector (opposite side)
  • Cable Length: 15cm
• Sensor Features:
• • Sensor: Starvis2 IMX678 from Sony®
  • Focus Type: Fixed focus
  • Sensor Resolution: 8MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/ 1.8"
  • Output Format: RAW Bayer 12-bit
  • Pixel Size: 2.0 μm x2.0 μm
  • Sensor Active Area: 3840 (H) x 2160 (V)
  • Holder: M12 (S-Mount)
  • FOV: 113.54°(D), 98.79°(H), 54.94°(V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 3.3V +/- 5%
  • Operating Temperature Range: -30°C to 85°C
  • Typical power consumption - ~ 0.88902W
  • Size in mm (l x b): 30 x 30 mm
  • Board Weight: 24Grams
• Miscellaneous:
• • Compliance: RoHS

This camera can also be utilized by any V4L2 application.

• Supported Kernel Version
• • Renesas RZ/V2H - AI SDK v5.20 / Kernel 5.10
• Linux camera driver:
• • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

Kit Contents

• e-CAM810_CUMI678C_MOD - Ultra low-light MIPI camera module with lens
• Adaptor board
• FPC cable (15cm)

Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
