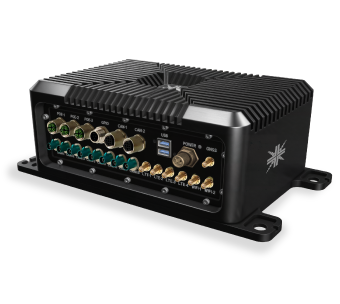

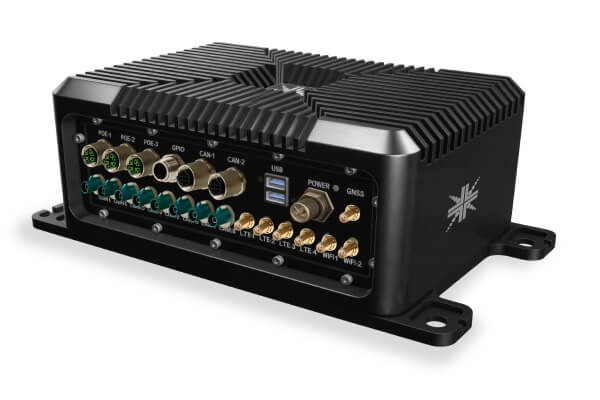

e-con Systems’ Orin NX/Nano based Edge AI Vision Box

e-con Systems’ Orin NX/Nano-based vision box is a robust, production-ready compute platform built for mobility and AI vision applications. Powered by NVIDIA® Jetson Orin NX and Orin Nano modules, it combines advanced AI processing, multi-sensor integration, wide operating range and industrial-grade reliability—making it ideal for real-time perception in dynamic environments.

The vision box supports multiple sensor types, interfaces, and AI frameworks, empowering developers to accelerate edge AI applications such as indoor/outdoor robots, AMRs, Smart DVR, intelligent video analytics, and more.

Why choose e-con’s Orin NX/Nano-based Vision Box?

01

High-performance edge AI compute

Harness NVIDIA Ampere GPU architecture with up to 1024 CUDA cores and 157 TOPS (SUPER mode) AI performance, optimized for advanced vision workloads.

02

MCU-based smart power management

MCU handles overall system power management, including startup and shutdown sequencing for Jetson and peripherals, support for low-power operational modes, and event handling for sleep, wake-up, and soft reboots—ensuring reliable and efficient operation in the field.

03

Multi-sensor fusion

Synchronize inputs from RADAR, LiDAR, cameras, IMUs, and other sensors, enabling real-time decision-making in robotics, mobility, and autonomous systems.

04

Industrial-grade design

With an IP66-rated enclosure, wide temperature tolerance, this solution is ready for field deployment in harsh industrial and outdoor environments.

05

Extensive camera compatibility

Easily integrate e-con Systems’ wide portfolio of cameras, allowing users to choose the right imaging solution tailored to their application requirements.

06

Flexible connectivity

Equipped with dual GbE with PoE, USB3.2, HDMI, wireless modules (Wi-Fi/LTE/GNSS/e-SIM), it supports versatile deployment scenarios.

Specifications

Feature Category Specification Details
Processing Unit (CPU) Jetson Orin NX 16GB
GPU NVIDIA Ampere architecture with 1024 CUDA cores
AI Performance Up to 157 TOPS
Camera 8 x GMSL2 Cameras
Storage 256GB SSD preinstalled. *Expandable.
Ethernet 3 x 1GbE with PoE
USB 2 x USB3.2 Gen 1 port
Operating Range -20 °C to +65 °C / -40 °C to +85 °C *
BSP Jetpack 6 and higher
Storage Temperature -40 °C to +85 °C
IP Rating IP66
Display HDMI
IMU 6-axis IMU
Input Voltage 8V – 36V
Power Management MCU
Sensor Fusion Synchronize different sensors on board (RADAR, LIDAR, Cameras, IMU etc.,)
CAN 2 x CAN isolated
Network WiFi, LTE, GNSS
* - This is based on demand

Target Applications

Humanoids & Autonomous Mobile Robots
Autonomous Mobile Robots (AMR)
Smart City & Infrastructure
Intelligent Transport Systems (ITS)
Industrial Automation
Industrial Automation
