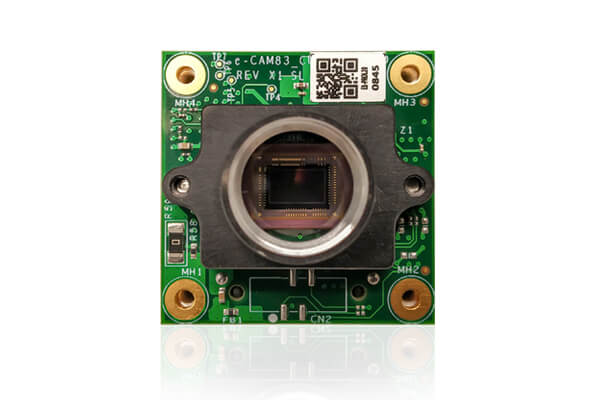

e-CAM83_CUMI415_MOD - Sony STARVIS™ IMX415 Low light Camera Module

e-CAM83_CUMI415_MOD is a 8MP Ultra-lowlight MIPI CSI-2 camera module capable of streaming 4K @ 90 fps. This 4K camera module is based on SONY STARVIS™ IMX415 CMOS image sensor. Its low light sensitivity delivers exceptional clear color images even at extremely low light or even no light (nearly 0 lux) conditions. It is capable of streaming high frame rate (90 fps) at 4K (3840 x 2160) resolution. This 4K MIPI camera is suitable for applications requiring high level of image recognition and detection, which makes it suitable for intelligent video analytics (IVA) purposes. Read More »

Evaluate e-CAM83_CUMI415_MOD with,

  • 8MP SONY STARVIS™ Raw Bayer camera with 4-lane MIPI CSI-2 interface.
  • 1/2.8" Optical Form-factor.
  • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements.
  • RGB RAW 10-bit/12-bit data per pixel
  • Maximum Image Transfer Rate
  • Resolutions 4-Lane MIPI Solution
    (NVIDIA® Jetson AGX Xavier)
    2-Lane MIPI Solution
    (NVIDIA® Jetson Xavier™ NX)
    1080P (1920 x 1080) 90 fps 70 fps
    4K UHD (3840 x 2160) 90 fps 44 fps
  • Operation Temperature Range : -30° to 70° C
  • Power consumption: ~690mW
  • Small form-factor pluggable camera module with S-mount lens holder
  • 30mm x 30mm size. (Height depends on the Lens)
  • Compliance
    • FCC
    • RoHS
  • Launched onlaunch date

Sensor: 1/2.8" Optical format SONY STARVIS™ IMX415 CMOS Image sensor

Focus Type:Fixed focus

Resolution:8MP

Pixel size:1.45 µm x1.45 µm

Sensor Active Area:3864H x 2192V

G sensitivity:2376mV for HCG and 921mV for LCG

Output Format: RGB RAW 10/12-bit

Shutter type:Electronic Rolling Shutter

Holder:M12 (S-Mount)

DFOV :Full HD - 131°(with the lens provided by e-con)

Download e-CAM83_CUMI415_MOD Documents:

pdf e-CAM83_CUMI415_MOD - 8MP Camera Module Datasheet

Evaluation Kit:

1. ARM Based Solution (NVIDIA® Jetson Xavier™ NX/NANO Dev Kit)

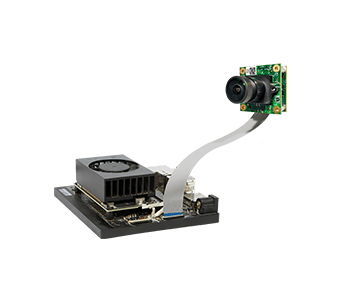

e-CAM80_CUNX - 8MP MIPI Camera Board (Requires NVIDIA® Jetson Xavier™ NX/NANO Dev Kit):

The MIPI Camera daughter card (e-CAM80_CUNX) can be bought by customers choosing to evaluate the e-CAM83_CUMI415_MOD camera solution with a direct interface on the NVIDIA® Jetson Xavier™ NX/NANO Developer Kit.

US$149
Buy online

Excluding Shipment Charges

2. PC Solution

e-CAM82_USB - Sony STARVIS™ IMX415 4K Ultra-HD USB Camera:

Customers who own platforms that support USB 2.0 and are interested in evaluating the 8 MP Autofocus USB camera module can directly buy the (e-CAM82_USB) from e-con Systems.

US$129
Buy online

Excluding Shipment Charges

Customers interested in customizing the same camera module or planning to use a different camera/sensor module can contact sales@e-consystems.com and explain their requirement.

e-CAM83_CUMI415_MOD - Customization for other Application Processor

e-con provides customization for this e-CAM83_CUMI415_MOD on any application platform as per customer requirements.

e-CAM83_CUMI415_MOD Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/CS mount lens holder
  • Driver development for any OS: Android
  • Interfacing with any Application Processor : Freescale i.MX8, NVIDIA Jetson TX2/Xavier and any other processor
  • Camera and ISP features customization based on specific requirements

Please contact sales@e-consystems.com for customization requirements.

SAMPLE PRICE

contact e-CAM83_CUMI415

Image taken at 0.4 lux using
e-CAM83-CUMI415_MOD with NVIDIA® Jetson Xavier NX

IR Image captured with See3CAM_12CUNIR

Click to zoom

»  Smart City

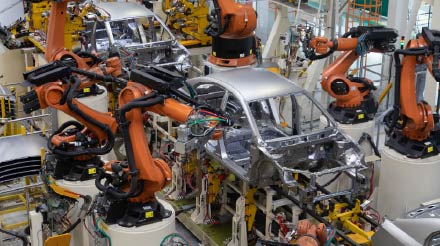

»  Quality Inspection
