qSmartAI80_CUQ610 - Qualcomm® Edge AI Vision Kit
Qualcomm® QCS610 SoC & Sony IMX415 4K ultra low light camera

qSmartAI80_CUQ610 is a ready to deploy AI vision kit based on the Qualcomm® QCS610 processor with powerful AI processing capabilities. This Qualcomm vision kit comprises of e-con's Sony STARVIS IMX415 based 4K MIPI CSI-2 camera module, a VVDN SoM based on Qualcomm® QCS610 SoC, and a carrier board.

This AI vision kit comes with a small form factor and is optimized for excellent power and thermal efficiency. This makes the AI camera kit suitable for compact and power-hungry embedded systems. Also, it can perform all the image processing and analytics indigenously without the connectivity or power of the cloud.   Read More »

  • System:
    • Processor: Qualcomm® QCS610/410 SoC *
    • Qualcomm® Kryo™ 460 CPU
      • Kryo Gold: Dual high-Performance cores 2.2 GHz
      • Kryo Silver: Hexa low-power cores 1.8 GHz
    • Qualcomm® Adreno™ GPU 612 with 64-Bit Addressing; 845 MHz
    • 4GB LPDDR4X SDRAM, 1866 MHz
    • 16GB eMMC
  • Camera:
    • 4K ultra low light camera based on Sony Starvis IMX415 sensor
  • Audio:
    • Low power stereo codec with headphone out
    • Two 2-bit MI2S port, One SLIMbus interface for BT audio, One single lane soundwire interface
  • Network:
    • Connectivity: Wi-Fi 2.4GHz/5Ghz, bluetooth, ethernet
    • RF Interface: 1 x U.FL, 50 ohm coaxial connectors
  • Interfaces:

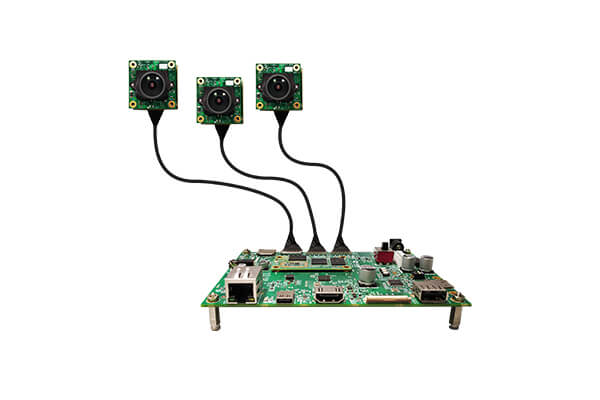

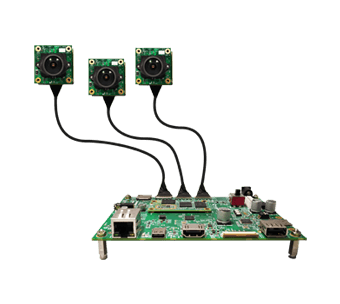

    • Three 4-lane MIPI CSI for camera interfaces
    • MIPI DSI One 4-lane MIPI DSI display interfaces
    • 1xUSB3.1,USB2.0(Type C) 1x USB 2.0 (Host only)
    • One 4-bit Secure digital interface (SDIO)
  • Power Supply:
    • 12V DC
  • Dimension in mm:
    • l x b: 55 mm x 35.5 mm (SOM)
    • l x b: 140 mm x 100 mm (Carrier Board)
    • l x b: 30 mm x 30 mm (Camera board)
  • Board Weight :
    • Development kit : 99 Grams
    • Development kit + Camera (without lens) : 113.5 Grams
    • Development kit + Camera (with lens) : 119.5 Grams
  • Compliances:
    • RoHS
  • Launched on:launch date
  • * - The default vision kit comes with QCS610 based SoM. Please write to camerasolutions@e‑consystems.com in case you are looking for a QCS410 based solution.

Sensor:Sony STARVIS® IMX415

Focus Type:Fixed focus

Resolution:4K UHD (3840 x 2160)

Output Format:10bit RAW Bayer

Frame Rate:4K @30fps

Optical Format:1/2.8"

Shutter Type:Electronic rolling shutter

Pixel size:1.45 µm x1.45 µm

Holder:M12 (S-Mount)

DFOV:115.90° (with the lens provided by e-con)

Download qSmartAI80_CUQ610 - Technical Documents:

 pdf  qSmartAI80_CUQ610 Datasheet and Getting Started User Manual

 pdf  qSmartAI80_CUQ610 Lens Datasheet

 pdf  qSmartAI80_CUQ610 Gstreamer Usage Guide

 pdf  e-CAM83_CUMI415_MOD_H02R1 Module Datasheet

 pdf  VVDN_ESOM_QCS610 SOM Datasheet

 pdf  VVDN_ESOM_QCS610 EVK User Guide

Download Qualcomm Camera Documents

gstreamer based camera application for

  • HDMI streaming (NV12)
  • Network streaming over Ethernet and WIFI (H.264 encoded)
  • Snapshot image capture in JPEG and RAW Bayer
  • H.264 encoded video recording
  • Modifying camera features like White balance, Gain, Exposure etc.

AI software stacks

  • Qualcomm neural processing SDK for AI
  • Neural network API (TFLite models)
  • GStreamer plugin (DLC models)
  • GStreamer TFLite plugin

Please contact sales@e-consystems.com for all necessary customization services for this vision AI development kit including camera, carrier board, and software customization.

  • VVDN SOM based on Qualcomm® QCS610 SoC
  • Carrier board
  • SONY IMX415 camera with lens
  • Micro coaxial cable
  • USB 3.1 Gen 1 Type-A to Type-C cable (1m)
  • 12V 3A AC to DC wall mount power adapter

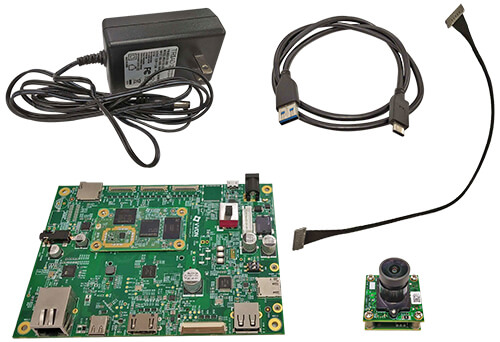

Kit Contents

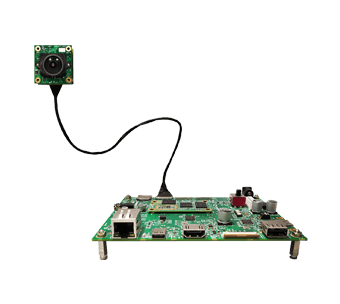

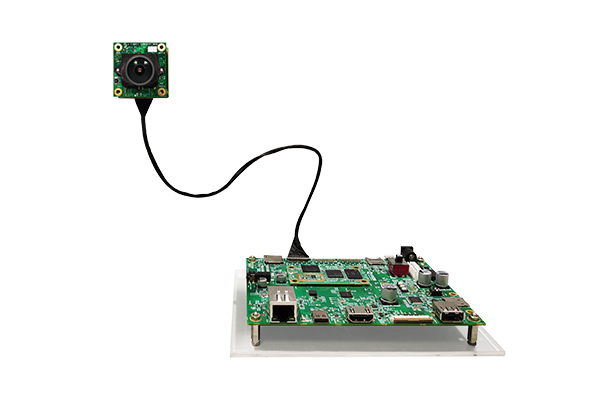

Fig 1: qSmartAI80_CUQ610 - Qualcomm® Edge AI Vision Kit

Please contact sales@e-consystems.com for all necessary customization services for this vision AI development kit including camera, carrier board, and software customization.

  • Do you need to connect other e-con cameras?
  • Do you need assistance in choosing lens?
  • Do you need BSP customization?
  • Do you need different peripherals in carrier board?
  • Do you need to develop a ML and DL algorithms?

Please contact us for all necessary customization services for this vision AI development kit including camera, carrier board, and software customization.
