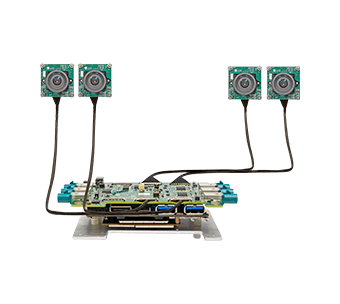

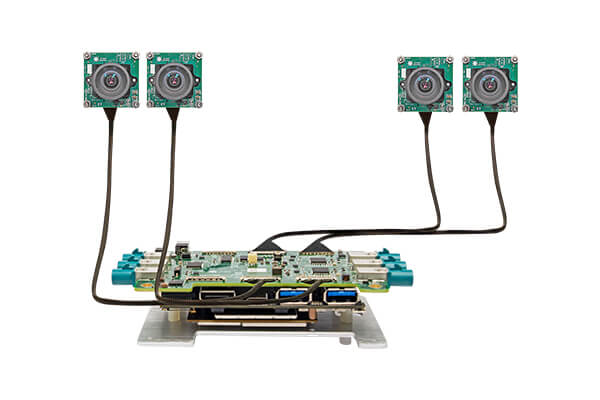

e-CAM86_CUQRB3 - 8MP Sony® Starvis 2 IMX678 Camera for Qualcomm® RB3 Gen 2 Development Kit

Highlights:

  • Houses e-CAM810_CUMI678C_MOD - 8MP Sony® STARVIS2 IMX678 Camera Module
  • Enhanced Low light performance
  • Superior NIR sensitivity
  • Plugs into Qualcomm® RB3 Gen 2 Development Kit
  • Uses Qualcomm's Proprietary ISP for Image Processing
  • High-speed MIPI CSI-2 interface to connect with the CPU

Sample Price

ContactUs

e-CAM86_CUQRB3 is a 8MP ultra-low-light MIPI CSI-2 camera built around the Sony STARVIS 2 IMX678 CMOS image sensor, designed to deliver superior imaging performance in both visible and low-light conditions. This advanced 4K camera is specifically engineered for seamless integration with Qualcomm® RB3 Gen 2 Development Kit. It utilizes Qualcomm on-board Image Signal Processor (ISP), fine-tuned by e-con Systems®, to achieve excellent image quality.

The e-CAM86_CUQRB3 camera's enhanced near-infrared (NIR) sensitivity ensures superior performance in low-light environments. This camera is ideal for applications such as sports broadcasting and analytics, biometrics, and smart surveillance.

  • Key features:
    • Frame Rate:
      • Full HD @ 72 fps & 8MP (4K) @ 30 fps
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: Micro coaxial cable with I-PEX (CN2) connector
    • Cable Length: 30cm
  • Module features:
    • Sensor: Starvis2 IMX678 from Sony®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8 MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.8"
    • Output Format: RAW Bayer 10/12-bit
    • Pixel Size: 2.0 μm x2.0 μm
    • Sensor Active Area: 3840 (H) x 2160 (V)
    • Holder: S-Mount
    • FOV: 120° (D), 104° (H), 58.7° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to 75°C
    • Power requirements: 0.759W
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • gstreamer based camera application for:
    • Camera streaming over Ethernet and WIFI (H.264 encoded)
    • HDMI streaming (NV12)
    • Snapshot image capture in JPEG and RAW Bayer
    • H.264 and H.265 encoded video recording
  • Camera Controls:
    • Denoise
    • Gain
    • Exposure etc.
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
  • e-CAM810_CUMI678C_MOD - Ultra low-light MIPI camera module with lens
  • Adaptor board
  • Baseboard
  • Micro coaxial cable
  • Lens (optional)
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM86_CUQRB3 - Customization for other Application Processor platforms:

e-con provides customization for e-CAM86_CUQRB3 on any application platform as per customer requirements.

e-CAM86_CUQRB3 Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization
  • For C/CS mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
  • Please contact camerasolutions@e-consystems.com for customization requirements.
