e-CAM181_CUNX - 18 MP camera for NVIDIA® Jetson Xavier™ NX FLOYD carrier board

e-CAM181_CUNX is an 18 MP camera based on the 1/2.3-inch AR1820 sensor for Diamond Systems' FLOYDNX carrier board.

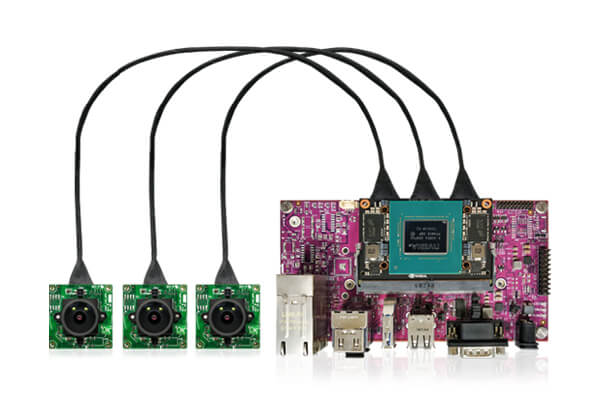

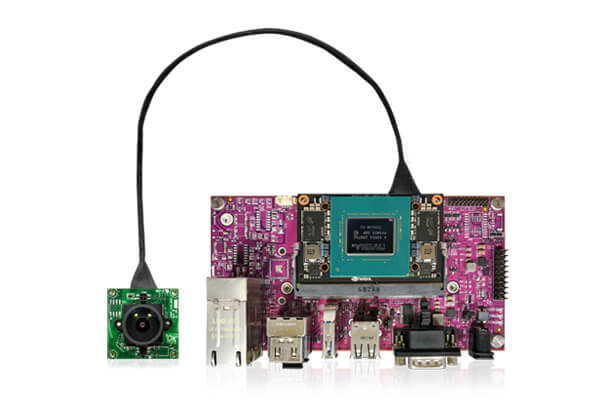

The solution allows customers to connect up to three 4-lane MIPI camera modules on the FLOYD carrier board housing NVIDIA® Jetson Xavier™ NX.

e-CAM181_CUNX is ideal for smart surveillance systems and digital microscopes owing to its 18 MP resolution, multi-level zoom, and NVIDIA® Jetson platform support.

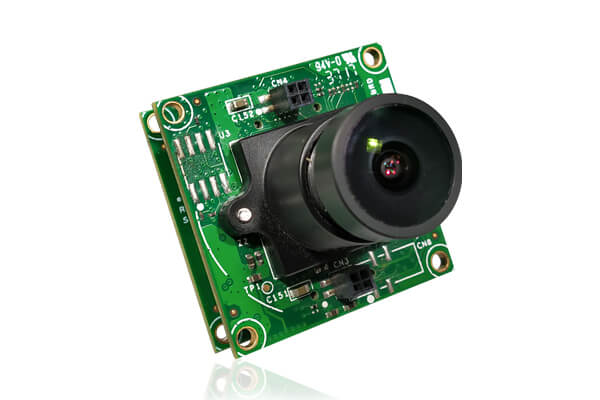

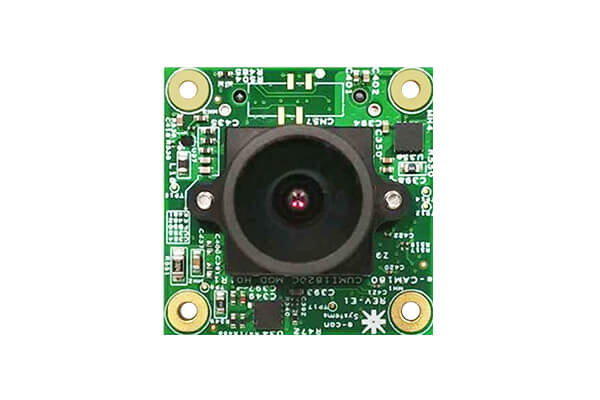

  • Houses e-CAM180_CUMI1820_MOD - 18 MP Camera Module with S-mount lens holder
  • Multi board solution
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Plugs in Diamond Systems FLOYD carrier board containing NVIDIA® Jetson Xavier™ NX modules.
  • Control for individual cameras and number of cameras to be streamed are selectable
  • NVIDIA® Jetson ISP
  • Frame Rate: Streams 18 MP @ 13 fps - Refer pdfDatasheet for complete frame rate details.
  • Operating Voltage : 3.3V +/- 5%
  • Linux camera driver (V4L2) for 18 MP MIPI CSI-2 camera module
  • Operating Temperature Range: -30°C to 70°C
  • Power Consumption:
    • Max: 2.54 W
  • Board Weight :
    • 16 Grams (with lens)
    • 10 Grams (without lens)
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Lightweight, versatile, and portable design
  • Compliance
    • FCC
    • RoHS
  • Launched on: 16-nov-2021

Camera Module Features:

Sensor:AR1820HS Color sensor from ON Semiconductor

Sensor Resolution:18 MP

Optical Format:1/2.3"

Sensor type:18 MP CMOS Sensor with Color output

Shutter type:Rolling Shutter

Focus Type:Fixed focus

Output Format:12-bit Raw format

Pixel size:1.25μm x 1.25μm pixel

Sensor Active Area:4912H x 3684V

Responsivity:0.62 V/lux-sec

SNR:36.3 dB

Dynamic Range:65.8 dB

Array Size:4912 x 3684 pixels

DFOV :18.0 MP - 133.9° (with the lens provided by e-con)

The e-CAM181_CUNX is a MIPI camera and it requires a custom camera driver for Diamond Systems FLOYD carrier board containing NVIDIA® Jetson Xavier™ NX modules. e-con Systems provides the camera driver along with the camera board.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson Xavier™ NX - JetPack 4.5.1 L4T32.5.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Sharpness
    • Saturation
    • Gamma
    • Gain
    • Exposure (Manual and Auto)
    • White Balance (Manual and Auto)
    • Digital Zoom

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM181_CUNX - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM181_CUNX Datasheet

pdf e-CAM181_CUNX Lens Datasheet

 Bullat Arrow  user Manual

pdf e-CAM181_CUNX Getting Started Manual

pdf  e-CAM181_CUNX Developer Guide

pdf  e-CAM181_CUNX Argus Camera Build and Install Guide

pdf  e-CAM181_CUNX GStreamer Usage Guide

pdf  e-CAM181_CUNX Linux App User Manual

pdf  e-CAM181_CUNX Release Package Manifest

Download Selected Documents

Kit Contents:

SAMPLE PRICE

launch offer icon
USD 169 139
Buy Camera online

Excluding Shipment Charges

Offer Closes on 10th Dec 2021

»  Smart Surveillance Systems

»  Smart Traffic Management Systems

»  Parking Lot Management Systems

»  Smart Streets Lights

»  Automatic Number Plate Recognition Systems

»  Digital Microscopes
