e-CAM20_CUTDA4 - AR0234 Global Shutter Camera for Texas Instruments® SK-TDA4VM

e-CAM20_CUTDA4 is a Full HD custom lens global shutter camera that can be readily integrated with Texas Instrument's SK-TDA4VM - TDA4VM processor starter kit. This embedded camera solution is designed with an aim to provide a complete vision solution for product developers building Edge AI based embedded vision systems. This camera is based on the 1/2.6" AR0234CS CMOS image sensor from onsemi®. This global shutter camera uses the MIPI CSI-2 interface to connect to Texas Instruments® starter kit.

Being a global shutter camera, e-CAM20_CUTDA4 is perfect to capture fast-moving objects by eliminating rolling shutter artifacts. The camera also comes with external trigger support which makes fusion with external sensors such as LiDAR, IMU, GPS, etc possible. This camera also comes with high SNR (Signal to Noise Ratio) which helps to capture excellent images even in low light conditions. Read More »

Key Features

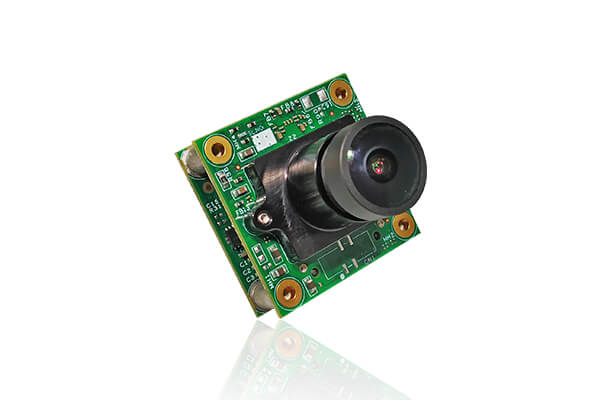

  • Houses e-CAM217_CUMI0234_MOD - Full HD Camera Module
  • Global Shutter
  • High speed 2-lane MIPI CSI-2 interface

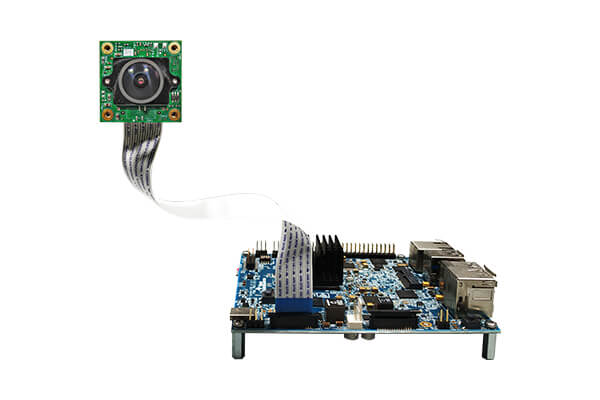

  • Plugs directly into the Texas Instruments® SK-TDA4VM Starter kits
  • On-board ISP for excellent image quality
  • Frame Rate : Streams HD @ 120 fps & Full HD @ 65 fps
    Refer pdfDatasheet for complete frame rate details.
  • Uncompressed UYVY streaming
  • Operating Voltage : 3.3V +/- 5%
  • Operating Temperature Range : - 30°C to 70°C
  • Power consumption : Max 0.92W
  • Size in mm (l x W) : 30 mm x 30 mm
  • Standard M12 lens holder for use with customized optics or lenses for various applications
  • External Trigger is supported
  • Lightweight, versatile, and portable design
  • Compliant
    • FCC
    • RoHS
  • Launched on: launch date

Camera Module Features:

Sensor:AR0234CS Color sensor from onsemi®

Focus Type:Fixed focus

Resolution:Full HD

Optical Format:1/2.6"

Pixel size:3µm x 3µm

Sensor Active Area:1920H x 1200V

Responsivity:56 Ke-/luxsec

SNR:38 dB

Dynamic Range:71.4 dB

Output Format:Uncompressed UYVY format

Shutter type:Global Shutter


Array Size:1920 (H) × 1200 (V)

DFOV :Full HD - 128.2°(with the lens provided by e-con)

e-con Systems provides Gstreamer and V4L2 commands that demonstrate the features of this camera. However, this camera can also be utilized by any V4L2 application.

Linux camera driver:

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image captureCamera controls via IOCTLs
  • Camera Controls
    • Brightness
    • Contrast
    • Sharpness
    • Saturation control
    • Gain
    • Gamma
    • Exposure (Manual and Auto)
    • Horizontal Flip
    • Vertical Flip
    • Digital Zoom
    • Trigger

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM20_CUTDA4 - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM20_CUTDA4 Datasheet

pdf e-CAM20_CUTDA4 Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM20_CUTDA4 Getting Started Manual

pdf e-CAM20_CUTDA4 Developer Guide

pdf e-CAM20_CUTDA4 Gstreamer Usage Guide

Download Selected Documents

Kit Contents

  • e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with Lens
  • Adaptor board
  • FPC cable (15cm)
  • Linux Driver

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
