e-CAM50_CUCRL - 5.0 MP Google Coral Camera

e-CAM50_CUCRL is a 5MP 4-lane MIPI CSI-2 fixed focus color camera for Google Coral development board. This camera is based on 1/2.5" AR0521 CMOS Image sensor from onsemi® with built-in Image Signal Processor (ISP). This high performance ISP helps to bring out the best image quality from the sensor and making it ideal for next generation of AI devices.

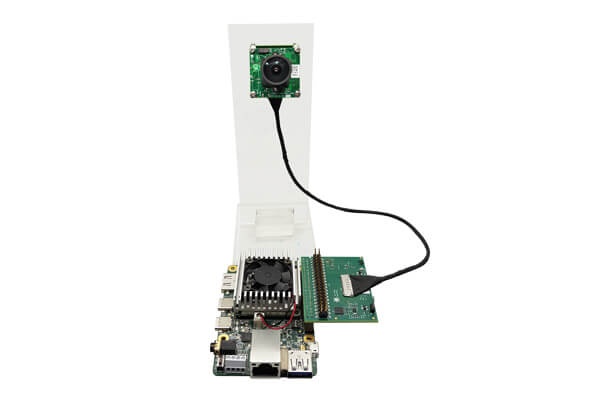

This camera can be directly connected to the camera connector through P1 and J15 on the Google Coral development board. e-CAM50_CUCRL is exposed as a standard V4L2 device and customers can use the V4L2 APIs to access this camera and control the same.

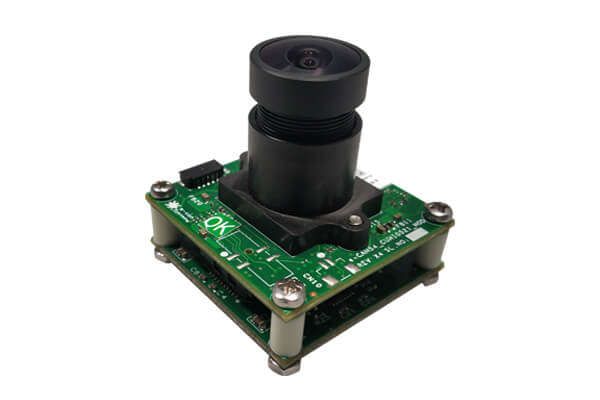

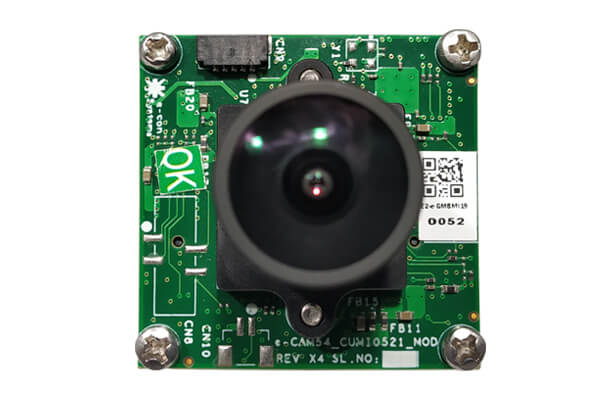

  • Houses e-CAM55_CUMI0521_MOD - 5.0 MP Camera Module with S-mount lens holder
  • Multi board solution
  • High-speed 4-lane MIPI CSI-2 interface to connect with the CPU
  • Plugs in to Google Coral development board
  • Frame Rate:
  • Resolutions UYVY
    VGA (640 x 480) 53 fps
    HD (1280 x 720) 70 fps
    FHD (1920 x 1080) 65 fps
    QHD (2560 x 1440) 38 fps
    5MP (2592 x 1944) 28 fps
  • Operating Voltage: 5V, Current: 232mA
  • Linux camera driver (V4L2) for 5.0 MP MIPI CSI-2 camera module
  • Operating Temperature Range: -30°C to 70°C
  • Power Consumption:
    • Max : 1.160W
    • Min : 0.840W
  • Sample application for image capture & Preview
  • Gstreamer-1.0 support for video recording and network streaming
  • Lightweight, versatile, and portable design
  • RoHS compliant
  • Launched on:launch date

Sensor:AR0521 from onsemi®

Focus Type:Fixed focus / Auto focus*

Resolution:5MP CMOS Image Sensor. 1/2.5" Optical format

Sensor type:5MP CMOS Electronic Rolling Shutter Sensor with Bayer RGB Color Filter Array

Pixel size:2.2 µm x2.2 µm

Sensor Active Area:2592(H) x 1944(V)

Responsivity:18.8 Ke-/luxsec

SNR:40 dB

Dynamic Range:74.3 dB

Output Format:Uncompressed UYVY format

Shutter type:Electronic Rolling Shutter


ISP:On-board high performance ISP

DFOV :5MP - 140.5° (with the lens provided by e-con)

* - Liquid lens option is available for this product and can be provided on request

Linux camera driver:

Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM50_CUCRL on Google Coral development board.

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (both manual and automatic)
    • Digital Zoom

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM50_CUCRL - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM50_CUCRL Datasheet

pdf e-CAM50_CUCRL Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM50_CUCRL Getting Started Manual

pdf e-CAM50_CUCRL Linux App User Manual

pdf e-CAM50_CUCRL Gstreamer Usage Guide

pdf e-CAM50_CUCRL Release Package Manifest

pdf e-CAM50_CUCRL Developer Guide

Download Selected Documents

Kit Contents:

  • Hardware:
    • e-CAM50_CUCRL - 5MP MIPI Camera board (contains Camera module, Adaptor board, Base board, Micro Coaxial Cable and FPC Cable)
  • Software:
    • V4L2 - Linux driver
    • Sample View finder Application with Source Code
  • Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.
