e-CAM130_iMX8M - 4K Camera board for i.MX8 Mini

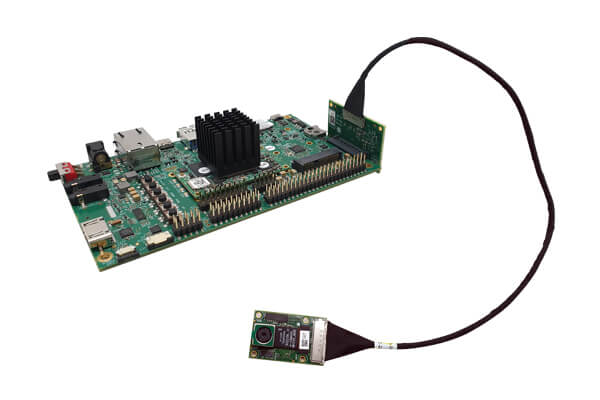

e-CAM130_iMX8M is a 13MP(4K) 4-lane MIPI CSI-2 autofocus color camera board for iMX8 family of processors. The e-CAM130_iMX8M camera board is interfaced directly to the CSI-2 MIPI interface on the Variscite's DART-MX8M/DART-MX8M-MINI Evaluation kit (VAR-DT8McustomBoard). The iHDR (interlaced High Dynamic Range) support helps to capture good quality images in both high and low illumination. e-CAM130_iMX8M also comes with a high-performance Image Signal Processor (ISP) that performs all the Auto functions (autofocus, auto white balance, auto exposure control). Customer who wants to integrate this camera into their end product can directly purchase e-CAM130_MI1335_MOD camera module. This camera can achieve up to 816fps for custom Region of Interest (ROI) resolutions.

Key Features of iMX8 Camera:

  • Houses e-CAM130_MI1335_MOD - 13.0 MP Autofocus MIPI Camera Module
  • Plugs directly in to the Variscite's DART-MX8M/DART-MX8M-MINI Evaluation Kit
  • High speed 4-lane MIPI CSI-2 interface to connect with the i.MX8M/i.MX8M MINI CPU
  • Maximum Image Transfer Rate
  • Resolutions YUY2
    VGA 120 fps
    HD (720p) 80 fps*
    Full HD (1080p) 60 fps
    4K Ultra HD (3840x2160) 15 fps
    13MP (4192x3120) 10 fps
    Custom (ROI) 816 fps**
  • Output Format - YUY2
  • Operating Temperature Range : -30° to 70° C
  • Operating Voltage : 3.3V +/- 5%, Power consumption: ~896mW
  • Board Weight:
    • Camera module with Adaptor board : 4 Grams
    • Base board : 6.5 Grams
    • Coaxial cable : 4 Grams
  • Board Size (L x W) - 47 mm x 30 mm
  • Lightweight, versatile, and portable two-board solution
  • iHDR support
  • RoHS compliant
  • Launched on:launch date
  • * - Frame rate achieved in iMX8M Mini is 68 FPS
  • ** - Not supported by default. Requires firmware customization for higher framerates with custom ROI resolutions.

Camera Module Features:

Sensor:AR1335 from onsemi®

Sensor Resolution and Optical Format:13MP CMOS Image Sensor. 1/3.2" Optical format

Sensor Type:13MP CMOS Electronic Rolling Shutter Sensor

Image Signal Processor:On-board high performance ISP

Output Format:Uncompressed UYVY format

Focus Distance:100mm to Infinity

Sensor Features:

Pixel size:1.1μm x 1.1μm

Sensor Active Area:4208(H) x 3120(V)

Responsivity:4.7 ke-/luxsec

SNR:37 dB

Dynamic Range:69 dB

Shutter type:Electronic Rolling Shutter

Focus Type:Autofocus

Array Size:4208x3120

DFOV: 13M - 74° (with the lens provided by e-con)

The e-CAM130_iMX8M is a MIPI 4-lane camera and it requires a custom camera driver for iMX8. e-con Systems™ provides the camera driver along with the camera board.

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (Manual, Automatic and ROI based Automatic)
    • Focus (Manual, Automatic, Centre based Trigger & Auto, ROI Based Trigger & Auto)
    • Digital Zoom
    • ROI Window
    • iHDR
    • Denoise
    • Focus Marker
    • Exposure Compensation

Download e-CAM130_iMX8M - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM130_iMX8M Datasheet

pdf e-CAM130_iMX8M Lens Datasheet

pdf e-CAM136_MI1335_ADP Datasheet

 Bullat Arrow  User Manual

pdf e-CAM130_iMX8M Getting Started manual

pdf e-CAM130_iMX8M Linux App User manual

pdf e-CAM130_iMX8M Developer Guide

pdf e-CAM130_iMX8M Gstreamer Usage Guide

pdf e-CAM130_iMX8M Release Package Manifest

Download Selected Documents

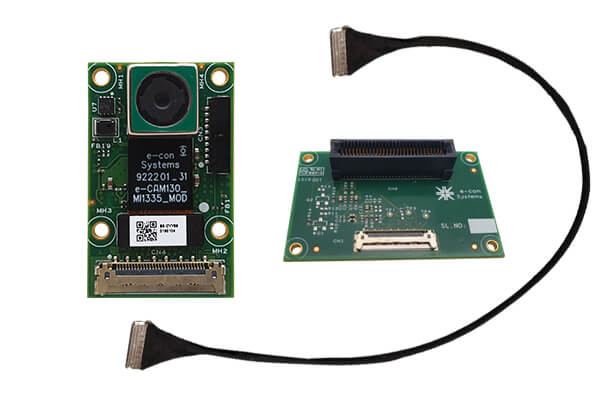

Kit Contents for iMX8 Camera:

  • Hardware:
    • e-CAM130_iMX8M - 13.0 MP MIPI Camera board (contains the e-CAM130_MI1335_MOD camera module, base board, adaptor board and a micro-coaxial cable)
  • Software:
    • Linux:
      • V4L2 - Linux driver source code
      • Sample View finder Application with Source Code
