i.MX6 Micro Development Board - Meissa-I

NXP Logo

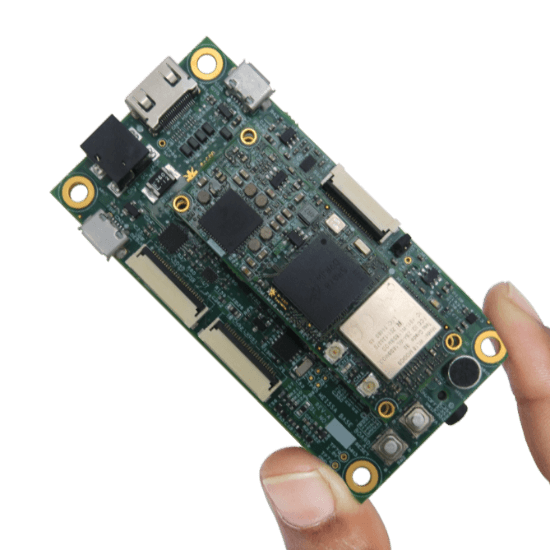

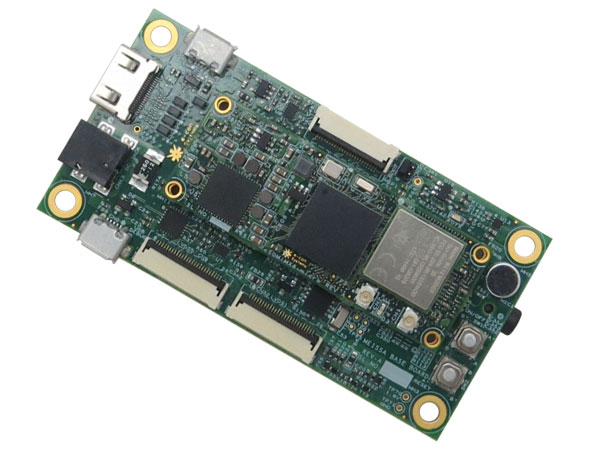

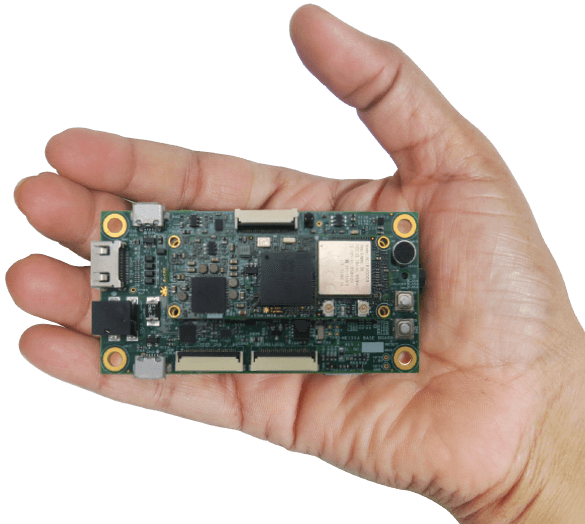

iMX6 Micro Development Board, Meissa-I is a dual board solution that features eSOMiMX6-micro - Computer on Module & carrier board. Meissa-I development board runs Linux and Android Marshmallow.

eSOMiMX6-micro is based on Dual/Quad core ARM® Cortex™-A9 based CPU @ 800MHz/Core. It has 2GB LPDDR2 and 4GB eMMC FLASH (expandable upto 32GB). The eSOMiMX6-micro module also has the Wireless LAN and Bluetooth module.

Meissa-I Development Board comes with mini HDMI to HDMI Cable, USB to serial port cable and 12V Power Supply. It is used in various applications like Wearable, Wireless Streaming, Medical Imaging etc.

Related Blog

Bullat ArrowKnow more about Intel® Joule™ System on Module Alternative - eSOMiMX6 micro ARM SOM

  • eSOMiMX6-micro i.MX6 Micro Computer on Module
    1. NXP-Freescale ARM® Cortex™-A9 i.MX6 Micro processor
    2. 1GB LPDDR2 (expandable upto 2GB)
    3. 4GB eMMC FLASH (expandable upto 32GB)
    4. eSOMgears - Over-the-Air (OTA) Firmware Upgrade Solution  new
    5. 10mA suspend current
    6. Power Management IC
  • Camera
    1. Parallel interface - 10 bit (x2)
    2. MIPI CSI(x1)
  • Display
    1. HDMI 1.4 (x1)
    2. LVDS (x2)
  • Networking
    1. WIFI 802.11 b/g/n & Bluetooth 4.0 BLE
    2. Gigabit Ethernet
  • Serial Ports
    1. 1 Debug Port
  • USB
    1. USB OTG 2.0 (x1)
  • Miscellaneous
    1. I2C
  • SD/MMC Card Support
    1. One 4bit SD Card interface

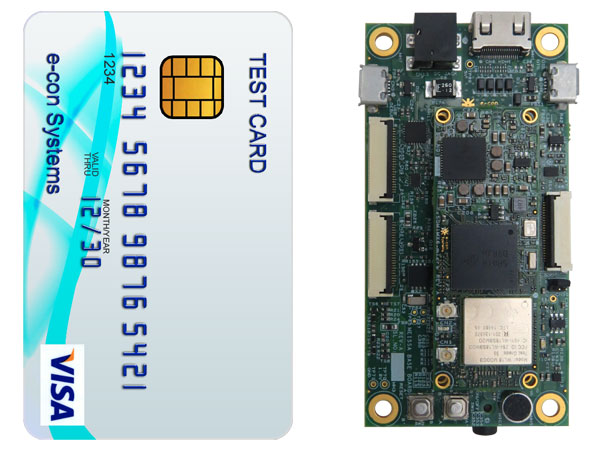

  • Dimension - 80mm (L) x 40mm (B)
  • Power Supply: 12V
  • Temperature Range:
    • 0°C to 70°C (Commercial)
  • Supporting Operating Systems
    1. Linux : Kernel 4.1.15
    2. Android : Marshmallow

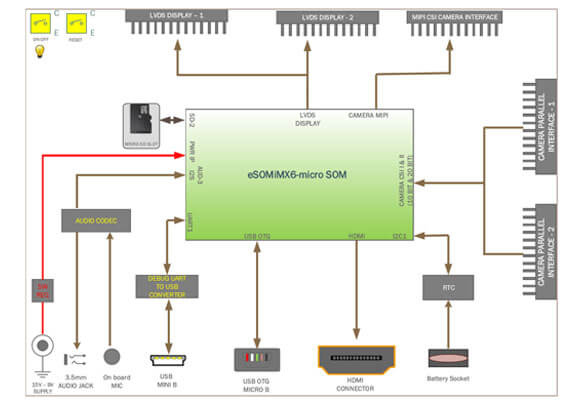

iMX6 Micro SOM block diagram (Meissa-I)

Meissa-I Block Diagram

Please contact sales@e-consystems.com for any customization.

Download Meissa-I Development Board Documents:

pdf   Meissa-I Hardware and Software documents

Meissa-I i.MX6 Micro development board kit contents with Linux:

  • Hardware:
    • eSOMiMX6-micro Module
    • Carrier board (Meissa-I)
    • HDMI to HDMI Cable
    • USB to serial port cable
    • 12V Power Supply

Add on Boards:

13MP Camera board

13.0 MP MIPI Autofocus Camera Board
(ACC-iMX6-m-MI1335CAM)

ACC-iMX6-m-MI1335CAM is a 13MP Camera board for e-con's Meissa-I iMX6 RDK. This AR1335 sensor based Autofocus Camera provides 4-lane MIPI CSI-2 interface.

User Manual
3.4MP MIPI Camera board

3.4 MP MIPI Camera Board
(ACC-iMX6-m-CUMI0330CAM)

ACC-iMX6-m-CUMI0330CAM is a 3.4 MP Custom Lens Low Light Camera Board for e-con's Meissa-I i.MX6 Micro RDK. This AR0330 sensor based Camera provides MIPI-CSI-2 4 lane interface. This is a custom lens Camera board with S-mount interchangeable lens holder.

Frame Rate:
  RGB888
VGA 30 fps
XGA 30 fps
720P 30 fps
1080P 30 fps
3.4MP 30 fps
User Manual
13MP Camera board

13.0 MP MIPI Camera Board
(ACC-iMX6-m-CUMI1820CAM)

ACC-iMX6-m-CUMI1820CAM is a 13MP Camera board for e-con's Meissa-I i.MX6 Micro RDK. This AR1820HS sensor based fixed focus Camera provides MIPI-CSI-2 interface to perform 1080p@30fps streaming. This is a custom lens Camera board with S-Mount lens holder.

User Manual
13MP Camera board

13.0 MP MIPI Camera Board (ACC-iMX6-m-CUMI1335CAM)

ACC-iMX6-m-CUMI1335CAM is a 13MP Camera board for e-con's Meissa-I i.MX6 Micro RDK. This AR1335 sensor based fixed focus Camera provides MIPI-CSI-2 interface to perform 1080p@60fps streaming. This is a custom lens Camera board with S-Mount lens holder.

User Manual

OEM Customization


You can contact sales@e-consystems.com for customization of the Meissa Board
