eSOMiMX6-micro - iMX6 Micro System on Module (SOM)

NXP Logo

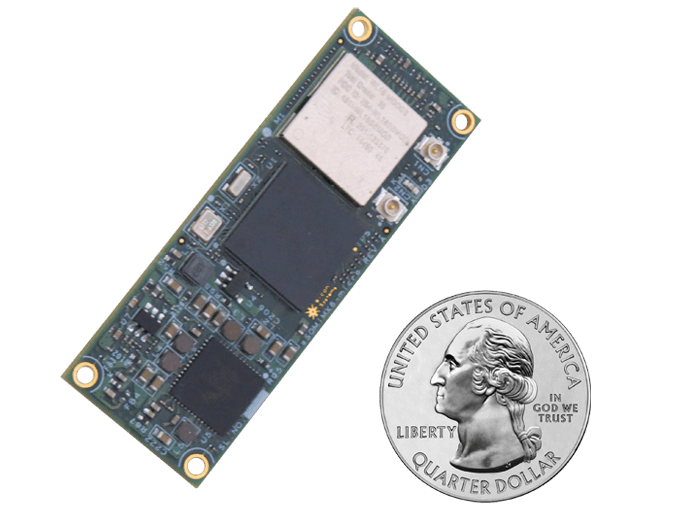

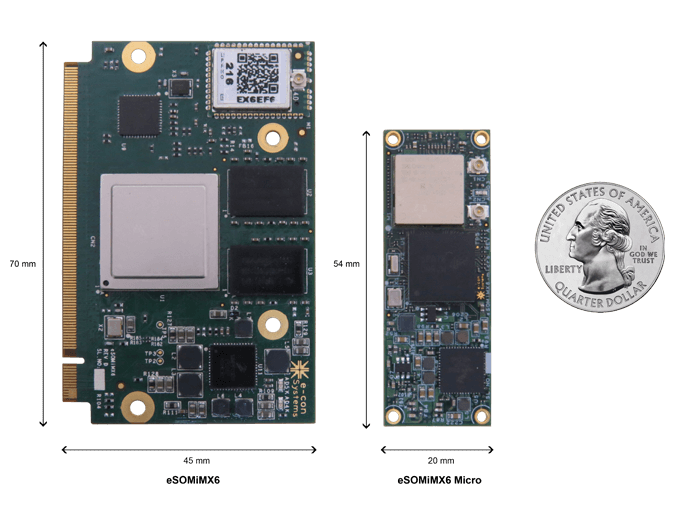

eSOMiMX6-micro is a high performance micro system on module based on NXP/Freescale i.MX6 Quad/Dual Core ARM® Cortex™-A9 in an ultra small form factor of 54mm x 20mm with 10mA in suspend current. This powerful micro SOM can be used in compact medical devices, drones, wearable technology gadgets. eSOMiMX6-micro has iMX6 CPU running up to 800MHZ - Quad Core and Dual Core ARM Cortex-A9, 2GB LPDDR2 and 4GB eMMC FLASH (expandable upto 32GB). eSOMiMX6-micro System on Module also has Wireless LAN and Bluetooth module. This iMX6 Micro SOM supports Linux and Android Marshmallow.

The i.MX6 Micro System on Module (eSOMiMX6-micro) is aimed at reducing the time-to-market for our customers by making use of the stabilized and ready-to-market micro iMX6 modules in their product.

Related Blog

bullatKnow more about Intel® Joule™ System on Module Alternative - eSOMiMX6 micro ARM SOM

    iMX6 Micro SOM – eSOMiMX6-micro Features

  • NXP/Freescale i.MX6 Quad/Dual ARM® Cortex™-A9 based CPU @ 800MHz Core
  • 1GB/2GB LPDDR2
  • 4GB eMMC FLASH (expandable upto 32GB)
  • eSOMgears - Over-the-Air (OTA) Firmware Upgrade Solution  new
  • 10mA suspend current
  • Precertified WiFi - 802.11 b/g/n & Bluetooth 4.0 BLE
  • Power Supply : 3.3V
  • Supporting Operating Systems
    1. Linux : Kernel 4.1.15
    2. Android : Marshmallow
  • Temperature Range:
    • -35°C to 85°C (Industrial)
    • 0°C to 70°C (Commercial)
  • Form Factor : 54mm X 20mm
  • Availability - Until 2028

Interfaces Supported on i.MX6 Micro SOM (eSOMiMX6-micro):

  • Camera
    1. Parallel interface (x2)
    2. MIPI CSI(x1)
  • Display
    1. HDMI 1.4 (x1)
    2. LVDS (x2)
    3. MIPI-DSI (x1)
  • Networking
    1. WIFI 802.11 b/g/n & Bluetooth 4.0 BLE
    2. Gigabit Ethernet
  • USB
    1. USB OTG 2.0 (x1)
    2. USB Host 2.0 (x1)
  • Miscellaneous
    1. SPI (x1)
    2. I2C (x3)
    3. UART 1,2 (with CTS & RTS) (x2)
    4. FLEXCAN (x2)
    5. PCIe Gen 2.0 (x1)
    6. SD/MMC (4bit) (x1)
    7. PWM (x2)
    8. SPDIF IN & OUT (x1)

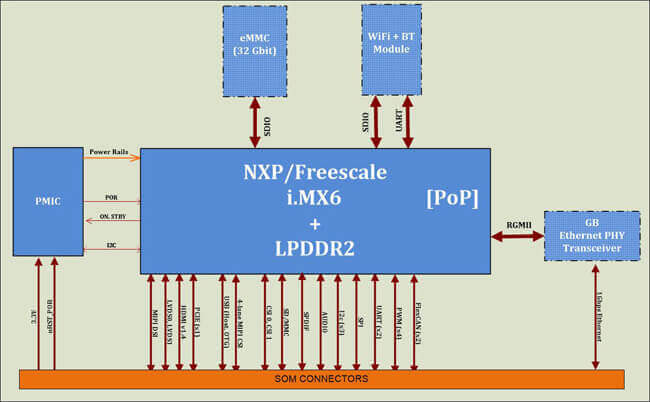

iMX6 Micro SOM block diagram (eSOMiMX6-micro)

eSOMiMX6-micro block diagram

Please contact sales@e-consystems.com for any customization.

iMX6 Micro Rapid Development Kit - Meissa-I

e-con Systems provides rapid development kit - Meissa-I. This development kit features carrier board around eSOMiMX6-micro system on module with support for various peripherals.

The Interfaces supported are shown below :

Audio Codec

USB-OTG

HDMI

Micro SD

LVDS1 / LVDS2 Display

2 Parallel Camera

1 MIPI Camera

Accelerometer

As a part of rapid development kit, e-con Systems provides schematics, hardware user manual, Bill of material, application notes to help the customers design their custom board faster and therefore speed up the time to market.

e-con Systems provides Linux and Android Marshmallow with device drivers for all the peripherals.

For more information, Visit Meissa-I

Download iMX6 Micro Computer on Module – eSOMiMX6-micro DataSheet:

pdf   i.MX6 Micro SOM (eSOMiMX6-micro) Datasheet

eSOMiMX6-micro Ordering Info:

eSOMiMX6-micro can be customized with the following configuration.

Part Number Template: eSOMiMX6-m-Cx-Pxxx-Fxx-Rxx-WB-E-Fx-IT

x-variants can be chosen from the following eSOMiMX6-micro Part Number Decoding Table.

eSOMiMX6-m-CQ-P800-F4G-R1G-WB-E is available for samples from webstore
For the other configurations, the minimum order quantity (MOQ) is 100. please contact sales@e-consystems.com for more information.

Feature Options P/N code
  CPU
  Dual Corex   CD
  Quad Core   CQ
  SPEED   800 MHz   P800
  DDR SIZE   1 GB   R1G
  2 GB   R2G
  eMMC flash
4GB expandable
up to 32GB
  Present   F4G*
  Absent
  WIFI/BT   Present   WB
  Absent
  1G Ethernet   Present   E
  Absent
  Fuse to Boot   Fuse to boot from eMMC   FE
  Fuse to boot from SD   FS
  Fuse to boot from SPI   FP
  Not Fused
  Temperature   Industrial (-35°C to 85°C)   IT
  Commercial (0°C to 70°C)

* - Available in 8GB (F8G), 16GB (F16G), 32GB (F32G) versions.

Volume Price Starts from

US$89
Buy i.MX6 Micro ARM Cortex A9 SOM online

Excluding Shipment Charges

Targeted Applications

»  Drone Payload

»  Wearable

»  Wireless Streaming

»  Medical Imaging

»  Portable Data Terminals

»  Remote Data Acquisition
