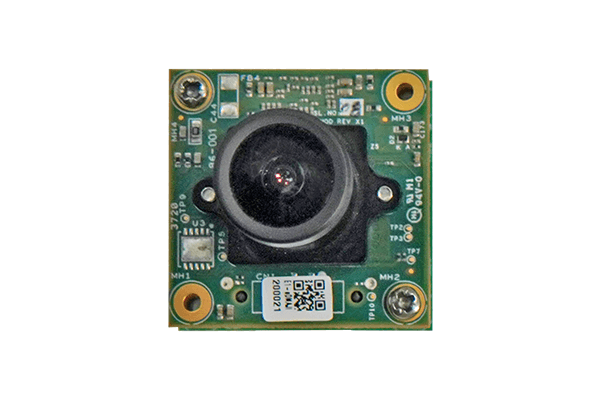

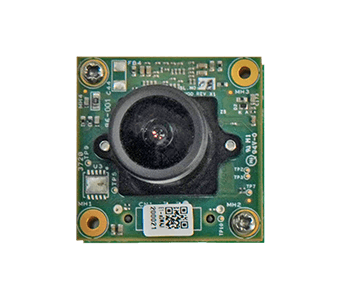

e-CAM22_CURZH is a Full HD custom lens camera module based on 1/2.8" Sony Starvis IMX462 CMOS image sensor. It is a color camera that supports UYVY image format and is provided with S-mount (also known as M12 board lens) lens holder.

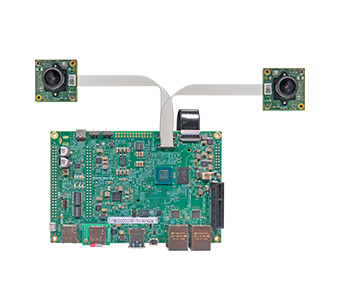

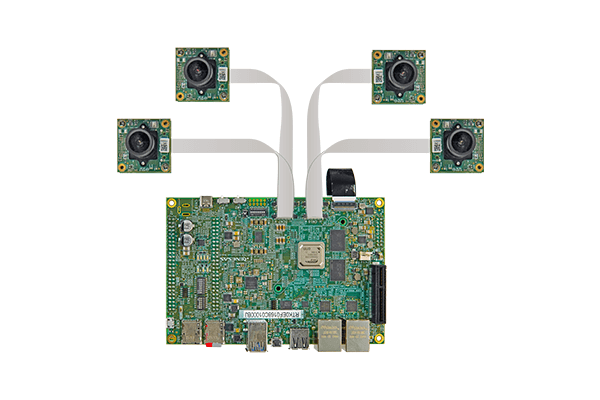

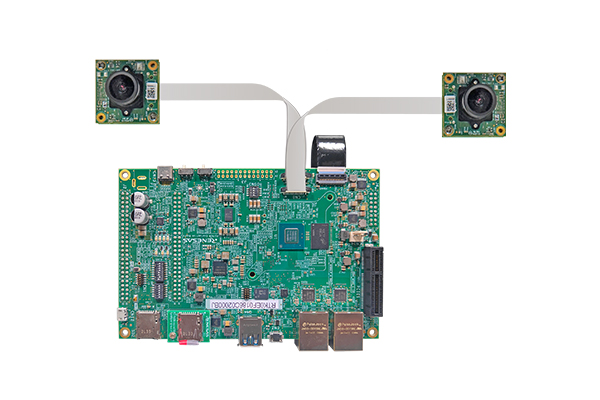

e-CAM22_CURZH can be interfaced to any one of the connectors (CN7 to CN10) of the Renesas RZ/V2H & RZ/V2N development kit. e-CAM22_CURZH stands out in its superior near-infrared performance. The high sensitivity of this camera helps to capture images in extremely low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate:
- Frame Rate: Streams HD @ 60 fps & Full HD @ 60 fps
Datasheet for more details.
- Output format: Uncompressed UYVY streaming
- High speed 4-lane MIPI CSI-2 interface
- Standard M12 lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: 4-Lane MIPI CSI-2
- Connector: 22pin FPC connector
- Cable length: 15cm
- Module features:
-
- Sensor: IMX462 from Sony® Starvis
- Focus Type: Fixed focus
- Sensor Resolution: Full HD
- Chroma: Color
- Optical Format: 1/ 2.8"
- Output Format: Uncompressed UYVY
- Pixel Size: : 2.9 μm x 2.9 μm
- Sensor Active Area: 1920H x 1080V
- G Sensitivity: 2376mV for HCG mode; 921mV for LCG mode
- Holder: M12 (S-Mount)
- FOV: 132°(D), 113°(H), 61°(V) (with the lens provided by e-con)
- Electrical and Mechanical:
-
- Operating voltage: 3.3V +/- 5%
- Operating temperature: -30°C to 70°C
- Typical power consumption - TBD
- Size in mm (l x b): 30 x 30 mm
- Miscellaneous:
-
- Compliance: RoHS
- Launched on:
e-con Systems provides the sample applications that demonstrates the features of this camera. However, this camera can also be utilized by any V4L2 application.
- Supported Kernel Version:
- RZ/V2H - AI SDK v5.20 / Kernel 5.10
- RZ/V2N - AI SDK v5.00 / Kernel 5.10
- Linux camera driver:
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
Kit Contents
- e-CAM231_CUMI462_MOD - Full HD Sony Starvis™ Camera Module with Lens
- Adaptor board
- FPC cable (15cm)
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
