e-CAM23_CUXVR - Sony® STARVIS™ IMX462 Ultra-low Light Camera

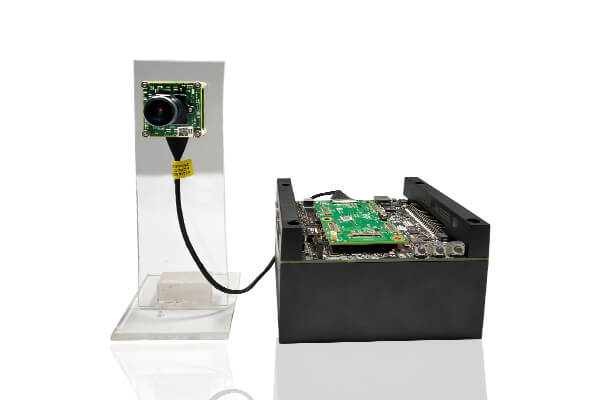

e-CAM23_CUXVR is a Full HD MIPI camera for NVIDIA® Jetson AGX Xavier™ developer kit. This camera kit contains e-CAM221_CUMI462_MOD, an ultra-low light MIPI camera module based on the SONY® STARVIS™ IMX462 sensor that ensures superior near-infrared performance.

The high sensitivity of this Full HD camera helps to capture images in as extreme low lighting conditions as 0 lux, which makes it suitable for night vision applications and medical microscopes.

This camera uses MIPI interface to connect with NVIDIA® Jetson AGX Xavier™ developer kit and is capable of streaming both HD and full HD at 120 fps in asynchronous mode.

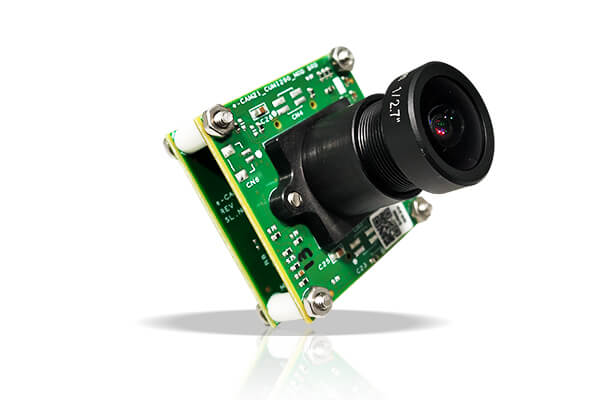

  • Houses e-CAM221_CUMI462_MOD - Full HD Sony Starvis™ Camera Module with S-mount lens holder
  • High-speed 4-lane MIPI CSI-2 interface product variants to connect with the CPU
  • Plugs in to NVIDIA® Jetson AGX Xavier™ development kit
  • Uses NVIDIA® Internal Image Signal Processor (ISP) for image processing
  • Maximum Image Transfer Rate
  • Resolutions Asynchronous Mode Synchronous Mode
    10 bit RGB 12 bit RGB 10 bit RGB 12 bit RGB
    HD (1280 x 720) 120 fps 60 fps 30 fps 30 fps
    Full HD (1920 x 1080) 120 fps 60 fps 30 fps 30 fps
  • Operating Voltage : 3.3V +/- 5%
  • Operating Temperature Range : -30°C to 85°C
  • Typical power consumption: 1.940 W
  • Customized LibArgus application for multicamera streaming, image capture and video recording
  • Gstreamer-1.0 support for video recording and network streaming
  • Base Board size ( L x W ): 75.03 mm x 40.69 mm
  • Lightweight, versatile, and portable multi-board solution
  • Adaptor board size in mm (l x b) : 30 x 30 (Height depends on the lens)
  • Micro-Coaxial Cable Length : 30 cm (1m *)
  • RoHS compliant
  • Launched on:launch date
  • * - 1-meter cable will be available on special request.

Sensor:1/2.8" Optical format CMOS Image sensor

Focus Type:Fixed focus

Resolution:Full HD


Pixel size:2.9 μm x 2.9 μm

Sensor Active Area:1937H x 1097V

Output Format:RAW 10 / 12 bit

Shutter type:Electronic Rolling Shutter


Array Size:1937 x 1097 Pixels

DFOV :Full HD - 121.35° (with the lens provided by e-con)

Linux camera driver:

Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM23_CUXVR on NVIDIA® Jetson AGX Xavier™ developer kit.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson AGX Xavier™ - JetPack 4.6 L4T 32.6.1
  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected sensor modes (eCAM_argus_camera and eCAM_Argus_MultiCamera)
  • Camera Controls
    • Exposure (both manual and automatic)
    • Sensor Gain
    • Exposure Time
    • Frame Rate
    • Sensor Mode Index

Please contact sales@e-consystems.com for any customization or to port camera driver according to your requirements.

Download e-CAM23_CUXVR - Technical Documents:

 Bullat Arrow  Datasheet

pdf  Datasheet

pdf  Lens Datasheet

 Bullat Arrow  User Manuals

pdf  Getting Started Manual

pdf  Developer Guide

pdf  eCAM_Argus Application User Manual

pdf  eCAM_Argus Camera Build and Install Guide

pdf  eCAM_Argus MultiCamera Application User Manual

pdf  Gstreamer Usage Guide

pdf  Release Package Manifest

Download Selected Documents

Kit Contents:

  • e-CAM221_CUMI462_MOD - 2MP MIPI Camera Module with lens
  • Adaptor board
  • Base board
  • Micro Coaxial Cable
  • Linux Driver & Sample Application

Please contact sales@e-consystems.com for any customization or to port camera driver according to your requirements.
