eSOMiMX6PLUS  - iMX6 SOM

NXP Logo

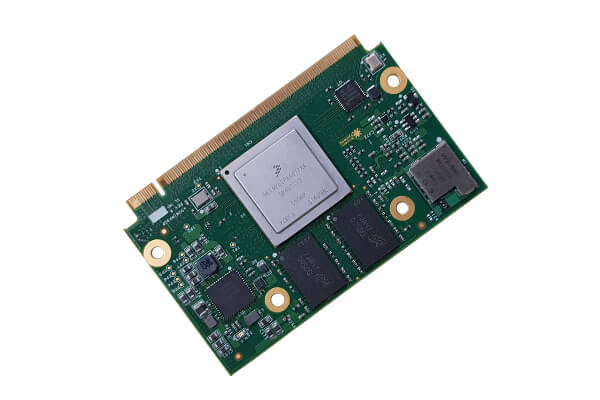

eSOMiMX6PLUS is a high performance and low power Computer/System-on-Module based on NXP semiconductor's i.MX6 processor with the basic peripherals in a small compact form factor. The eSOMiMX6PLUS has i.MX6 Processor running @ 1/1.2GHz with QuadPlus/DualPLus/Quad/Dual/DualLite/Solo Core ARM™ Cortex-A9 and DDR3L SDRAM configurable up to 4GB. It also has the optional peripherals ICs like Gigabit Ethernet PHY, Wi-Fi/Bluetooth module and eMMC flash which configurable up to 64GB. This eSOMiMX6PLUS is currently powered by Linux and Android.

eSOMiMX6PLUS System on Module is aimed at reducing the time-to-market for our customers by making use of the stabilized and ready-to-market iMX6 modules in their applications.

bullate-con's new SOM supports higher GPU performance and 802.11ac

eSOMiMX6PLUS Features

  • NXP's i.MX6 QuadPlus/DualPLus/Quad/Dual/DualLite/Solo ARM™ Cortex-A9 based Processor @ 1/1.2GHz per Core
  • On-board 2GB DDR3L RAM (Expandable up to 4GB)
  • On-board 8GB eMMC FLASH (Expandable up to 64GB)
  • eSOMgears - Over-the-Air (OTA) Firmware Upgrade Solution  new
  • Wi-Fi: : 2.4 GHz / 5 GHZ IEEE 802.11 a/b/g/n/ac
  • Bluetooth V4.2/BLE (Dual Mode/Smart Ready)
  • Gigabit Ethernet (x1) – Optional
  • Power Supply: 3.3V @ 3A
  • Operating temperature
    1. Commercial Temperature – 0°C to + 70°C
    2. Industrial Temperature – -40°C to + 85°C
  • Supporting Operating Systems
    1. Linux Kernel version 4.9.11
    2. Android Marshmallow 6.0.1 (with Linux Kernel 4.1.15)
  • Form Factor of 70mm X 45mmx4.4mm
  • Availability - Until 2028

Interfaces Supported on eSOMiMX6PLUS:

  • Camera
    1. MIPI - 4 lane interface
    2. Parallel interface 1 - 10 bits
    3. Parallel interface 2 - 20 bits
  • Display
    1. HDMI (x1)
    2. LVDS (x2)
    3. LCD - 24bpp RGB (x1)
    4. MIPI-DSI (x1)
  • Networking
    1. Wi-Fi 802.11 a/b/g/n/ac
    2. Bluetooth V4.2/BLE (Dual Mode/Smart Ready)
    3. Gigabit Ethernet (x1) – Optional
  • USB
    1. USB 2.0 Host (x1)
    2. USB 2.0 OTG (x1)
  • Miscellaneous
    1. Upto 5 UARTs
    2. I2C (x3)
    3. SPI (x1)
    4. FLEXCAN (x2)
    5. GPIOs (upto 50)
    6. PCIe Gen 2.0 (x1)
    7. SATA II (x1)
    8. PWM (x3)
    9. SPDIF IN & OUT (x1)
    10. UHS SD (4 bit)(x1)

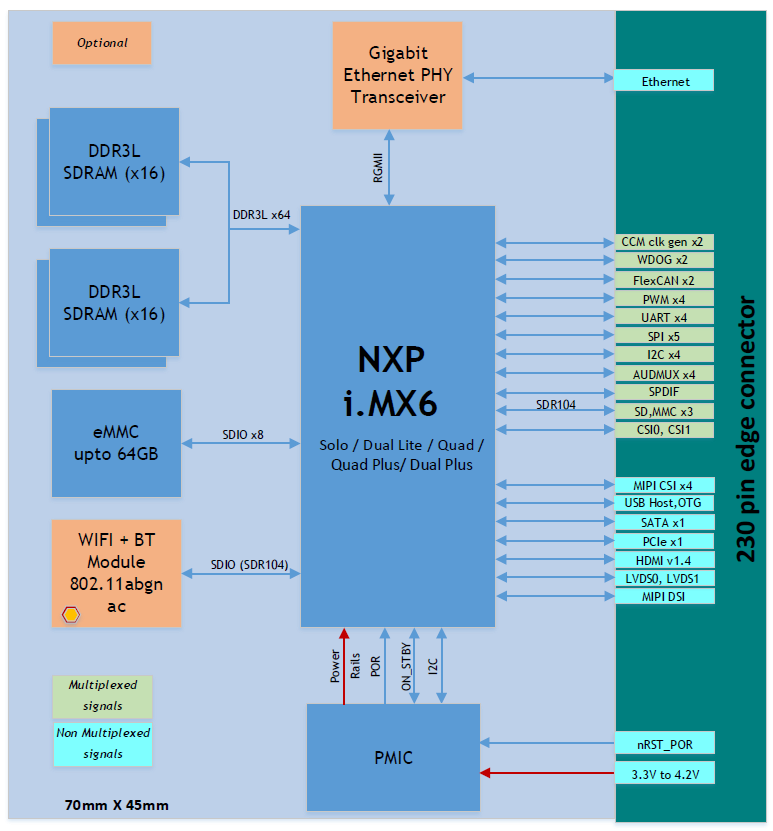

iMX6 SOM block diagram (eSOMiMX6PLUS)

eSOMiMX6PLUS block diagram

Please contact sales@e-consystems.com for any customization.

AnkaaPLUS i.MX6 Rapid Development Kit

e-con provides a Rapid development kit for eSOMiMX6PLUS called AnkaaPLUS i.MX6 Development kit. This Development kit features a carrier board around the eSOMiMX6PLUS Module with peripherals supported like HDMI, LVDS, USB 2.0 host. Also includes 7 inch Capacitive Touch screen, SDIO, SPI, I2C, GPIO, USB high speed client, 4 lane MIPI/Parallel camera interface.

AnkaaPLUS Development kit With Linux/Android $349 With Linux/Android + LCD Display $499 Buy AnkaaPLUS i.MX6 Development board Online

Excluding Shipment Charges

As a part of rapid development kit, e-con Systems provides schematics, hardware user manual, Bill of material, application notes to help the customers design their custom board faster and therefore speed up the time to market.

e-con Systems provides Linux / Android with device drivers for all the peripherals.

For more information, please visit iMX6-quad-plus-dual-plus-core-development-board.asp

Download eSOMiMX6PLUS DataSheet:

pdf   i.MX6 SOM (eSOMiMX6PLUS) Datasheet

eSOMiMX6PLUS SOM Ordering Info:

eSOMiMX6PLUS can be customized with the following configuration.

Part Number Template: eSOMiMX6PLUS-Cxx-Pxxx-Fxxx-Rxxx-WB-E-Fx-SWxx-IT

x-variants can be chosen from the following eSOMiMX6PLUS Part Number Decoding Table.

eSOMiMX6PLUS-CQP-P1G2-F8G-R2G-WB-E and eSOMiMX6PLUS-CDP-P1G-F8G-R2G-WB-E are available for samples from webstore. For the other configurations, the Minimum order quantity (MOQ) is 100. please contact sales@e-consystems.com for more information.

Feature Options P/N code
  CPU   i.MX6 Quad Plus   CQP
  i.MX6 Dual Plus   CDP
  i.MX6 Solo Core   CS
  i.MX6 Dual Lite Core   CDL
  i.MX6 Dual Core   CD
  i.MX6 Quad Core   CQ
  SPEED   800 MHz   P800
  1 GHz   P1G
  1.2 GHz1   P1G2
  DDR SIZE   512MB (Only for Solo Core)   R512
  1 GB   R1G
  2 GB   R2G
  4 GB   R4G
  Storage   eMMC 4GB  F4G
  eMMC 8GB  F8G
  eMMC 16GB  F16G
  eMMC 32GB  F32G
  eMMC 64GB  F64G
  Wi-Fi/BT   Wi-Fi 802.11 a/b/g/n/ac and Bluetooth 4.2   WB
  Not Present    -
  Ethernet Port   Gigabit Ethernet   E
  Not Present    -
  Fuse to Boot   Fuse to boot from eMMC   FE
  Fuse to boot from SD   FS
  Not Fused   -
  Firmware version   Firmware version to be loaded into eMMC
(xx – Running number starts from 01)
  SWxx
  Temperature   Industrial2 (-40°C to 85°C)   IT
  Commercial (0°C to 70°C)    -

Note1 - SOM with 1.2GHz Processor is available only in commercial temperature grade Dual Plus and Quad Plus

Note2 - WIFI+BT module operates at -30°C to 85°C and all other devices operate at -40°C to 85°C

Price

4K Camera Customization

Targeted Applications

»  Portable Data Terminals

»  Navigation

»  Auto infotainment

»  Industrial Control

»  Wireless Streaming

»  Single board Computers

»  Medical Imaging

»  Test and Measurement

»  Remote data Acquisition
