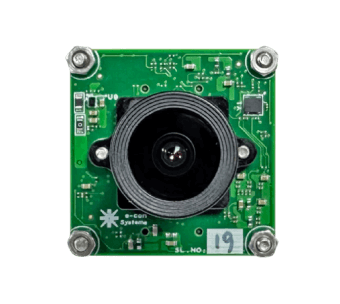

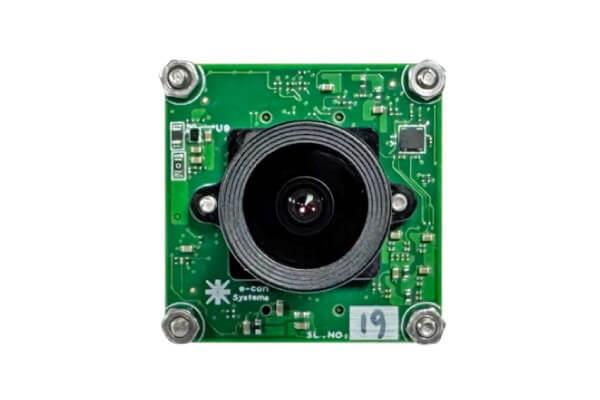

e-CAM86_CUiMX8 - 8MP Sony® STARVIS™ 2 IMX678 Ultra-Low-Light Camera for i.MX8 Processors

Toradex Cameras

Highlights:

  • Houses e-CAM810_CUMI678C_MOD - 8MP Custom Lens Camera Module with S-mount lens holder.
  • Ultra-Low-Light Performance
  • Plugs directly into Toradex® Verdin carrier board based on iMX8M Plus SoM
  • Uses NXP ISP for image processing
  • High-speed MIPI CSI-2 interface to connect with the CPU

Sample Price

ContactUs

Documents

Download Document

The e-CAM86_CUiMX8 is an 8MP ultra-low-light MIPI CSI-2 camera solution designed specifically for the Toradex® Verdin iMX 8M Plus SoM and Toradex® Verdin development board. It is powered by the Sony® STARVIS™ 2 IMX678 sensor, which provides exceptional image quality even in extremely low-light conditions.

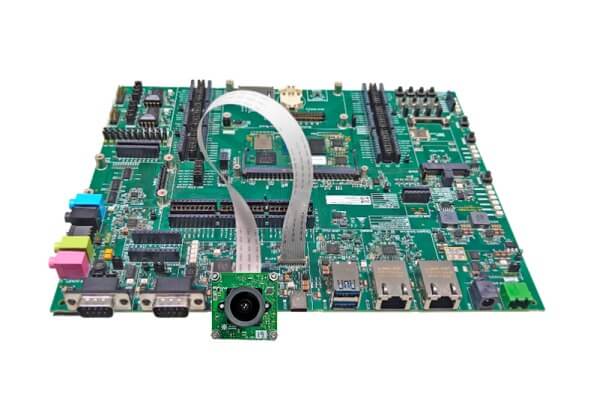

The e-CAM86_CUiMX8 adaptor board has a 24-pin FFC connector (CN1), through which the camera module is connected to the Toradex® Verdin iMX 8M Plus SoM and Toradex® Verdin development board using an FPC cable of maximum 20 cm length. It supports RGB RAW data for both still capture and video recording and comes equipped with an S-mount (M12) lens holder, offering flexibility for various optical requirements.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Streams 4K (3840 x 2160) @ 50 fps and Full HD (1920 x 1080) @ 72 fps.
      Refer pdfDatasheet for complete frame rate details.
    • Output format: RGB RAW.
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: 4-lane MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 20cm
  • Module features:
    • Sensor: Sony® STARVIS™ 2 IMX678
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.8"
    • Output Format: RGB RAW 8-bit/12-bit
    • Pixel Size: 2μm x 2μm
    • Sensor Active Area: 3840 (H) x 2160 (V)
    • Lens Holder: M12 (S-Mount)
    • FOV: 113.54°(D), 98.79°(H), 54.94°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3 V +/- 5%
    • Operating Temperature Range: -30°C to 85°C
    • Power requirements: 0.886W
    • Size in mm (l x b ): 30 x 30 mm
    • Weight: 24g
  • Miscellaneous:
    • Compliance: RoHS
Linux camera driver:

e-con Systems provides sample applications that demonstrate the features of this camera. However, this camera can also be utilized by any V4L2 application.

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download 3MP Documents

Kit contents:
  • e-CAM810_CUMI678C_MOD - 8MP IMX678 MIPI camera module with lens
  • Camera Adaptor board
  • Ixora adaptor board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM86_CUiMX8 - Customization for other Application Processor platforms:

e-con provides customization for e-CAM86_CUiMX8 on any application platform as per customer requirements.

e-CAM86_CUiMX8 - Customization

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization
  • For C/CS mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
