e-CAM30_CUCRL - 3.4 MP Google Coral Camera

e-CAM30_CUCRL is a 3.4 MP 4 lane MIPI CSI-2 custom lens camera board for Google Coral development board. This Google coral camera is based on 1/3" inch AR0330 CMOS Image sensor from ON Semiconductor® with 2.2 µm pixel.

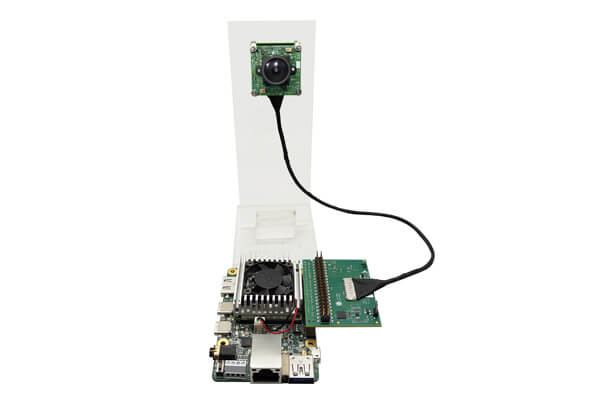

This camera can be directly connected to the camera connector through P1 and J15 on the Google Coral development board. e-CAM30_CUCRL is exposed as a standard V4L2 device and customers can use the V4L2 APIs to access this camera and control the same.

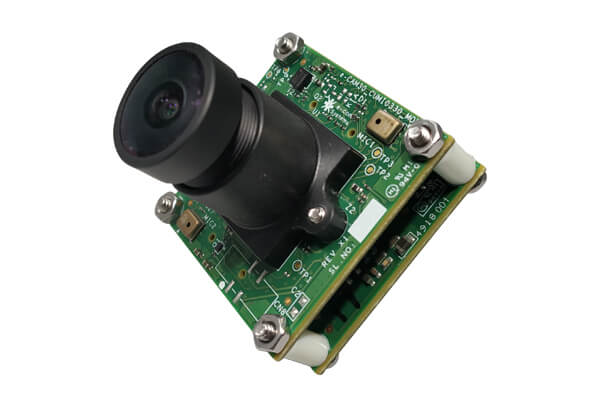

  • Houses e-CAM30A_CUMI0330_MOD - 3.4 MP Camera Module with S-mount lens holder
  • Multi board solution
  • High-speed 4-lane MIPI CSI-2 interface to connect with the CPU
  • Plugs in to Google Coral development board
  • Frame Rate:
  • Resolutions UYVY
    VGA 60 fps
    HD (720p) 60 fps
    Full HD (1080p) 60 fps
    3MP 60 fps
    3.4 MP 50 fps
  • Operating Voltage : 3.3V +/- 5%, Current - 245mA
  • Linux camera driver (V4L2) for 3.4 MP MIPI CSI-2 camera module
  • Operating Temperature Range: -30°C to 70°C
  • Power Consumption:
    • Max : 1.22W
    • Min : 0.79W
  • Sample application for image capture & Preview
  • Lightweight, versatile, and portable design
  • RoHS compliant
  • Launched on:launch date

Sensor:1/3" Optical format CMOS Image sensor.

Focus Type:Fixed focus

Resolution:3.4 MP

Pixel size:2.2 µm x2.2 µm

Sensor Active Area:2304H x 1536V

Responsivity:2 V/lux-sec

SNR:39 dB

Dynamic Range:69.5 dB

Output Format:Uncompressed UYVY format

Shutter type:Electronic Rolling Shutter

Holder:S-Mount

ISP:External ISP

Array Size:The e-CAM30_CUCRL supports max up to 2304x1536 pixels for 3.4 MP

DFOV : 3.4 MP - 120° (with the lens provided by e-con)

Linux camera driver:


Full-fledged Linux camera driver for MIPI CSI-2 camera module. The driver supports e-con's e-CAM30_CUCRL on Google Coral development board.

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls
    • Brightness
    • Contrast
    • Saturation
    • White Balance (both manual and automatic)
    • Gamma
    • Gain
    • Horizontal Flip
    • Vertical Flip
    • Sharpness
    • Exposure (both manual and automatic)
    • Digital Zoom

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM30_CUCRL - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM30_CUCRL Datasheet

pdf e-CAM30_CUCRL Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM30_CUCRL Getting Started Manual

pdf e-CAM30_CUCRL Linux App User Manual

pdf e-CAM30_CUCRL Gstreamer Usage Guide

pdf e-CAM30_CUCRL Release Package Manifest

pdf e-CAM30_CUCRL Developer Guide

Download Selected Documents

Kit Contents:

  • Hardware:
    • e-CAM30_CUCRL - 3.4 MP MIPI Camera board (contains Camera module, Adaptor board, Base board, Micro Coaxial Cable and FPC Cable)
  • Software:
    • V4L2 - Linux driver
    • Sample View finder Application with Source Code
  • Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

PRICE

US$79
Buy e-CAM30_CUCRL online

Excluding Shipment Charges
