e-CAM134_CUiMX8 - 13MP Monochrome Camera for i.MX8 Processors

e-CAM134_CUiMX8 is a 13MP fixed focus MIPI camera designed to work with the NXP i.MX8 series of application processors. This camera can be directly interfaced with Toradex's off-the-shelf carrier boards.

With the capability to stream 4K at 30fps and 13MP at 30fps, e-CAM134_CUiMX8 is the perfect camera of choice for iMX8QM for applications that require high resolution imaging.

This camera supports the following Toradex computer on modules:

Processor Computer on Module Carrier Board
NXP i.MX8 Apalis i.MX8 QuadMax Ixora Carrier Board
NXP i.MX8M Plus Verdin i.MX8M Plus Verdin Development Board

Key Features of iMX8 Camera:

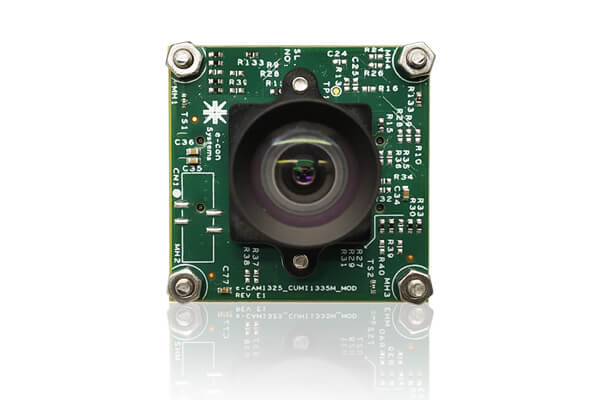

  • Houses e-CAM1325_CUMI1335M_MOD - 13MP Monochrome camera module with S-Mount holder

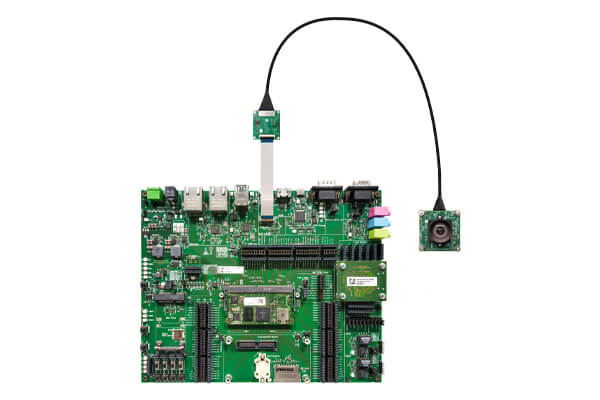

  • Plugs directly into the Toradex Ixora carrier board and Verdin Development Board
  • High-speed 2-lane and 4-lane MIPI CSI-2 interface
  • Output Format - Y8/Y16 (RAW10/Y10) format
  • Frame rate: Streams 4K @ 30fps, Full HD @ 60fps & HD @ 120fps
    Refer pdfDatasheet for complete frame rate details.
  • Operating Temperature Range : -30° to 70° C
  • Power Consumption: 0.336W
  • Board Size (L x W) - 30 mm x 30 mm
  • Light weight, versatile, and portable design
  • RoHS compliant

Camera Module Features:

Sensor:AR1335M from onsemi®

Focus Type:Fixed focus

Resolution:13MP

Output Format:Y8/Y16 (RAW 10)

Optical Format:1/3.2"

Pixel size:1.1μm x 1.1μm

Sensor Active Area:4208 (H) x 3120 (V)

Array Size:4224 (H) × 3136 (V)

Responsivity:8000 e-/lux-sec

SNR:37 dB

Dynamic Range:69 dB

Shutter type:Electronic Rolling Shutter

Focus Type:Fixed focus

Holder:S-Mount

DFOV:66.8°(with the lens provided by e-con)

The e-CAM134_CUiMX8 is a MIPI 2-lane camera and it requires a custom camera driver for iMX8. e-con Systems provides the camera driver along with the camera board.

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Camera Controls
    • Exposure (Manual)
    • Gain

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM134_CUiMX8 - Technical Documents:

 Bullat Arrow  Datasheet

pdf Datasheet

pdf Getting Started manual for Verdin development board

pdf Getting Started manual for Ixora carrier board

Download Selected Documents

Kit Contents for iMX8 Camera:

  • Hardware:
    • e-CAM134_CUiMX8 - 13.0 MP MIPI Camera board (contains the e-CAM1325_CUMI1335M_MOD camera module, camera adaptor board, Ixora adaptor board, micro-coaxial cable, and an FFC cable)
  • Software:
    • Linux:
      • Prebuilt images for out of the box evaluation
      • V4L2 - Linux driver source code
Camera Customization Contact

Targeted Applications

»  Ophthalmology

»  Dentistry

»  Assistive Technology

»  Dermatology

»  High end Video Surveillance

»  Photo Booth cameras

»  Parking lot management

»  Virtual & Augmented reality

»  Document scanning cameras

»  4K Video Cameras
