e-CAM80_CURZH - 8MP Sony® STARVIS™ IMX415 Camera for Renesas RZ/V2H

Highlights:

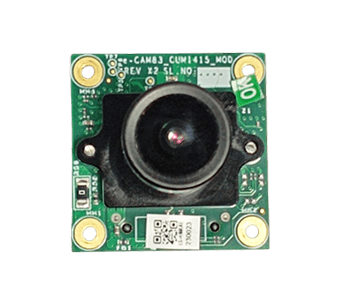

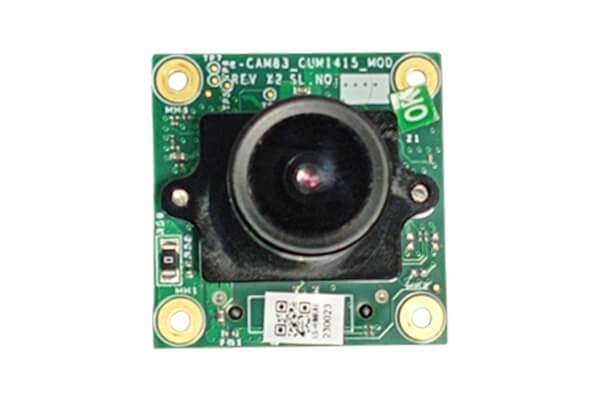

  • Houses e-CAM83_CUMI415_MOD - 8MP camera based on Sony® STARVIS™ IMX415 CMOS image sensor with S-mount lens holder
  • Ultra low light performance
  • Plugs directly into the Renesas RZ/V2H development kit

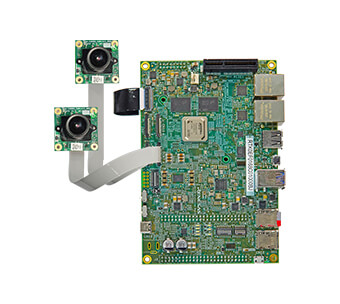

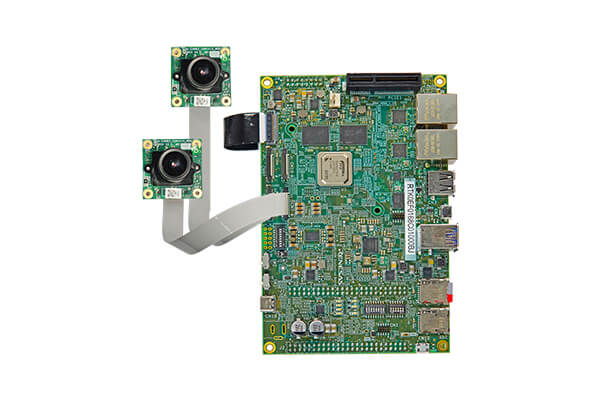

  • Multicamera support for RZ/V2H (upto 2 cameras)
  • It uses Renesas RZ/V2H ISP for image processing

Sample Price

Documents

Download Document

e-CAM80_CURZH is an 8MP (4K) custom lens camera module based on 1/2.8" Sony STARVIS IMX415 CMOS image sensor. e-CAM80_CURZH camera can be directly interfaced with CN7 and CN8 connectors of the Renesas RZ/V2H development kit. It uses the Renesas RZ/V2H Image Signal Processor (ISP) to enhance AI recognition accuracy (e.g. Auto White Balance, Auto Exposure control).

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate: 4K @ 30fps & Full HD @ 60fps
      Refer pdfDatasheet for complete frame rate details.
    • High speed 4-lane MIPI CSI-2 interface
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable multi-board solution
  • Interface:
    • Interface: 4-Lane MIPI CSI-2
    • Connector: 22-pin FPC connector (opposite side)
    • Cable Length: 15cm
  • Sensor Features:
    • Sensor: IMX415 from Sony® STARVIS
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/ 2.8"
    • Output Format: RAW Bayer 12-bit
    • Pixel Size: 1.45 μm x1.45 μm
    • Sensor Active Area: 3864H x 2176V
    • Holder: M12 (S-Mount)
    • FOV: 131° (D), 113° (H), 61° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Typical power consumption - ~ 686.4 mW
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD USB Camera Documents

This camera can be utilized by any V4L2 application.

  • Supported Kernel Version
    • Renesas RZ/V2H - AI SDK v5.20 / Kernel 5.10
  • Linux camera driver:
    • V4L2 Linux driver for MIPI CSI-2 camera module:
      • Video preview
      • Still Image capture
      • Camera controls via IOCTLs
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
Kit Contents
  • e-CAM83_CUMI415_MOD - 8MP Sony STARVIS™ IMX415 Camera Module with Lens
  • Adaptor board
  • FPC cable (15cm)

Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
