e-CAM81_CUR360 - 4K HDR Camera for Advantech AFE-R360

Highlights:

  • Houses e-CAM82_CUMI0821_MOD - 8MP (4K) Camera Module with S-mount lens holder
  • High Dynamic Range (HDR)
  • High-speed MIPI CSI-2 interface to connect with the CPU

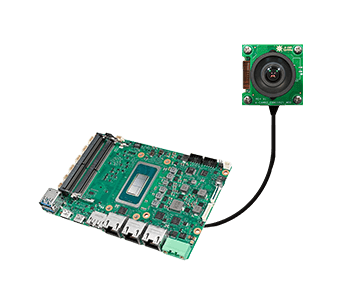

  • Plugs in to Advantech AFE-R360 Dev kit
  • On-board high-performance ISP

Sample Price

ContactUs

e-CAM81_CUR360 is an 8MP (4K) HDR MIPI CSI-2 multi-board solution for Advantech AFE-R360 Dev kit development kit. It is based on a 1/1.7" AR0821 CMOS sensor from onsemi®.

e-CAM81_CUR360 is a multi-board solution given in a single unit with 30x30mm size. It has an S-mount lens holder (M12 lens) allowing customers to choose their optics.

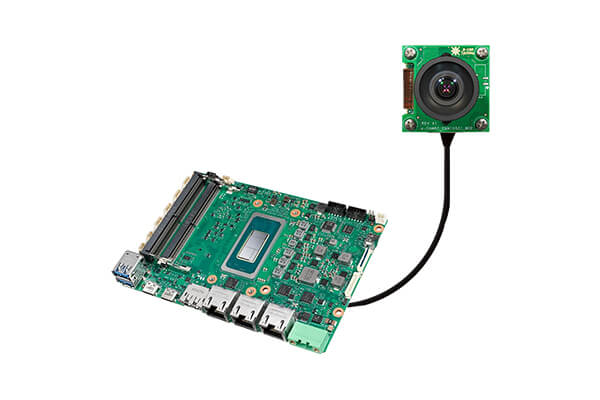

This camera comes with HDR capability which helps to produce exceptionally clear and sharp images in challenging lighting conditions. e-CAM81_CUR360 uses the MIPI CSI-2 interface to stream video data in HD and Full HD @ 30fps. e-CAM81_CUR360 can be directly connected to the MIPI CSI-2 connector of the Advantech AFE-R360 Dev kit and software driver support is available for all these platforms.

  • Key features:
    • Frame Rate:
      • Full HD @ 60fps & 4K @ 30fps
    • Uncompressed UYVY streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: Micro coaxial cable with I-PEX connector
    • Cable Length: 30cm
  • Module features:
    • Sensor: AR0821 from onsemi®
    • Focus Type: Fixed focus / Auto focus*
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.7"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 2.1 μm x 2.1 μm
    • Sensor Active Area: 3848H x 2168V
    • Array Size: 3848H x 2168V
    • Responsivity: 15.4 ke-/lux-sec
    • SNR: 41.8 dB
    • Dynamic Range: Max upto 100 dB
    • Holder: M12 (S-Mount)
    • FOV: 120° (D), 104.8° (H), 58.7° (V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to +70°C
    • Typical power consumption: 1.5W
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS, FCC
  • * - Liquid lens option is available for this product and can be provided on request
  • gstreamer based camera application for:
    • Camera streaming over Ethernet and WIFI (H.264 encoded)
    • H.264 and H.265 encoded video recording
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
