e-CAM212_CUiMX8 - 2MP IMX662 Ultra-Lowlight Camera for i.MX8 Processors

Toradex Cameras

Highlights:

  • Houses e-CAM234_CUMI662C_MOD - 2MP Sony® STARVIS2 IMX662 Camera Module
  • Enhanced Low light performance
  • Superior NIR sensitivity
  • Clear HDR support
  • Plugs directly into Toradex® Verdin carrier board based on iMX8M Plus SoM
  • High-speed MIPI CSI-2 interface to connect with the CPU

Sample Price

ContactUs

Documents

Download Document

e-CAM212_CUiMX8 is a 2.12MP custom lens camera module based on 1/2.8" Sony Starvis2 IMX662 CMOS image sensor. It is a color camera that supports YUYV image format and provided with S-mount (also known as M12 board lens) lens holder.

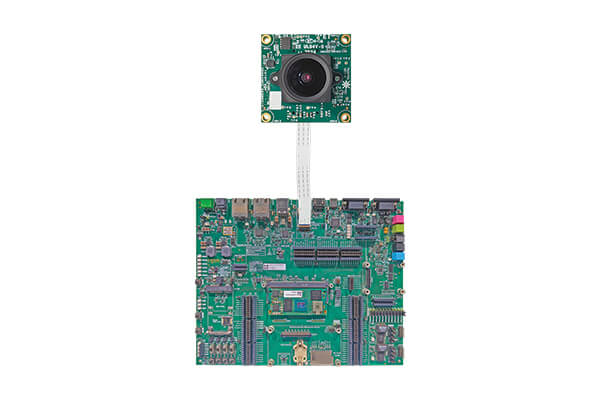

This camera can be directly interfaced with the Toradex off-the-shelf Verdin development kit. The camera board is connected to the adaptor board through a FPC cable. This adaptor board acts as a bridge between the camera module and the Toradex development kit. e-CAM212_CUiMX8 can stream uncompressed HD at 120 fps, FHD at 90 fps.

  • Key features:
    • Frame Rate:
      • Full HD @ 90 fps & HD @ 120 fps
    • YUYV Streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 15cm
  • Module features:
    • Sensor: Sony® Starvis2 IMX662
    • Focus Type: Fixed focus
    • Sensor Resolution: 2.12 MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.8"
    • Output Format: RAW 10/12-bit
    • Pixel Size: 2.9 μm x 2.9 μm
    • Sensor Active Area: 1965 (H) × 1113 (V)
    • Holder: M12 (S-Mount)
    • FOV: 149.7°(D), 125.4°(H), 67.8°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3 V +/- 5%
    • Operating Temperature Range: -30°C to 85°C
    • Power requirements: 627 mW
    • Size in mm (l x b ): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
Linux camera driver:

e-con Systems provides sample applications that demonstrate the features of this camera.

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD Camera Documents

Kit contents:
  • e-CAM234_CUMI662C_MOD - Ultra low-light MIPI camera module with lens
  • Adaptor board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of the camera driver to your requirements.
