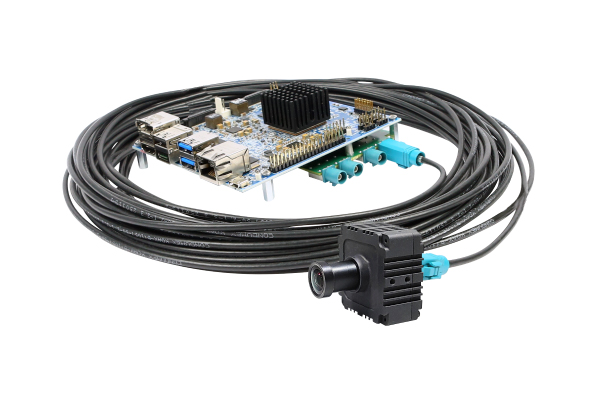

NeduCAM31_CUTDA4 is a 3MP HDR camera solution that can be readily integrated with Texas Instruments' SK-TDA4VM processor starter kit. It is designed to provide a reliable vision solution for developers building Edge AI and ADAS-based embedded vision systems. The camera is based on the automotive-grade 1/2.42" Sony® ISX031 CMOS image sensor and supports FPD-Link III communication for robust high-speed data transmission.
The camera features 120dB High Dynamic Range (HDR) along with LED Flicker Mitigation (LFM) to ensure stable and flicker-free imaging in challenging lighting environments such as varying sunlight or LED lighting conditions. The module integrates a FPD-Link III serializer, enabling bidirectional communication, video transmission, and power delivery through a single coaxial cable using PoC (Power over Coax).
NeduCAM31_CUTDA4 includes an IP67-rated rugged aluminum enclosure, FAKRA connector, and multiple lens options to support various field-of-view requirements. The camera can be interfaced with the Texas Instruments FPD-Link III deserializer, making it suitable for ADAS applications such as forward-facing and surround-view camera systems.
Refer
Datasheet for complete frame rate details.
- Key Features:
-
- Frame rate: Full HD @ 30 fps, 3MP @ 30 fps Refer
- Uncompressed UYVY streaming
- High-speed MIPI CSI-2 interface to connect with the CPU
- Lightweight, versatile, and portable design
Datasheet for complete frame rate details.
- Interface:
-
- Interface: FPD-Link III
- Connector: FAKRA connector
- Cable Length: 15m
- Module Features:
-
- Sensor: ISX031 from Sony®
- Focus Type: Fixed focus
- Focus Distance: 1m to Infinity
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.42"
- Output Format: YUV
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1937 (H) x 1553 (V)
- Dynamic Range: Max upto 120 dB
- Lens Holder: M12 (S-Mount)
- FOV: 54.04°(H),42.86°(V), 70.17°(D) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 12V with +/- 5%
- Operating Temperature Range: -40°C to 85°C
- Typical power consumption: TBD
- Size in mm (l x b):
- Camera module: 42 x 42 mm
- Deserializer board: 65 x 67 mm
- Miscellaneous:
-
- Compliance: RoHS
- e-con Systems provides Gstreamer and V4L2 commands that demonstrate the features of this camera. However, this camera can also be utilized by any V4L2 application.
- Linux camera driver:
-
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Camera Controls: TBD
- Please contact camerasolutions@e-consystems.com for any customization requirements.
NeduCAM31_CUTDA4 - Customization and Porting Services for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for NeduCAM31_CUTDA4 on any application platform as per customer requirements.
NeduCAM31_CUTDA4 - Customization:
e-con provides customization, development and porting services for the following requirements:
- IP rated (IP69K) enclosure and IP rated (IP69K) cables for rugged applications.
- Length of the co-axial cable
- Change of lens to meet your FOV and other requirements
- Support for other TI platforms as well as carrier boards from other vendors built using TI platforms
- Support for other processor platforms
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
