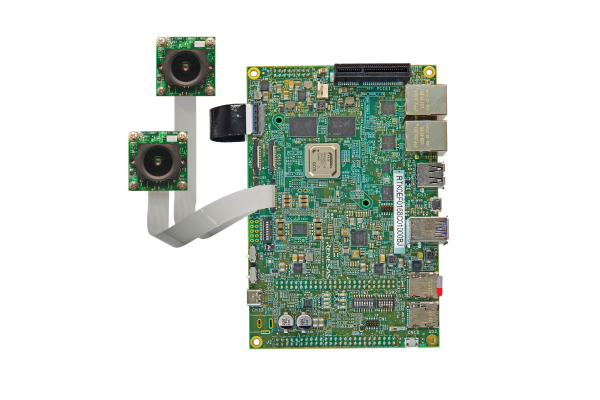

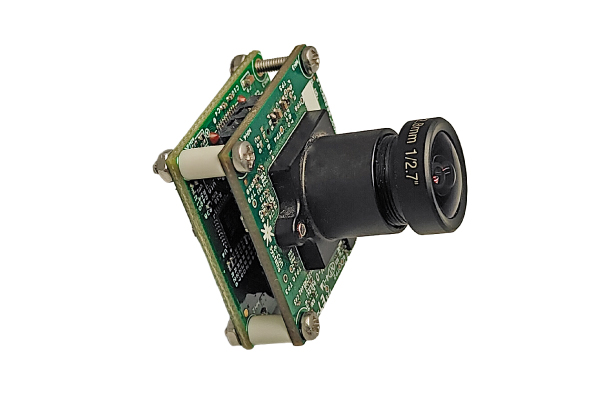

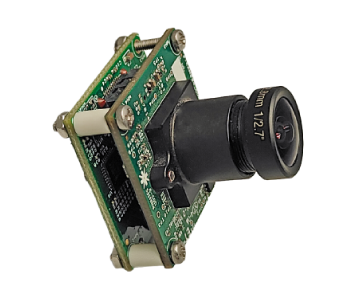

The e-CAM212_CURZH is a high-performance 2.12 MP camera module designed for Renesas RZ/V2H & RZ/V2N development kits. Built on the Sony® IMX662 sensor, this camera delivers superior low-light performance, enhanced NIR sensitivity, making it ideal for various autonomous applications.
With MIPI CSI-2 interface support, the e-CAM212_CURZH ensures seamless integration with Renesas platforms. Its ultra-low-light imaging capability allows precise image capture even in challenging lighting conditions.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate:
- Full HD @60 fps & HD @70 fps
Datasheet for complete frame rate details.
- YUV (NV12) Streaming
- Standard M12 lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: MIPI CSI-2
- Connector: FPC cable
- Cable Length: 15cm
- Module features:
-
- Sensor: Sony® Starvis2 IMX662
- Focus Type: Fixed focus
- Sensor Resolution: 2.12 MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.8"
- Output Format: RAW 10-bit / 12-bit
- Pixel Size: 2.9 μm x 2.9 μm
- Sensor Active Area: 1965 (H) × 1113 (V)
- Holder: M12 (S-Mount)
- FOV: 132.32°(D), 112.79°(H), 61.08°(V) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 3.3V +/- 5%
- Operating Temperature Range: -30°C to +85°C
- Typical power consumption: 567.6mW
- Size in mm (l x b): 30mm x 30mm
- Miscellaneous:
-
- Compliance: RoHS
- This camera can be utilized by any V4L2 application.
- Supported Kernel Version:
- Renesas RZ/V2H - AI SDK v6.00 / Kernel 6.1
- Renesas RZ/V2N - AI SDK v6.30 / Kernel 6.1.141
- Linux camera driver:
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
Kit Contents:

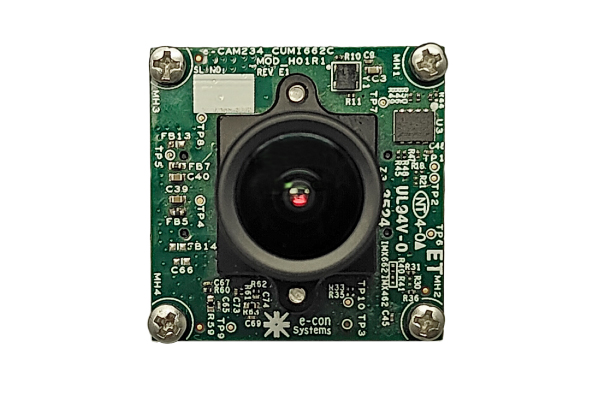

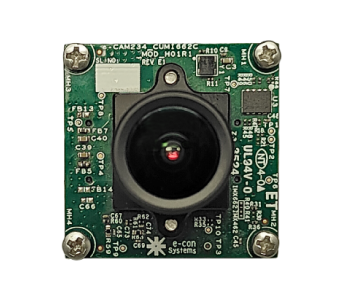

- e-CAM234_CUMI662C_MOD - Ultra low-light MIPI camera module with lens

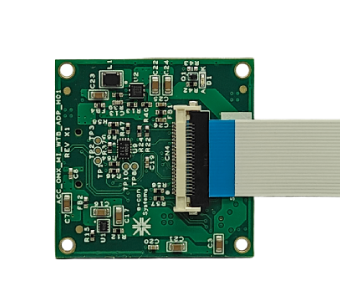

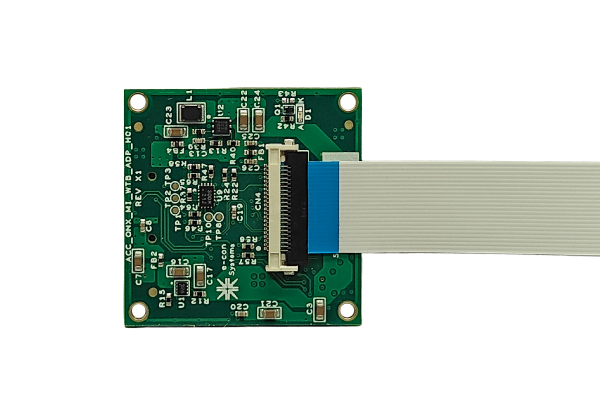

- Adaptor board
- Flex Cable (15 cm)
- Linux Driver & Sample Application
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM212_CURZH - Customization for other Application Processor platforms:
e-con provides customization for e-CAM212_CURZH on any application platform as per customer requirements.
e-CAM212_CURZH - Customization
e-con provides customization for the following requirements:
- PCB form-factor customization for any shape, connector and orientation
- Lens holder customization
- For C/CS mount lens holder
- Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
- Support for other processor platforms
- Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
