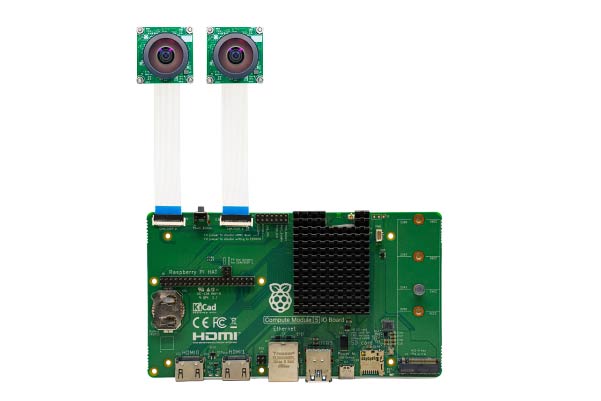

The e-CAM31_CURBC is a 3MP MIPI CSI-2 High Dynamic Range (HDR) camera designed for the Raspberry Pi CM5 Development Kit. The e-CAM31_CURBC camera is based on the 1/2.42" Sony® ISX031 automotive-grade CMOS image sensor. This color camera supports the UYVY image format and features an S-mount (also known as an M12 board lens) lens holder.
Its advanced High Dynamic Range (HDR) capability of up to 120dB, combined with integrated LED Flicker Mitigation (LFM) technology, minimizes blowout in high-contrast environments and eliminates artificial light flickering. This ensures stable, highly detailed, and motion-blur-free imaging, making it ideal for capturing scenes with challenging outdoor or dynamic target environments.
Refer
Datasheet for more details.
- Key features:
-
- Frame Rate: 1920 x 1536 @ 30 fps, 1920 x 1080 @ 30 fps
ReferDatasheet for complete frame rate details.
- uncompressed UYVY Streaming
- High speed 4-lane MIPI CSI-2 interface
- Standard M12 lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Frame Rate: 1920 x 1536 @ 30 fps, 1920 x 1080 @ 30 fps
- Interface:
-
- Interface: 4-Lane MIPI CSI-2
- Connector: 22pin FPC connector
- Cable length: 15cm
- Module features:
-
- Sensor: ISX031 from Sony®
- Focus Type: Fixed focus
- Focus Distance: 1m to Infinity
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.42"
- Output Format: YUV
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1937 (H) x 1553 (V)
- Array Size: 1937 (H) x 1553 (V)
- Dynamic Range: Max upto 120 dB
- Lens Holder: M12 (S-Mount)
- FOV: TBD
- Electrical and Mechanical:
-
- Operating Voltage: 3.3 V +/- 5%
- Operating Temperature Range: -30°C to 70°C
- Power requirements: TBD
- Size in mm (l x b ): 30 x 30 mm
- Miscellaneous:
-
- Compliance: RoHS
Linux camera driver:
The e-CAM31_CURBC is a MIPI 4-lane camera and it requires a custom camera driver for Raspberry Pi CM5 Dev kit. e-con Systems™ provides the camera driver along with the camera board
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Sample application with source Code for Linux:
-
- Video Preview
- Still Image capture at selected resolutions
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM31_CURBC
- Hardware
-
- 3MP ISX031 MIPI Camera Module
- Adaptor board
- FPC cable (15cm)
- Software
-
- Linux
-
- prebuild Raspbian images for out of the box Evaluation
- V4L2 - Linux driver source code
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM31_CURBC - Customization for other Application Processor platforms:
e-con provides customization for e-CAM31_CURBC on any application platform as per customer requirements.
e-CAM31_CURBC - Customization
e-con provides customization for the following requirements:
- PCB form-factor customization for any shape, connector and orientation
- Lens holder customization
- For C/CS mount lens holder
- Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
- Please contact camerasolutions@e-consystems.com for customization requirements.
