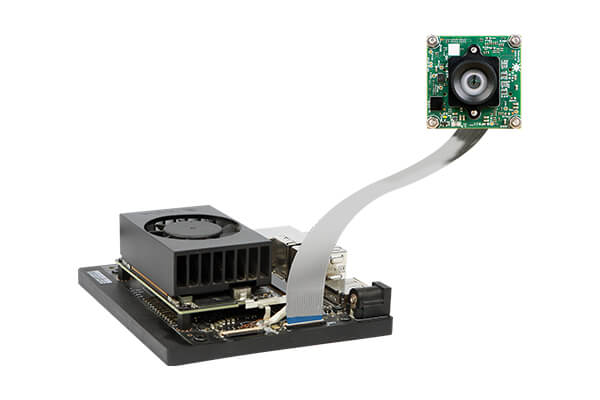

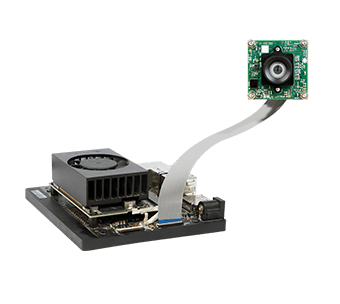

e-CAM84_CUONX - 4K AR0830 Camera for NVIDIA® Jetson Orin NX / Orin Nano


  • Houses e-CAM85_CUMI0830C_MOD - 8MP camera based on onsemi® AR0830 sensor
  • On-board high performance ISP
  • Wake on Motion - Enables sensor to remain in low-power state until motion detected *
  • Super Low Power Mode*
  • High-speed MIPI CSI-2 interface to connect with the CPU

Sample Price

e-CAM84_CUONX is an 8 MP MIPI CSI-2 camera that features an electronic rolling shutter 1/2.9-inch AR0830 sensor from onsemi®. It is designed to fit seamlessly with the NVIDIA® Jetson Orin™ NX/Orin Nano™ development kit. This camera can detect visible motion by leveraging the cutting-edge wake-on motion/motion detection feature.

e-CAM84_CUONX is also equipped with an onboard high-performance ISP - with a 1.4μm x 1.4μm back side illuminated (BSI) sensor for delivering image output at a resolution of 4K. So, it is an ideal solution for remote patient monitoring systems, driver monitoring systems, and IVA applications like ANPR. Furthermore, the 8 MP camera incorporates a standard M12 lens holder, allowing customers to use customized optics or lenses to suit their needs.

  • Key features:
    • Frame Rate:
      • Full HD @ 120 fps & 8MP (4K) @ 30 fps
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 15cm
  • Sensor features:
    • Sensor: AR0830 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.9"
    • Output Format: Uncompressed UYVY format
    • Pixel Size: 1.4μm x 1.4μm Back Side Illuminated (BSI)
    • Dynamic Range: 73 dB
    • SNR: 39.9 dB
    • Sensor Active Area: 3840 (H) x 2160 (V)
    • Array Size: : 3840 (H) x 2160 (V)
    • Holder: M12 (S-Mount)
    • FOV: 99.079°(D), 84.291°(H), 45.321°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3 V +/- 5%
    • Operating Temperature Range: -30°C to +70°C
    • Typical power consumption: TBD
    • Size in mm (l x b): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • * - Not available with the off-the-shelf version. Please contact camerasolutions@e-consystems.com for more details.
Linux camera driver:

e-CAM84_CUONX camera requires a custom camera driver for NVIDIA® Jetson Orin Nano™ / Orin™ NX Developer Kit. e-con Systems™ provides the camera driver along with the camera board.

  • Supported Jetpack & L4T Version
    • NVIDIA® Jetson™ ORIN NX / Orin nano - Jetpack 5.1.2 L4T35.4.1
  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Camera Controls:
    • Exposure (both manual and automatic)
    • Sensor Gain
    • Exposure Time
    • Frame Rate
    • Sensor Mode Index
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
  • e-CAM85_CUMI0830C_MOD - 8MP MIPI Camera Module with lens
  • Adaptor board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM84_CUONX - Customization for other Application Processor platforms:

e-con provides customization for e-CAM84_CUONX on any application platform as per customer requirements.

e-CAM84_CUONX - Customization

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization
  • For C/CS mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
  • Support for other processor platforms
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
