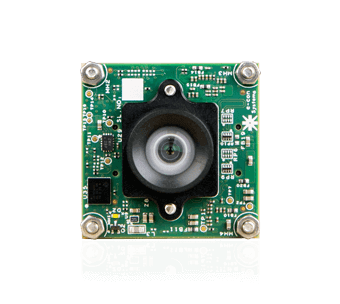

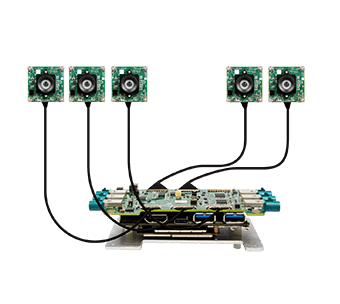

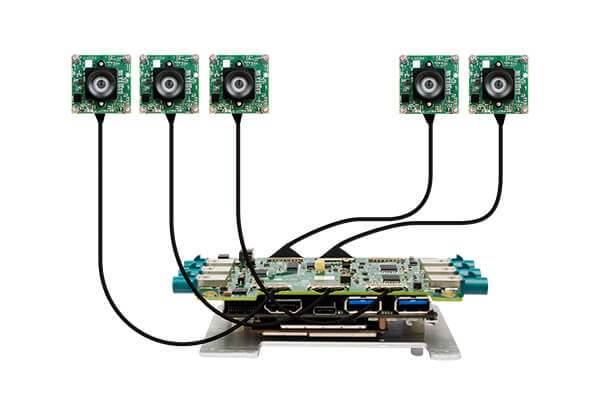

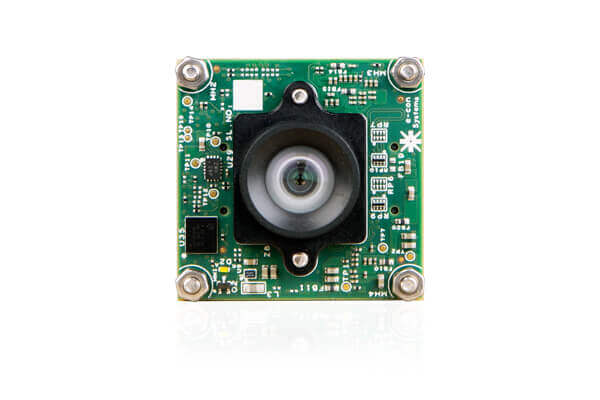

e-CAM84_CUQRB5 - 4K AR0830 Camera for Qualcomm® Robotics RB5 Dev Kit (upto 5 cameras)

Highlights:

  • Houses e-CAM85_CUMI0830C_MOD - 8MP camera based on onsemi® AR0830 sensor
  • Wake on Motion -Enables sensor to remain in low-power state until motion detected *
  • Super Low Power Mode*
  • Plugs into Qualcomm® Robotics RB5 Development Kit
  • High-speed MIPI CSI-2 interface to connect with the CPU

Sample Price

e-CAM84_CUQRB5 is an 8 MP MIPI CSI-2 multi-camera with a 1/2.9-inch AR0830 back side illuminated (BSI) electronic rolling shutter sensor from onsemi®. This camera is designed to seamlessly integrate with the Qualcomm® Robotics RB5 development kit. It excels in providing image output at a resolution of 4K with great details.

e-CAM84_CUQRB5, with its fixed focus capability and cutting-edge wake-on motion/motion detection feature, can easily detect visible motion. Hence, this camera is perfectly suited for applications like remote patient monitoring systems, driver monitoring systems, and IVA applications like ANPR. The camera also has a standard M12 lens holder, allowing the customization of optics or lenses to suit specific application needs.

  • Key features:
    • Frame Rate: Full HD @ 120 fps & 8MP (4K) @ 30 fps
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: Micro coaxial cable with I-PEX (CN2) connector
    • Cable Length: 30cm (1m**)
  • Sensor features:
    • Sensor: AR0830 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter type: Electronic Rolling Shutter
    • Optical Format: 1/2.9"
    • Output Format: Uncompressed UYVY
    • Pixel size: 1.4 μm x 1.4 μm Back Side Illuminated (BSI)
    • Sensor Active Area: 3840 (H) x 2160 (V)
    • Array Size: 3840 (H) x 2160 (V)
    • SNR: 39.9dB
    • Dynamic Range: 73dB
    • Holder: M12 (S-Mount)
    • FOV: 83.08°(D), 73.44°(H), 45.56°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: TBD
    • Typical power consumption: TBD
    • Size in mm (l x b): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • * - Not available with the off-the-shelf version. Please contact camerasolutions@e-consystems.com for more details.
  • ** - 1-meter cable will be available on special request.
  • gstreamer based camera application for:
    • Camera streaming over Ethernet and WIFI (H.264 encoded)
    • HDMI streaming (NV12)
    • Snapshot image capture in JPEG and RAW Bayer
    • H.264 and H.265 encoded video recording
  • Camera Controls:
    • Gamma
    • Denoise
    • Gain
    • Exposure etc.
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM84_CUQRB5 - Customization for other Application Processor platforms:

e-con provides customization for this e-CAM84_CUQRB5 on any application platform as per customer requirements.

e-CAM84_CUQRB5 Customization:

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization for C/S mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
  • Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
