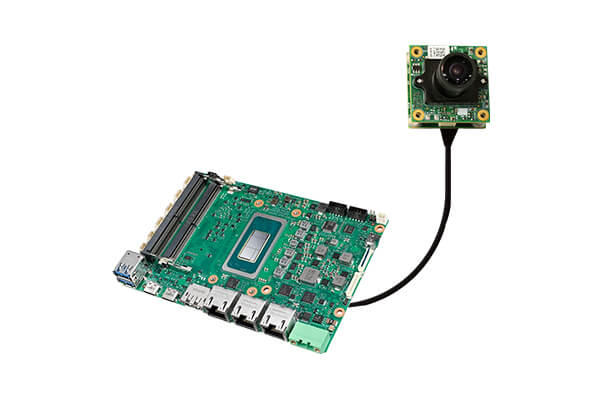

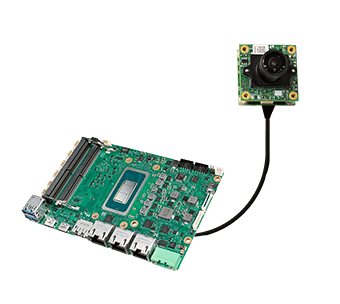

e-CAM25_CUR360 - FHD AR0234 Global Shutter Camera for Advantech AFE-R360

Highlights:

  • Houses e-CAM217_CUMI0234_MOD - Full HD Camera Module with S-mount lens holder
  • Global Shutter
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Plugs in to Advantech AFE-R360 Dev Kit
  • On-board high-performance ISP

Sample Price

ContactUs

e-CAM25_CUR360 is a Full HD MIPI CSI-2 global shutter camera for Advantech AFE-R360 Dev kit platforms. This camera is based on a 1/2.6" AR0234CS global shutter sensor with a fine-tuned image signal processor (ISP).

Its global shutter capability along with a 120 fps frame rate helps to minimize frame-to-frame distortion and reduces motion artifacts while capturing scenes with moving targets.

The high Signal to Noise Ratio (SNR) of this camera helps to capture excellent images even in low-light conditions.

  • Key features:
    • Frame Rate:
      • HD @ 120 fps, Full HD @ 70fps & 2.3MP @ 60fps
    • Uncompressed UYVY streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: Micro coaxial cable with I-PEX connector
    • Cable Length: 30cm
  • Sensor features:
    • Sensor: AR0234 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 2.3MP
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: Uncompressed UYVY format
    • Pixel Size: 3μm x 3μm
    • SNR: 38 dB
    • Dynamic Range: 71.4 dB
    • Sensor Active Area: 1920H x 1200V
    • Array Size: 1920H x 1200V
    • Holder: M12 (S-Mount)
    • FOV: 128.2°(D), 104.6°(H), 61.6°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3V +/- 5%
    • Operating Temperature Range: -30°C to +70°C
    • Typical power consumption: TBD
    • Size in mm (l x b x h): 30mm x 30mm
  • Miscellaneous:
    • Compliance: RoHS
  • gstreamer based camera application for:
    • Camera streaming over Ethernet and WIFI (H.264 encoded)
    • H.264 and H.265 encoded video recording
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
  • e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with lens
  • Adaptor board
  • Micro Coaxial Cable
  • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

Targeted Applications
