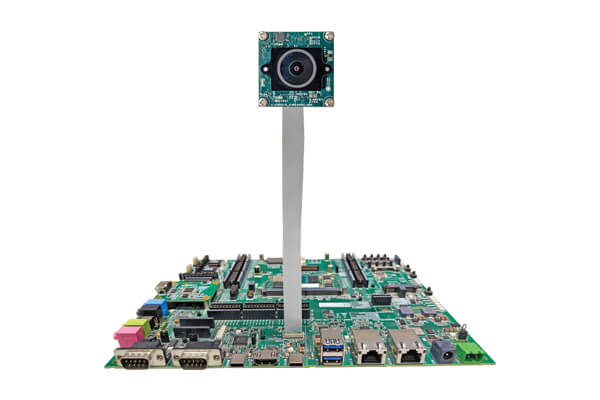

e-CAM37_CUiMX8 is a 3.2MP global shutter MIPI color camera from e-con Systems®. This camera can be directly interfaced with the Toradex® Verdin i.MX 8M Plus SoM and the Toradex® Verdin development kit using an FFC cable through the CAM0 and CAM1 connectors.

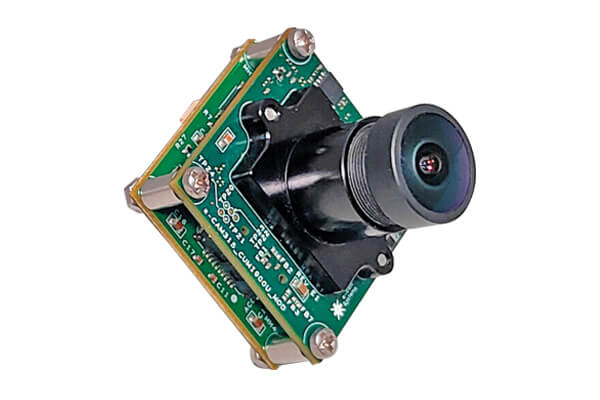

The camera is based on the 1/3.1" Sony® IMX900 image sensor, offering high-quality imaging with global shutter capability to eliminate motion blur — ideal for capturing fast-moving objects. It features an S-mount (M12 board lens) lens holder, a widely used compact lens mount for embedded vision applications, offering flexibility in choosing from a range of compatible lenses.
- Key features:
-
- Frame Rate:
- Frame Rate: HD @ 140 fps, Full HD @ 100 fps & 3MP @ 72 fps
- YUYV Streaming
- Standard M12 lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Frame Rate:
- Interface:
-
- Interface: MIPI CSI-2
- Connector: FPC flex cable
- Cable Length: 15cm
- Module features:
-
- Sensor: Sony® Pregius S IMX900
- Focus Type: Fixed focus
- Sensor Resolution: 3.2MP
- Chroma: Color
- Shutter Type: Global Shutter
- Optical Format: 1/3.1"
- Output Format: RGB RAW 8-bit/12-bit
- Pixel Size: 2.25 μm x 2.25 μm
- Sensor Active Area: 2064 (H) x 1552 (V)
- Holder: M12 (S-Mount)
- FOV: 166° (D), 120° (H), 89° (V) (with the lens provided by e-con)
- Electrical & Mechanical:
-
- Operating Voltage: 3.3 V +/- 5%
- Operating Temperature Range: -30°C to 70°C
- Power requirements: 0.432W
- Size in mm (l x b ): 30 x 30 mm
- Miscellaneous:
-
- Compliance: RoHS
Linux camera driver:
e-con Systems provides sample applications that demonstrate the features of this camera.
- V4L2 Linux driver for MIPI CSI-2 camera module
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
Kit contents:
- e-CAM315_CUMI900_MOD - 3.2MP Global shutter MIPI camera module with lens
- Adaptor board
- Flex Cable (15 cm)
- Linux Driver & Sample Application
- Please contact camerasolutions@e-consystems.com for any customization or porting of the camera driver to your requirements.
e-CAM37_CUiMX8 - Customization for other Application Processor platforms:
e-con provides customization for e-CAM37_CUiMX8 on any application platform as per customer requirements.
e-CAM37_CUiMX8 - Customization
e-con provides customization for the following requirements:
- PCB form-factor customization for any shape, connector and orientation
- Lens holder customization
- For C/CS mount lens holder
- Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
