e-CAM26_CUiMX8 - AR0234 Global shutter Camera for i.MX8 Processors

Toradex Cameras

Highlights:

  • Houses e-CAM217_CUMI0234_MOD - Full HD fixed focus MIPI Camera Module
  • Global Shutter
  • Plugs directly into Toradex® Verdin carrier board based on iMX8M Plus SoM
  • Uses NXP ISP for image processing
  • High-speed MIPI CSI-2 interface to connect with the CPU

Sample Price

ContactUs

Documents

Download Document

e-CAM26_CUiMX8 is a 2.3 MP global shutter CMOS color camera based on the AR0234 CMOS color image sensor from onsemi®. This global shutter camera with a high frame rate of 120 fps can capture non-distorted images of moving objects without wobble or skew. This camera uses NXP’s high-performance ISP to perform auto-exposure and auto-white balance functions. It also comes with an M12 lens holder which offers customers an opportunity to use the lens of their choice.

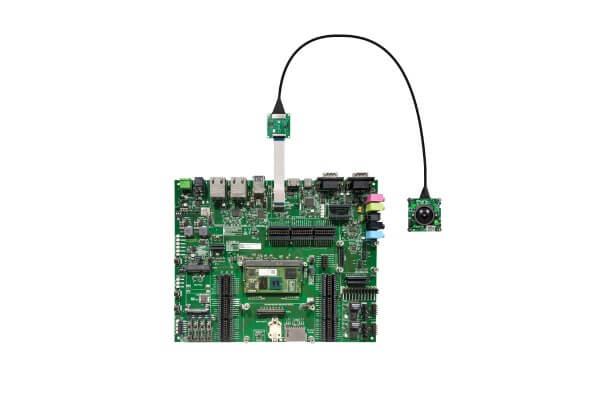

e-CAM26_CUiMX8 supports the MIPI CSI-2 interface for reliable streaming in uncompressed UYVY format at 120 fps and is compatible with the Toradex® Verdin i.MX8M Plus SoM and the Toradex® Verdin development kit using an FFC cable.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Frame Rate: HD @199fps, Full HD @ 133 fps & 2.3MP @ 120 fps
      Refer pdfDatasheet for complete frame rate details.
    • Uncompressed UYVY Streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC flex cable
    • Cable Length: 15cm
  • Module features:
    • Sensor: Onsemi AR0234
    • Focus Type: Fixed focus
    • Sensor Resolution: 2.3MP
    • Chroma: Color
    • Shutter Type: Global Shutter
    • Optical Format: 1/2.6"
    • Output Format: 8-bit/10-bit
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 1920 (H) x 1200 (V)
    • Holder: M12 (S-Mount)
    • FOV: 133.9°(D), 110.4°(H), 67°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3 V +/- 5%
    • Operating Temperature Range: -30°C to 70°C
    • Power requirements: 0.475W
    • Size in mm (l x b ): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
Linux camera driver:

e-con Systems provides sample applications that demonstrate the features of this camera. However, this camera can also be utilized by any V4L2 application.

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download 3MP Documents

Kit contents:
  • e-CAM217_CUMI0234_MOD - 2MP Global shutter MIPI camera module with lens
  • Camera Adaptor board
  • Ixora adaptor board
  • Flex Cable (15 cm)
  • Linux Driver & Sample Application
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM26_CUiMX8 - Customization for other Application Processor platforms:

e-con provides customization for e-CAM26_CUiMX8 on any application platform as per customer requirements.

e-CAM26_CUiMX8 - Customization

e-con provides customization for the following requirements:

  • PCB form-factor customization for any shape, connector and orientation
  • Lens holder customization
  • For C/CS mount lens holder
  • Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
