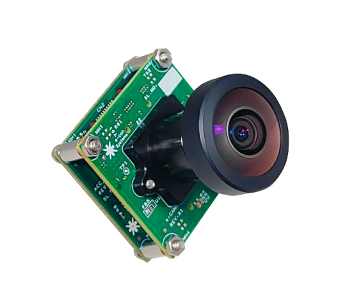

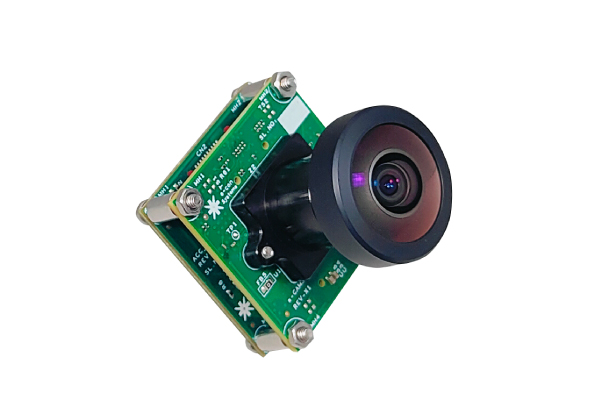

e-CAM31_CUTDA4 - SONY® ISX031 120dB HDR camera for Texas Instruments® SK-TDA4VM

Highlights:

  • Houses 3MP Sony® ISX031 sensor incorporating sub-pixel technology
  • High Dynamic Range (HDR) up to 120dB + LFM
  • High-speed MIPI CSI-2 interface
  • On-board high performance ISP
  • Plugs into Texas Instruments® SK-TDA4VM

Sample Price

ContactUs

Documents

Download Document

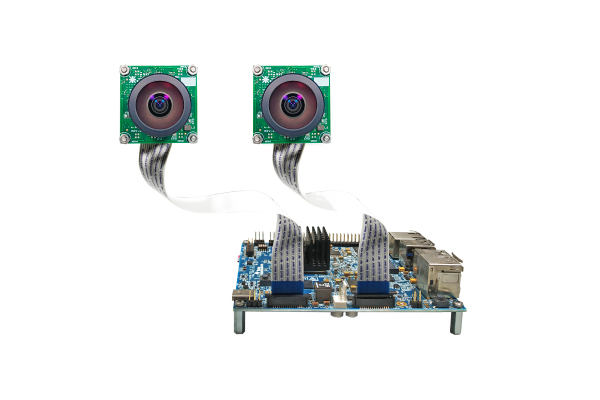

e-CAM31_CUTDA4 is a 3MP HDR MIPI camera designed for seamless integration with Texas Instruments™ SK-TDA4VM (TDA4VM) processor starter kit. The camera connects to the starter kit through a 2-lane MIPI CSI-2 interface using the Raspberry Pi camera connector.

The camera is based on the Sony® ISX031 automotive-grade CMOS image sensor with a 1/2.42" optical format, delivering 3MP resolution (1920 × 1536) at up to 30 fps. It supports 120 dB HDR imaging, which enables clear image capture in challenging lighting conditions. In addition, the sensor features LED Flicker Mitigation (LFM) to ensure stable and flicker-free imaging under artificial lighting environments.

e-CAM31_CUTDA4_CHLC outputs uncompressed UYVY video format and is supported by Linux V4L2 drivers, allowing evaluation using standard V4L2-based applications. The camera also features a standard M12 (S-mount) lens holder, giving customers the flexibility to use customized optics based on their application needs. With its compact form factor and HDR capability, this camera is well suited for embedded vision and industrial imaging applications.

Refer pdfDatasheet for complete frame rate details.

  • Key Features:
    • Frame rate: Full HD @ 30 fps, 3MP @ 30 fps
      • Refer pdfDatasheet for complete frame rate details.
    • Uncompressed UYVY streaming
    • S-mount interchangeable lens holder for flexibility to choose a lens as per application requirements.
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: MIPI CSI-2
    • Connector: FPC Cable
    • Cable Length: 15cm
  • Module Features:
    • Sensor: ISX031 from Sony®
    • Focus Type: Fixed focus
    • Focus Distance: 1m to Infinity
    • Sensor Resolution: 3MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.42"
    • Output Format: YUV
    • Pixel Size: 3μm x 3μm
    • Sensor Active Area: 1937 (H) x 1553 (V)
    • Array Size: 1937 (H) x 1553 (V)
    • Dynamic Range: Max upto 120 dB
    • Lens Holder: M12 (S-Mount)
    • FOV: (with the lens provided by e-con)
      • For Narrow Lens: 54.04°(H), 42.86°(V), 70.17°(D)
      • For Wide Lens: 128.7°(H), 98.7°(V), 170.1°(D)
  • Electrical & Mechanical:
    • Operating Voltage: 3.3 V +/- 5%
    • Operating Temperature Range: -40°C to 85°C
    • Typical power consumption: 1.2W
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • e-con Systems provides Gstreamer and V4L2 commands that demonstrate the features of this camera. However, this camera can also be utilized by any V4L2 application.
  • Linux camera driver:
    • V4L2 Linux driver for MIPI CSI-2 camera module:
      • Video preview
      • Still Image capture
      • Camera controls via IOCTLs
    • Camera Controls:
      • Brightness
      • Contrast
      • Saturation
      • Sharpness
      • Hue
      • Exposure Auto
      • Exposure Absolute
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download e-CAM31_CUTDA4 Documents

Kit Contents
  • 3MP ISX031 MIPI Camera Module with lens
  • Adaptor board
  • FPC cable (15cm)
  • Linux Driver

Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
