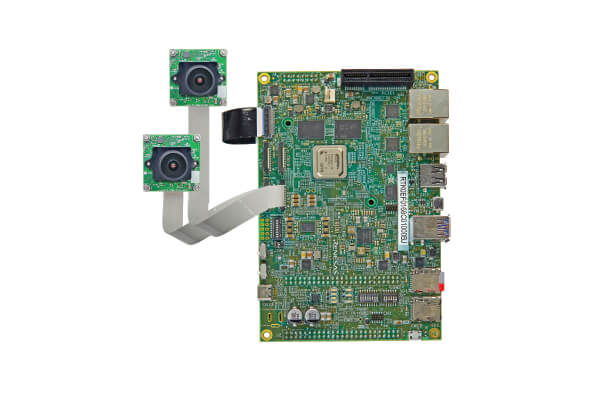

e-CAM37_CURZH - 3MP Sony® Pregius S IMX900 Color Camera for Renesas RZ/V2H

• Key Features:
• • Frame Rate: Streams 3MP @ 70fps, FullHD @ 100fps and HD @ 140fps
    • Refer Datasheet for complete frame rate details.
  • High speed 4-lane MIPI CSI-2 interface
  • Standard M12 lens holder for use with customized optics or lenses for various applications
  • Lightweight, versatile, and portable multi-board solution
• Interface:
• • Interface: 4-Lane MIPI CSI-2
  • Connector: 22pin FPC connector
  • Cable length: 15cm
• Sensor Features:
• • Sensor: Sony® Pregius S IMX900
  • Focus Type: Fixed focus
  • Sensor Resolution: 3.2MP
  • Chroma: Color
  • Shutter Type: Global Shutter
  • Optical Format: 1/3.1"
  • Output Format: RAW 12-bit
  • Pixel Size: 2.25 μm x 2.25 μm
  • Sensor Active Area: 2064 (H) x 1552 (V)
  • Holder: M12 (S-Mount)
  • FOV: 111.91°(D), 89.27°(H), 65.03°(V) (with lens provided by e-con)
• Electrical and Mechanical:
• • Operating voltage: 3.3V +/- 5%
  • Operating temperature: -30°C to 70°C
  • Typical power consumption: 1.11W
  • Size in mm (l x b): 30 x 30 mm
• Miscellaneous:
• • Compliance: RoHS

• This camera can be utilized by any V4L2 application.
• Supported Kernel Version:
  • Renesas RZ/V2H - AI SDK v5.20 / Kernel 5.10
• Linux camera driver:
  • V4L2 Linux driver for MIPI CSI-2 camera module:
  • • Video preview
    • Still Image capture
    • Camera controls via IOCTLs

Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

Kit Contents

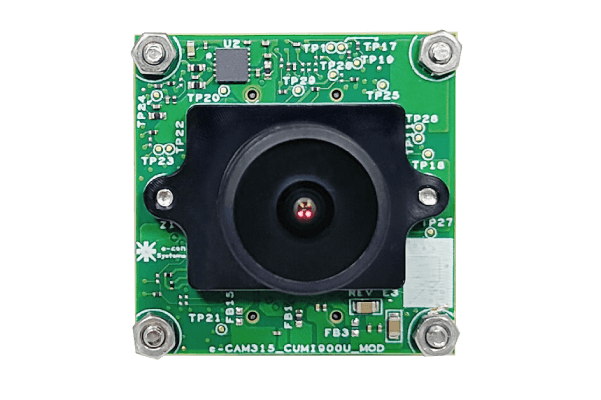

• e-CAM315_CUMI900_MOD - 3 MP Sony® Pregius S™ IMX900 MIPI camera module with lens
• Adaptor board
• FPC cable (15cm)
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
