STURDeCAM31_CURZH - 3MP Sony ISX031 120dB HDR camera for Renesas RZ/V2H

Overview

STURDeCAM31_CURZH is a small form factor GMSL2™ IP69K HDR camera powered by a 1/2.42" Sony® ISX031 sensor. This automotive grade 3MP CMOS sensor, paired with a well-tuned Image Signal Processor (ISP), produces exceptional image quality at low lighting conditions. Its 120dB High Dynamic Range (HDR) capability ensures reliable images even in challenging outdoor light conditions. It also features LED Flicker Mitigation (LFM) to guarantee accurate capture of images with pulsed light sources like LEDs.

This camera, which comes with an IP69K-rated enclosure, is supplied with an IP69K M12 lens that is focused and glued in our factory. Additionally, this camera supports both 3-meter or 15-meter coaxial cables.

Refer Datasheet for complete frame rate details.

Specifications

Key Features:
- Frame rate:
  - 920 x 1080 @ 30fps (FHD resolution)
  - 1920 x 1536 @ 30fps ( 3 MP resolution)
- Uncompressed UYVY streaming
- High-speed MIPI CSI-2 interface to connect with the CPU
- Lightweight, versatile, and portable design
Interface:
- Interface: GMSL2
- Connector: FAKRA connector
- Cable Length: 15m
Module Features:
- Sensor: ISX031 from Sony®
- Focus Type: Fixed focus
- Focus Distance: 1.28m to Infinity
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.42"
- Output Format: UYVY
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1937 (H) x 1553 (V)
- Dynamic Range: Max upto 120 dB
- Lens Holder: M12 (S-Mount)
- FOV:
  - 54.04°(H), 42.86°(V), 70.17°(D) (Default lens provided by e-con)
  - 128.7°(H), 98.7°(V), 170.1°(D) (Please contact camerasolutions@e-consystems.com)
Electrical & Mechanical:
- Operating Voltage: 12V with +/- 5%
- Operating Temperature Range: -40°C to 85°C
- Typical power consumption: TBD
- Size in mm (l x b):
  - With enclosure: 25 x 25 x 43.8 mm (without lens)
- Board weight : 40 Grams (with lens)
Standards and Compliance:
- FCC Class-B, RoHS
- For application specific standards, refer here » refer here»
- IP69K Certified (Dust tight with protection against close-range high pressure, high temperature spray downs)

Standards & Compliance

Emission standards:

S.No	Certification	Test Specifications
1	FCC Part 15, Subpart B, Class-B	Test done according to Federal Communications Commission's (FCC) regulations for electronic devices under subpart B
2	CE & ROHS

Application Specific Standards:

S.No	TARGETED APPLICATION	RADIATED EMISSION	RADIATED IMMUNITY	ENVIRONMENTAL
1	Delivery robots	CISPR-32 Electromagnetic compatibility of multimedia equipment - Emission requirements 30MHz to 6000MHz	EN 61000-4-3:2020 Electromagnetic compatibility (EMC) - Part 4-3 : Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test 80MHz to 6000MHz @ 3V/m	ISO 16750-4 Road vehicles Environmental conditions and testing for electrical and electronic equipment Part 4: Climatic loads ISO 16750-3 Road vehicles Environmental conditions and testing for electrical and electronic equipment Part 3: Mechanical loads
2	Warehouse robots
3	ADAS	CISPR-25-6.4 Vehicles, boats, and internal combustion engines - Radio disturbance characteristics - Limits and methods of measurement for the protection of on- board receivers, 30 MHz to 1000 MHz	ISO 11452-2 Road vehicles Component test methods for electrical disturbances from narrowband radiated electromagnetic energy Part 2: Absorber-lined shielded enclosure 200MHz to 2000MHZ @30V/m. ISO 11452-4 Road vehicles Component test methods for electrical disturbances from narrowband radiated electromagnetic energy Part 4: Bulk current injection (BCI) 20MHz to 200MHz @60mA
4	Autonomous vehicle
5	Road vehicles
6	Remote driving
7	Earth moving and building construction machinery	ISO 14982 Agricultural and forestry machinery — Electromagnetic compatibility — Test methods and acceptance criteria from 30MHz to 1000MHz	ISO 13766-1 Earth-moving and building construction machinery — Electromagnetic compatibility (EMC) of machines with internal electrical power supply 200MHz to 2000MHz @24V/m
8	Agriculture and forest machinery	ISO 13766-1 Earth-moving and building construction machinery — Electromagnetic compatibility (EMC) of machines with internal criteria electrical power supply 30 to 1000MHz	ISO14982 Agricultural and forestry machinery — Electromagnetic compatibility - Test methods and acceptance criteria 200MHz to 2000MHz @ 24v/m.

Note: The product has been qualified for above standards with simulated control unit. Final Certification to be performed with targeted system & application.

Software

This camera can be utilized by any V4L2 application.
Supported Kernel Version:
- Renesas RZ/V2H - AI SDK v6.00 / Kernel 6.1
Linux camera driver:
- V4L2 Linux driver for MIPI CSI-2 camera module:
- - Video preview
  - Still Image capture
  - Camera controls via IOCTLs
Please contact camerasolutions@e-consystems.com for any customization requirements.

Documents

Datasheet

STURDeCAM31_CURZH Datasheet

STURDeCAM31_CURZH Lens Datasheet

User Manual

STURDeCAM31_CURZH Getting Started Manual

STURDeCAM31_CURZH Linux App User Manual

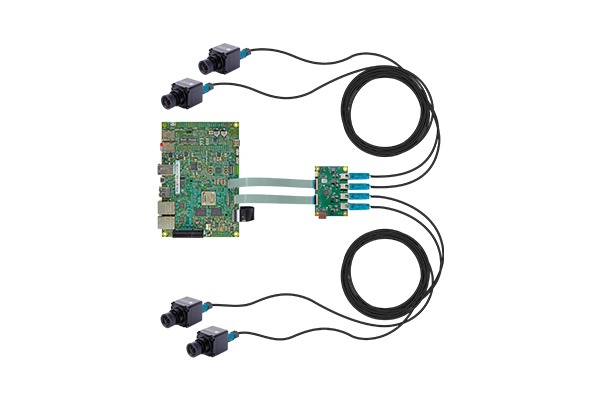

Kit Contents

Kit Contents:

STURDeCAM31 - ISX031 3MP GMSL2 HDR camera with IP69K Enclosure with lens
3 meters coaxial cable
Deserializer board with 4 Fakra connectors
Flex Cable (15 cm)
Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

Customization

STURDeCAM31_CURZH - Customization for other Application Processor platforms:

e-con provides customization for STURDeCAM31_CURZH on any application platform as per customer requirements.

STURDeCAM31_CURZH - Customization:

e-con provides customization for the following requirements:

PCB form-factor customization for any shape, connector and orientation
Lens holder customization
For C/CS mount lens holder
Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
Please contact camerasolutions@e-consystems.com for customization requirements.
