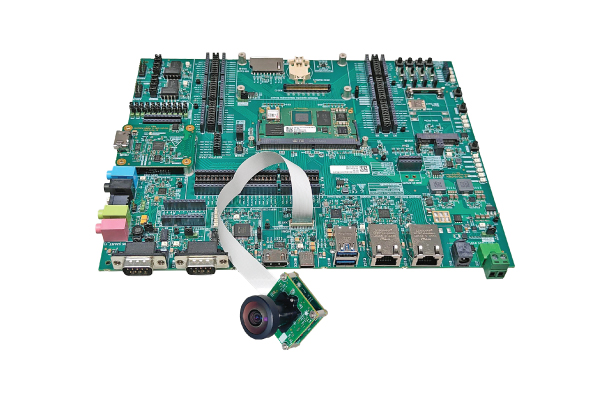

e-CAM31_CUiMX95 is a 3MP, 120dB High Dynamic Range (HDR) MIPI CSI-2 color camera designed for seamless integration with the NXP® i.MX95-based Toradex® Verdin evaluation kit.
Powered by the automotive-grade 1/2.42" SONY® ISX031 CMOS image sensor and featuring an in-built Image Signal Processor (ISP), this camera provides exceptional image clarity even under highly volatile lighting conditions. It comes equipped with an advanced LED Flicker Mitigation (LFM) feature, ensuring stable, flicker-free imaging against modern LED light sources and traffic signals.
The e-CAM31_CUiMX95 streams uncompressed video in UYVY format and utilizes an S-mount (M12) lens holder, offering the versatile flexibility needed for engineering specialized embedded vision solutions.
Refer
Datasheet for more details.
- Key features:
-
- Frame Rate: 1920 x 1536 @60 fps, 1920 x 1080 @60 fps
ReferDatasheet for complete frame rate details.
- YUV Streaming
- Standard M12 lens holder for use with customized optics or lenses for various applications
- Lightweight, versatile, and portable design
- Frame Rate: 1920 x 1536 @60 fps, 1920 x 1080 @60 fps
- Interface:
-
- Interface: MIPI CSI-2
- Connector: FPC flex cable
- Cable Length: 15cm
- Module features:
-
- Sensor: ISX031 from Sony®
- Focus Type: Fixed focus
- Focus Distance: 1m to Infinity
- Sensor Resolution: 3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/2.42"
- Output Format: YUV
- Pixel Size: 3μm x 3μm
- Sensor Active Area: 1937 (H) x 1553 (V)
- Array Size: 1937 (H) x 1553 (V)
- Dynamic Range: Max upto 120 dB
- Lens Holder: M12 (S-Mount)
- FOV: TBD
- Electrical and Mechanical:
-
- Operating Voltage: 3.3 V +/- 5%
- Operating Temperature Range: -30°C to 70°C
- Power requirements: TBD
- Size in mm (l x b ): 30 x 30 mm
- Miscellaneous:
-
- Compliance: RoHS
Linux camera driver:
e-con Systems provides sample applications that demonstrate the features of this camera. However, this camera can also be utilized by any V4L2 application.
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM31_CUiMX95
- Hardware
-
- 3MP ISX031 MIPI Camera Module
- Adaptor board
- Flex Cable (15 cm)
- Linux Driver & Sample Application
- Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
e-CAM31_CUiMX95 - Customization for other Application Processor platforms:
e-con provides customization for e-CAM31_CUiMX95 on any application platform as per customer requirements.
e-CAM31_CUiMX95 – Customization
e-con provides customization for the following requirements:
- PCB form-factor customization for any shape, connector and orientation
- Lens holder customization
- For C/CS mount lens holder
- Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
- Please contact camerasolutions@e-consystems.com for customization requirements.
