eSOMiMX7 - iMX7 System on Module

NXP Logo

eSOMiMX7 is a low power and small form factor System-on-Module based on NXP / Freescale's i.MX7 Solo / Dual core ARM® Cortex™-A7 @ 1GHz along with dedicated real time ARM® Cortex™-M4 MCU.

As part of the "Productized Services" program of e-con Systems™, the eSOMiMX7 is aimed at reducing the time-to-market for our customers by making use of the stabilized and ready-to-market eSOMiMX7 modules in the customer applications. eSOMiMX7 modules with various configurations and OS support will enable our customers to focus on their application design rather than spending large unnecessary engineering man-hours involved in CPU/memory subsystem design.

Related Blogs

bullateSOMiMX7 based IoT gateway

bullatBuild Smart Gateway Using eSOMiMX7

iMX7 SOM – eSOMiMX7 Features

  • NXP/Freescale i.MX7 Solo/Dual ARM® Cortex™ A7 @ 1GHz with Single core ARM® Cortex™ M4 MCU @ 200 MHz
  • 32 bit LPDDR3 ranging from 256MB to 2GB
  • NAND flash ranging from 128MB to 4GB
  • eMMC flash (Dual core only) ranging from 4 GB to 64 GB
  • eSOMgears - Over-the-Air (OTA) Firmware Upgrade Solution
  • Wi-Fi 802.11 b/g/n & Bluetooth 4.1 BLE
  • Gigabit Ethernet (x2)
  • Deep Sleep Mode Current Consumption - 3mA
  • Supporting Operating Systems
    1. Linux
      • Kernel - v4.9.11
      • RootFS - Yocto Poky v2.2(Morty) based custom RootFS
    2. Free RTOS on M4 Core - Version 8.0
  • Temperature Range:
    • -20°C to 85°C (Industrial)
    • 0°C to 70°C (Commercial)
  • Form Factor : 55mm X 30mm
  • Availability - Until 2027

Interfaces Supported on i.MX7 SOM (eSOMiMX7):

  • Camera
    1. 24 bit Parallel Interface
    2. 2 lane MIPI CSI-2 Interface
  • Display
    1. 24 bit RGB
    2. MIPI DSI (x1)
    3. EPDC Display (e-Ink Display)
  • Networking
    1. WI-FI 802.11 b/g/n & Bluetooth 4.1 BLE
    2. Gigabit Ethernet (x2)
  • USB
    1. USB 2.0 Host(x1)
    2. USB 2.0 OTG(x1)
  • Miscellaneous
    1. CAN (x2)
    2. SDIO (x1)
    3. PCIe Gen2.0 (x1)
    4. Quad SPI (x1)
    5. SPI (x3)
    6. I2C (x2)
    7. UART (x4)
    8. GPIO
    9. ADC Inputs(x8)
    10. I2S

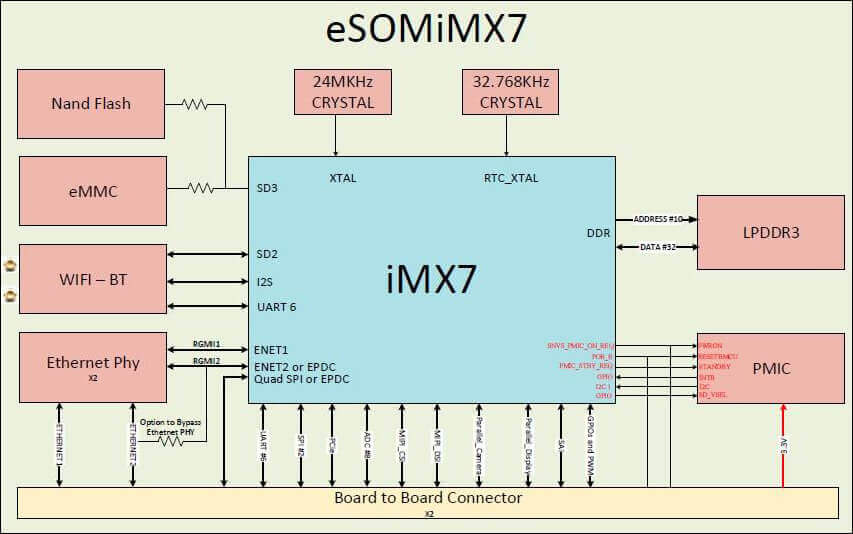

iMX7 SOM block diagram (eSOMiMX7)
eSOMiMX7 block diagram

Please contact sales@e-consystems.com for any customization.

Acacia - eSOMiMX7 Development Kit

e-con provides a Rapid development kit for eSOMiMX7 called Acacia. This Development kit features a carrier board around the eSOMiMX7 Module with peripherals.

For more information, Visit Acacia Development Kit

eSOMiMX7 software packages are coming soon

Download iMX7 Computer on Module – eSOMiMX7 Document:

pdf   eSOMiMX7 Datasheet

eSOMiMX7 can be customized with the following configuration.

Part Number Template: eSOMiMX7-Cx-Fxx-Rxx-WB-xE-IT

x-variants can be chosen from the following eSOMiMX7 Part Number Decoding Table.

eSOMiMX7-CD-F8G-R2G-WB-DE is available for samples from webstore
For the other configurations, the minimum order quantity (MOQ) is 100. please contact sales@e-consystems.com for more information.

Feature Options P/N code Notes
  CPU   i.MX7 Solo Core 800 MHz   CS
  i.MX7 Dual Core 1GHz   CD
  DDR SIZE   512MB   R512
  1 GB   R1G
  2 GB   R2G
  Storage   eMMC 4GB   F4G   Only For Dual
  eMMC 8GB   F8G
  eMMC 16GB   F16G
  eMMC 32GB   F32G
  eMMC 64GB   F64G
  NAND 128MB   N128
  NAND 512MB   N512
  NAND 1GB   N1G
  NAND 2GB   N2G
  NAND 4GB   N4G
  Wi-Fi/BT
  Not Present   -
  Wi-Fi 802.11 b/g/n and Bluetooth 4.1   WB
  Ethernet Port   Not Present   -
  Ethernet 1    SE
  Ethernet 2    DE    Only For Dual
  Fuse to Boot   Fuse to boot from eMMC   FE    Only For Dual
  Fuse to boot from SD    FS
  Fuse to boot from NAND    FN
  Not Fused    -
  Firmware version   Firmware version to be loaded into eMMC
(xx – Running number starts from 01)
  SWxx
  Temperature   Extended Temperature   ET    -20C to 85C
  Commercial    -    0C to 70C

Price

Camera Customization Contact

Targeted Applications

»  IoT Applications

»  Test and Measurement

»  Industrial HMI

»  eBook Reader
