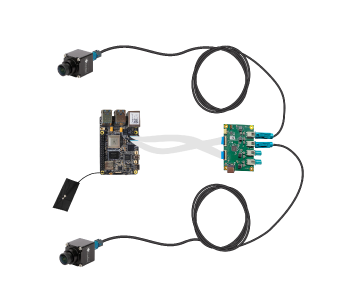

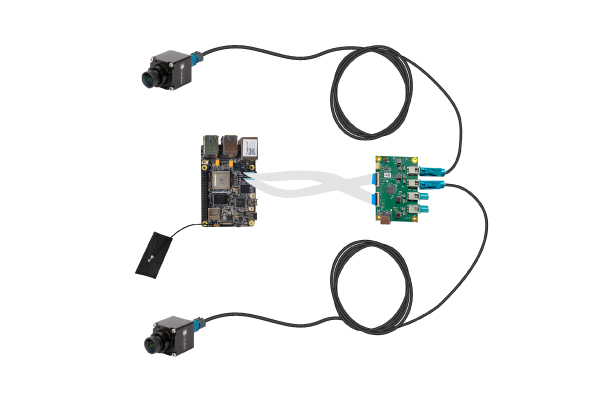

STURDeCAM31_CUAM6 - 3MP 120dB HDR Camera for TI^® AM67A (BeagleY-AI Kit)

• Key features:
• • Frame Rate: Streams 1920x1536 @60 fps, 1920x1080 @60 fps
    Refer Datasheet for complete frame rate details.
  • Output format: UYVY
  • S-mount IP69K compliant lens focused and glued at factory
  • Lightweight, versatile, and portable design
  • Small form factor
• Interface:
• • Interface: GMSL2
  • Connector: Fakra
  • Cable Length: upto 15m
• Module features:
• • Sensor: ISX031 from Sony®
  • Focus Type: Fixed focus
  • Focus Distance: 1.28m to Infinity
  • Sensor Resolution: 3MP
  • Chroma: Color
  • Shutter Type: Electronic Rolling Shutter
  • Optical Format: 1/2.42"
  • Output Format: UYVY
  • Pixel Size: 3μm x 3μm
  • Sensor Active Area: 1937 (H) x 1553 (V)
  • Dynamic Range: Max upto 120 dB
  • Lens Holder: M12 (S-Mount)
  • FOV:
    • 54.04°(H), 42.86°(V), 70.17°(D) (Default lens provided by e-con)
    • 128.7°(H), 98.7°(V), 170.1°(D) (Please contact e-con)
• Electrical & Mechanical:
• • Operating Voltage: 12V +/- 250mV
  • Operating Temperature Range: -40°C to 85°C
  • Typical power consumption: 1.86W (For each camera)
  • Size in mm (l x b ):
    • With enclosure - 25 x 25 x 43.8 mm (without lens)
    • Deserializer Board - 50 x 75 mm
  • Board weight : 40 Grams (with lens)
• Standards and Compliance:
• • FCC Class-B, RoHS
  • For application specific standards, refer here » refer here»
  • IP69K Certified (Dust tight with protection against close-range high pressure, high temperature spray downs)

Emission standards:

Note: The product has been qualified for above standards with simulated control unit. Final Certification to be performed with targeted system & application.

Linux camera driver:

Supported Kernel: Verified with Kernel Version 6.12 in pre-built images.

• V4L2 Linux driver for MIPI CSI-2 camera module:
• • Video preview
  • Still Image capture
  • Camera controls via IOCTLs/Media-Control
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

• STURDeCAM31 - ISX031 3MP GMSL2 HDR camera with IP69K Enclosure with lens
• 3 meters coaxial cable
• Deserializer board with 4 Fakra connectors
• Flex Cable (15 cm)
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

STURDeCAM31_CUAM6 - Customization for other Application Processor platforms:

e-con provides customization for STURDeCAM31_CUAM6 on any application platform as per customer requirements.

STURDeCAM31_CUAM6 – Customization

e-con provides customization for the following requirements:

• PCB form-factor customization for any shape, connector and orientation
• Lens holder customization
• For C/CS mount lens holder
• Interfacing with any Application Processor: NXP i.MX8 Series, NVIDIA Jetson Xavier NX, AGX ORIN/Xavier, ORIN NX/Nano, and any other processor
• Please contact camerasolutions@e-consystems.com for customization requirements.
