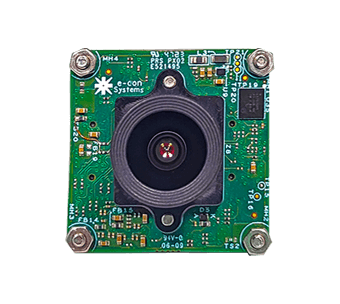

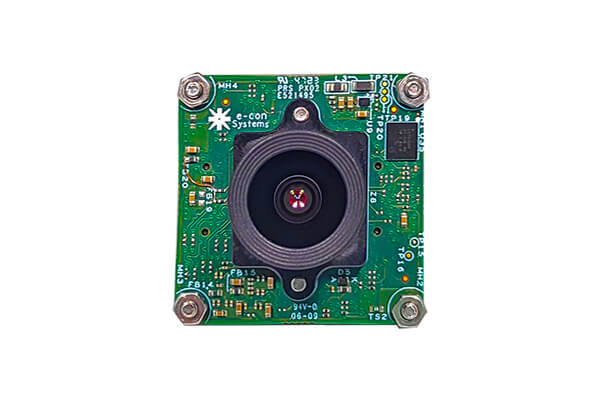

e-CAM84_CURZH - 8MP AR0830 Camera for Renesas RZ/V2H

Highlights

  • Houses e-CAM85_CUMI0830C_MOD - 8MP camera based on onsemi® AR0830 sensor
  • On-board high performance ISP
  • Plugs directly into the Renesas RZ/V2H development kit

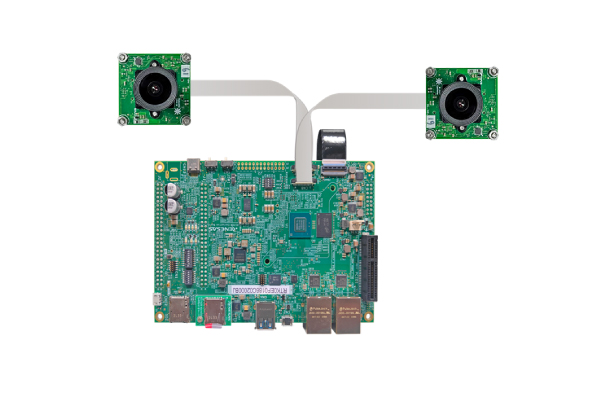

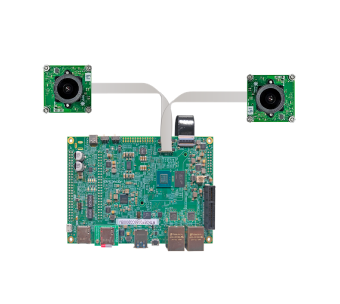

  • Multicamera support for RZ/V2H (upto 2 cameras)
  • BSI technology with superior low light performance

Sample Price

Documents

e-CAM84_CURZH is an 8MP (4K) custom lens camera module based on 1/2.9" AR0830 CMOS image sensor. e-CAM84_CURZH camera can be interfaced with connectors CN7 and CN8 of the Renesas RZ/V2H development kit. It features an onboard high-performance ISP which delivers images at a resolution of 4K with great details.

Refer pdfDatasheet for complete frame rate details.

  • Key features:
    • Frame Rate:
      • Full HD @ 60 fps & 8MP (4K) @ 30 fps
      Refer pdfDatasheet for more details.
    • High speed 4-lane MIPI CSI-2 interface
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable multi-board solution
  • Interface:
    • Interface: 4-Lane MIPI CSI-2
    • Connector: 22pin FPC connector
    • Cable length: 15cm
  • Module features:
    • Sensor: AR0830 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Shutter Type: Electronic Rolling Shutter
    • Chroma: Color
    • Optical Format: 1/2.9"
    • Output Format: Uncompressed UYVY
    • Pixel Size: : 1.4μm x 1.4μm Back Side Illuminated (BSI)
    • Sensor Active Area: 3840(H) x 2160 (V)
    • Array Size: 3840 (H) x 2160 (V)
    • SNR: 39.9 dB
    • Dynamic Range: 73 dB
    • Holder: M12 (S-Mount)
    • FOV: 99.079°(D), 84.291°(H), 45.321°(V) (with the lens provided by e-con)
  • Electrical and Mechanical:
    • Operating voltage: 3.3V +/- 5%
    • Operating temperature: -30°C to 70°C
    • Typical power consumption - TBD
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS
  • Supported Kernel Version:
    • RZ/V2H AI SDK v5.00 / Kernel 5.10
  • Linux camera driver:
    • V4L2 Linux driver for MIPI CSI-2 camera module:
      • Video preview
      • Still Image capture
      • Camera controls via IOCTLs

Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download Full HD Camera Documents

Kit Contents
  • e-CAM85_CUMI0830C_MOD - 8MP AR0830 Module with Lens
  • Adaptor board
  • FPC cable (15cm)
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
