e-CAM81_CURBC - 8MP AR0821 HDR MIPI Camera for Raspberry Pi 5 Development Kit

Raspberry Pi Cameras

Highlights

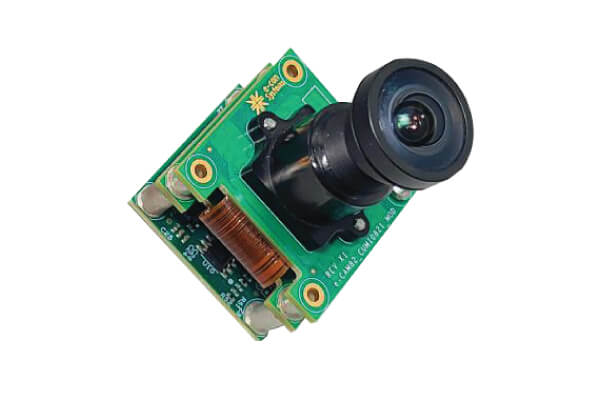

  • Houses e-CAM82_CUMI0821_MOD - 8MP (4K) AR0821 Camera Module
  • Plugs directly into the Raspberry Pi 5 development kit.
  • In-built ISP

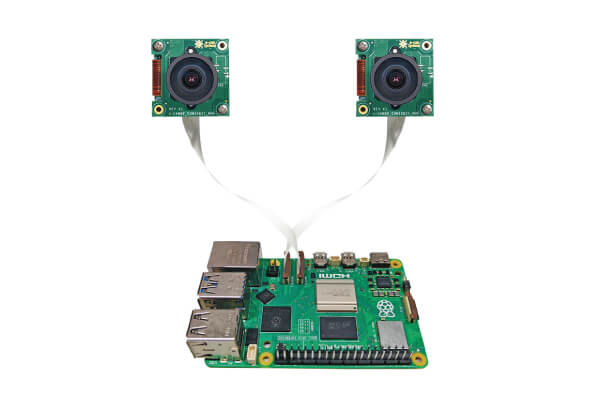

  • Multicamera support for RPI 5 (upto 2 cameras)

Sample Price

ContactUs

Documents

Download Document

e-CAM81_CURBC is an HDR, 8MP (4K) custom lens camera based on 1/1.7" AR0821 CMOS image sensor from onsemi®.

This 4K camera has a compact form factor and has an M12 lens holder which gives customers an opportunity to choose their own optics. The HDR capability of this 4K camera helps in producing exceptionally clear and sharp images in challenging lighting conditions.

e-CAM81_CURBC utilizes 4-lane MIPI CSI-2 interface to connect 8MP camera modules with the Raspberry Pi 5 - a powerful and compact computing platform is perfect for building next-generation AI-powered embedded vision applications.

Refer pdfDatasheet  for more details.

  • Key features:
    • Frame Rate: Streams Full HD @60 fps & 8MP @ 30 fps
      Refer pdfDatasheet for more details.
    • Output format: Uncompressed UYVY format
    • High speed 4-lane MIPI CSI-2 interface
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable multi-board solution
  • Interface:
    • Interface: 4-Lane MIPI CSI-2
    • Connector: 22pin FPC connector
    • Cable length: 15cm
  • Module features:
    • Sensor: AR0821 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/1.7"
    • Output Format: Uncompressed UYVY format
    • Pixel Size: 2.1μm x 2.1μm
    • Sensor Active Area: 3848H x 2168V
    • Responsivity: 15.4 Ke-/luxsec
    • SNR: 41.8 dB
    • Dynamic Range: 100 dB
    • Lens Holder: M12 (S-Mount)
    • FOV: 120° (D), 104.8° (H), 58.7° (V) (with the lens provided by e-con)
  • Electrical and Mechanical:
    • Operating voltage: 3.3V +/- 5%
    • Operating temperature: -30°C to 70°C
    • Typical power consumption - 0.92W
    • Size in mm (l x b): 30 x 30 mm
    • Board Weight: 27.18g (with lens)
  • Miscellaneous:
    • Compliance: RoHS
Linux camera driver:

The e-CAM81_CURBC is a MIPI 4-lane camera and it requires a custom camera driver for Raspberry Pi 5 Dev kit. e-con Systems™ provides the camera driver along with the camera board

  • V4L2 Linux driver for MIPI CSI-2 camera module:
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • Sample application with source Code for Linux:
    • Video Preview
    • Still Image capture at selected resolutions
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
 Bullat Arrow  Datasheet
 Bullat Arrow  User Manual

Download 8MP Camera Documents

e-CAM81_CURBC
  • Hardware
    • e-CAM82_CUMI0821_MOD - 8MP MIPI Camera Module with lens
    • Adaptor board
    • FPC cable (15cm)
  • Software
    • Linux
      • prebuild Raspbian images for out of the box Evalution
      • V4L2 - Linux driver source code
  • Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
