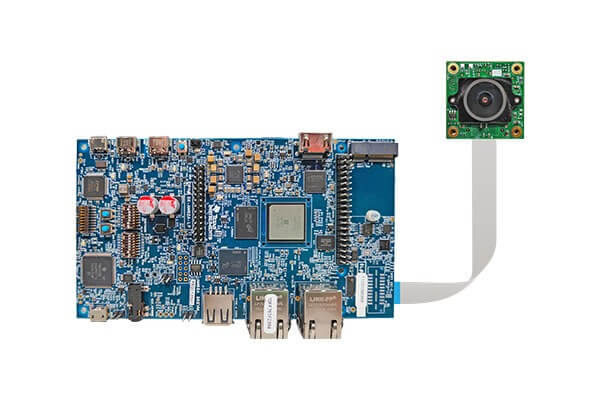

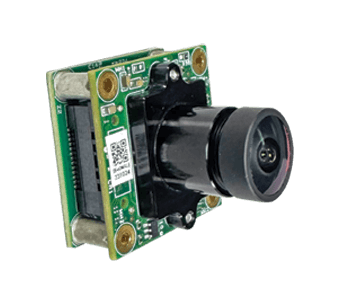

e-CAM25_CUAM6 - Full HD AR0234 Global Shutter Camera for TI SK-AM62A-LP Kit

• Key features:
• • Frame Rate:

    • Streams HD (1280 x 720) @ 120 fps & Full HD (1920 x 1080) @ 65 fps.
    Refer Datasheet for complete frame rate details.
  • Output Format: Uncompressed UYVY.
  • High-speed 4-lane MIPI CSI-2 interface.
  • Standard M12 (S-mount) lens holder for versatile optics options.
  • Lightweight, versatile, and portable multi-board solution.
• Interface:
• • Interface: 4-lane MIPI CSI-2
  • Connector: 22-pin FFC connector (CN1) on the adaptor board.
  • Cable Length: 15cm FPC cable.
• Module features:
• • Sensor: AR0234CS from onsemi™.
  • Focus Type: Fixed focus
  • Sensor Resolution: 2.3MP
  • Chroma: Color
  • Shutter Type: Global Shutter
  • Optical Format: 1/2.6"
  • Output Format: Uncompressed UYVY
  • Pixel Size: 3.0 µm x 3.0 µm
  • SNR: 38 dB
  • Dynamic Range: 71.4 dB
  • Sensor Active Area: 1920H x 1200V
  • Array Size: 1920H x 1200V
  • Holder: M12 (S-Mount).
  • FOV: 128.2°(D), 104.6°(H), 61.6°(V) (with the lens provided by e-con)
• Electrical & Mechanical:
• • Operating Voltage: 3.3V +/- 5%
  • Operating Temperature: -30°C to 70°C.
  • Power Consumption: 0.92 W.
  • Size: 30 mm x 30 mm (Camera module).
• Miscellaneous:
• • Compliance: RoHS

Supported Kernel: Verified with Kernel Version 6.1 in pre-built images.

• Linux Camera Driver: V4L2 Linux driver for MIPI CSI-2 camera module.
• • Video preview
  • Still Image capture
  • Camera controls via IOCTLs/Media-Control
• Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.

Kit contents:

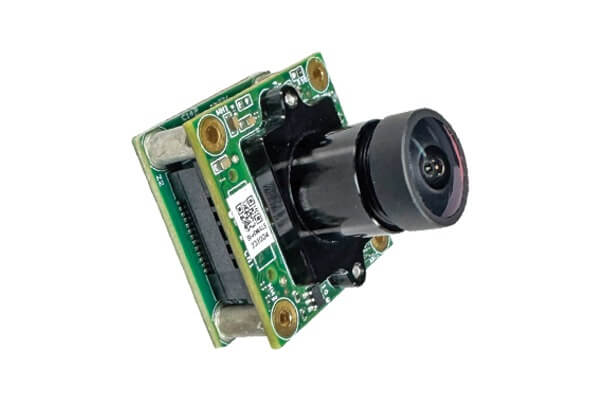

• e-CAM217_CUMI0234_MOD - Full HD MIPI Camera Module with lens
• Adaptor board
• FPC cable (15cm)
• Camera and features customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.
