NileCAM84 - 4K AR0830 GMSL2 Camera with 15m cable support


  • 8MP camera module based on onsemi® AR0830 sensor
  • Wake on Motion - Enables sensor to remain in low-power state until motion detected *
  • Super Low Power Mode*
  • GMSL2 interface to transmit power and data up to 15m

Samples Available

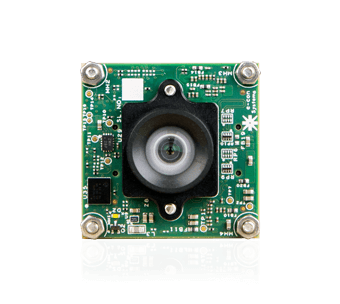

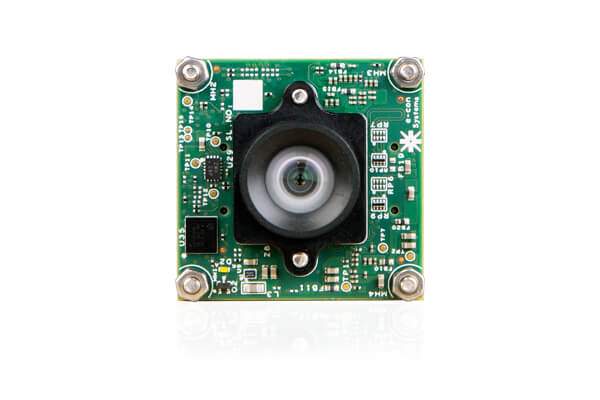

NileCAM84 is a 4K camera module with a 1/2.9-inch AR0830 sensor from onsemi®. It can be connected to NVIDIA® Jetson AGX Xavier™ and NVIDIA® Jetson AGX Orin™ development kit using GMSL 2 interface. This camera module's new wake-on-motion/motion detection feature allows it to detect visible motion.

NileCAM84 has a built-in onboard high-performance ISP - providing image outputs at a resolution of 4K with great details. So, it can be integrated into remote patient monitoring systems, driver monitoring systems, and IVA applications like ANPR. Additionally, the camera incorporates a standard M12 lens holder, allowing customers to use customized optics or lenses to suit their specific application needs.

  • Key features:
    • Frame Rate:
      • Full HD @ 120 fps & 8MP (4K) @ 30 fps
    • NV12 streaming
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: AR0830 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 8MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/2.9"
    • Output Format: Uncompressed UYVY
    • Pixel Size: 1.4μm x 1.4μm Back Side Illuminated (BSI)
    • Sensor Active Area: 3840 (H) x 2160 (V)
    • Array Size: 3840 (H) x 2160 (V)
    • SNR: 39.9 dB
    • Dynamic Range: 73 dB
    • Holder: M12 (S-Mount)
    • FOV: - 83.08°(D), 73.44°(H), 45.56°(V) (with the lens provided by e-con)
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: TBD
    • Typical power consumption: TBD
    • Size in mm (l x b): 30 x 30 mm
  • Miscellaneous:
    • Compliance: RoHS

Product Code Supported Platforms Sample Price
(1 Unit)

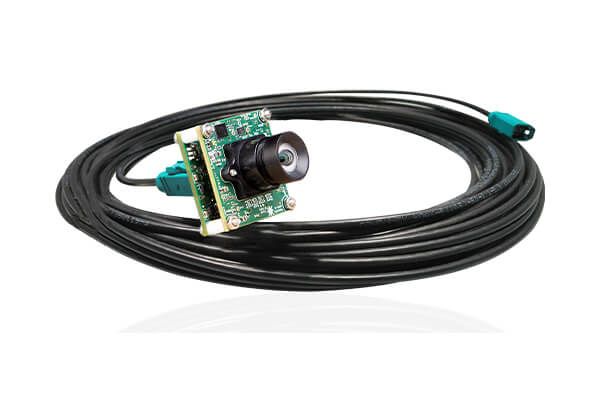

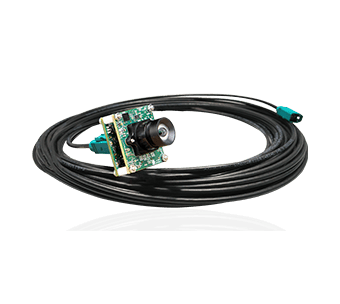

Kit Contents
  • NileCAM84 - 8MP Camera Module with S-mount lens holder
  • 15 meter coaxial cable
  • Deserializer board
NVIDIA® Jetson AGX Orin / Xavier™ Dev Kit

NileCAM84_CUOAGX-NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit


NileCAM84 - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for NileCAM84 on any application platform as per customer requirements.

NileCAM84 - Customization:

e-con provides customization for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and feature customization based on specific requirements. Please contact for customization requirements.


Targeted Applications

  • Remote Patient Monitoring

  • Driver Monitoring Systems

  • IVA Applications Like ANPR
