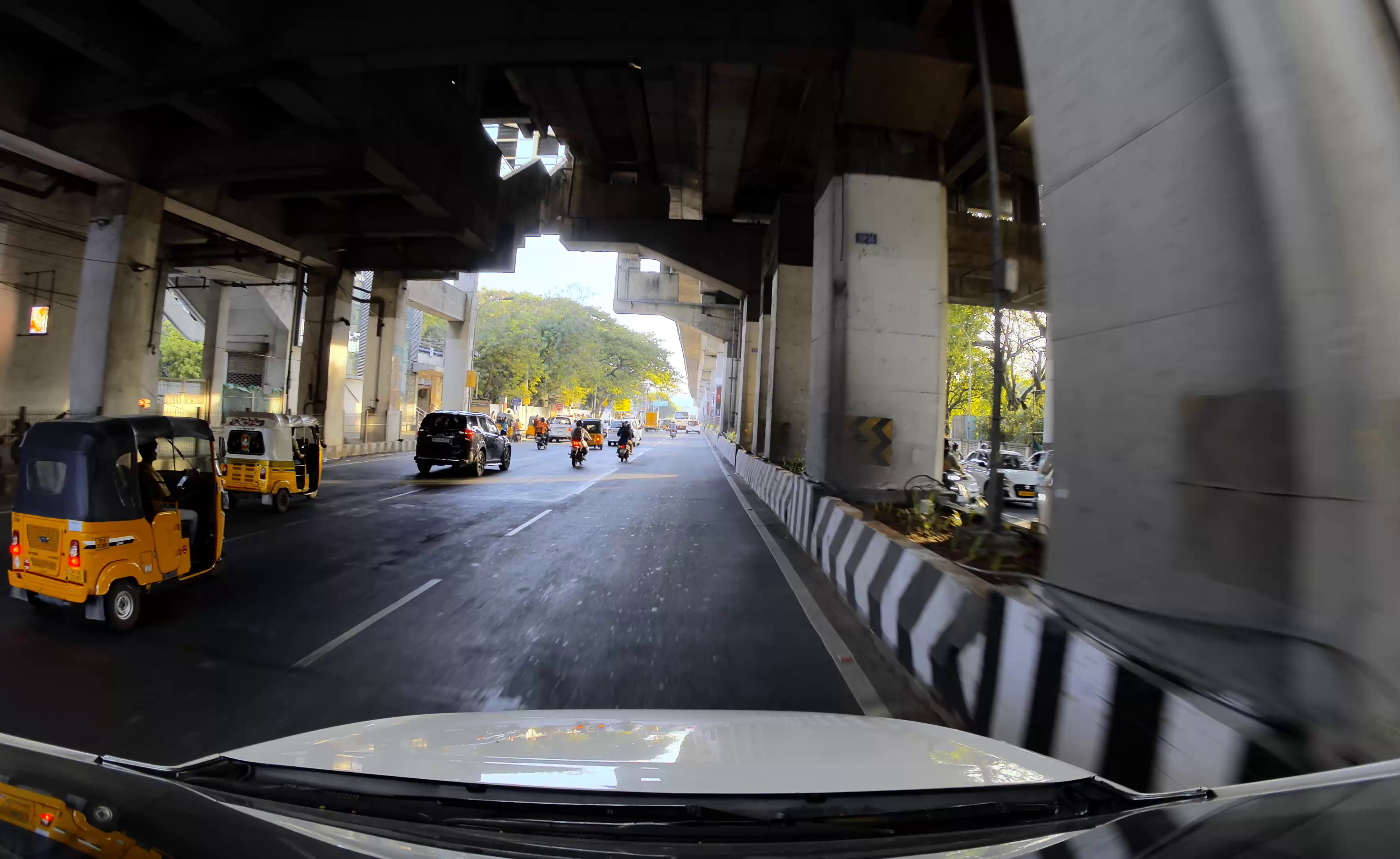

STURDeCAM88_CUOAGX is a rugged, high-performance 4K HDR front view camera from e-con Systems®, designed to meet the demanding requirements of modern embedded vision applications. Equipped with an 8.3MP (1/1.73") automotive-grade OmniVision® OX08B40 image sensor, the camera supports up to 140 dB HDR using rolling shutter readout and features LED Flicker Mitigation (LFM) for stable and flicker-free imaging in dynamic lighting conditions.
STURDeCAM88_CUOAGX_CXLC comes with an onboard Image Signal Processor (ISP) and uses Analog Devices' GMSL2 SerDes technology, enabling high-speed data, power, and control transmission over a single rugged coaxial cable with FAKRA connector. This simplifies integration and improves durability in industrial and automotive setups.
Designed for use with the NVIDIA® Jetson AGX Orin™ development kit via a dedicated deserializer board, the camera supports flexible deployment with coaxial cable lengths up to 15 meters, making it ideal for Delivery Robots, Autonomous Vehicles, Agricultural Vehicles, Mining Vehicles, All-Terrain Vehicles, Intelligent Transport Systems (ITS) and Biometrics.
With its IP67-rated enclosure, STURDeCAM88_CUOAGX ensures dust-tight and high-pressure water resistance, offering unmatched reliability for both indoor and outdoor applications.
Refer
Datasheet for complete frame rate details.
- Key features:
-
- Frame Rate : Streams 8MP @ 30 fps & Full HD @ 30 fps
ReferDatasheet for complete frame rate details.
- Output format: Uncompressed UYVY format
- High-speed MIPI CSI-2 interface to connect with the CPU
- Control for individual cameras
- Lightweight, versatile, and portable design
- Frame Rate : Streams 8MP @ 30 fps & Full HD @ 30 fps
- Interface:
-
- Interface: GMSL2
- Connector: FAKRA connector
- Cable Length: upto 15m
- Sensor Features:
-
- Sensor: OmniVision OX08B40
- Focus Type: Fixed focus
- Sensor Resolution: 8.3MP
- Chroma: Color
- Shutter Type: Electronic Rolling Shutter
- Optical Format: 1/1.73"
- Output Format: UYVY
- Pixel Size: 2.1μm x 2.1μm
- Sensor Active Area: 3840(H) x 2160(V)
- Dynamic Range: Max upto 140 dB
- Lens Holder: M12 (S-Mount)
- FOV:
- Narrow angle: 68.23°(H), 38.83°(V), 80.22°(D) (with the lens provided by e-con)
- Wide angle: 120.12°(H), 67.04°(V), 137.36°(D)
- Electrical & Mechanical:
-
- Operating Voltage: 12V+/- 250mV
- Operating Temperature Range: - 40°C to 80°C
- Typical power consumption: 2.5W
- Size in mm (l x b):
- Camera with Enclosure - 42 x 42 mm
- Deserializer Board - 80.8 x 55 mm
- Board Weight: 80g (with narrow angle lens)
- Miscellaneous:
-
- Compliance: RoHS
- For application specific standards, refer here » refer here»
- Launched on:
| Environmental tests |
ISO16750-4 |
Road vehicles Environmental conditions and testing for electrical and electronic equipment Part 4: Climatic loads |
|---|---|---|
|
ISO16750-3 |
Road vehicles Environmental conditions and testing for electrical and electronic equipment Part 3: Mechanical loads |
|
| Electrical tests |
ISO 11452-4 |
Road vehicles Component test methods for electrical disturbances from narrowband radiated electromagnetic energy
|
|
CISPR-32 |
Electromagnetic compatibility of multimedia equipment - Emission requirements 30MHz to 6000MHz |
|
|
EN 61000-4-3:2020 |
Electromagnetic compatibility (EMC) - Part 4-3 : Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test 80MHz to 6000MHz @ 3V/m |
- Linux camera driver:
-
- Full-fledged Linux camera driver for STURDeCAM88_CUOAGX with NVIDIA® Jetson AGX Orin™ developer kit. The camera driver source code can be ported to any NVIDIA AGX Orin platform.
- Supported Jetpack & L4T Version:
-
- Jetson AGX Orin™ - JetPack 6.2 L4T36.4.3
- Jetson AGX Xavier™ - Please contact camerasolutions@e-consystems.com
- V4L2 Linux driver for MIPI CSI-2 camera module:
-
- Video preview
- Still Image capture
- Camera controls via IOCTLs
- Sample application with source Code for Linux:
-
- Video Preview
- Still Image capture at selected resolutions
- Camera Controls:
-
- Brightness
- Contrast
- Saturation
- Horizontal Flip
- Vertical Flip
- Power Line Frequency
- Sharpness
- Frame Sync
Please contact camerasolutions@e-consystems.com for any customization or porting of camera driver to your requirements.
STURDeCAM88_CUOAGX_CXLC_1H02R1
USD 699 599
STURDeCAM88_CUOAGX_CXLC_1H04R1
USD 799 699
STURDeCAM88_CUOAGX_CXLC_4H02R1
STURDeCAM88_CXLW_H05R1
USD 399
STURDeCAM88_CXLW_H06R1
USD 449
STURDeCAM88_CUOAGX - Customization for other Application Processor platforms:
e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM88_CUOAGX on any application platform as per customer requirements.
STURDeCAM88_CUOAGX - Customization
e-con provides customization, development and porting services for the following requirements:
- Change of lens to meet your FOV and other requirements
- Support to other NVIDIA® Jetson platforms from other vendors
- To support other processor platforms
- Complete customization of firmware and hardware as per customer requirements. Please contact us for any customization and additional features.
