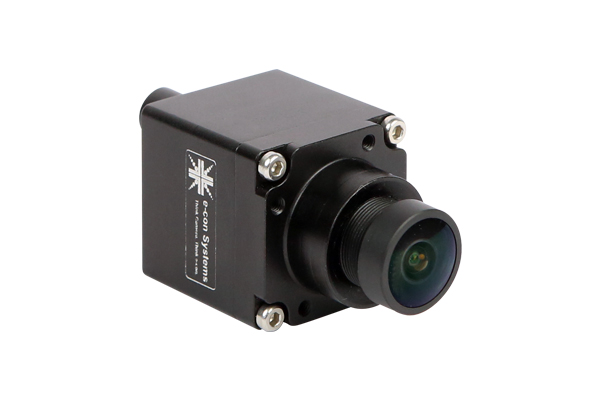

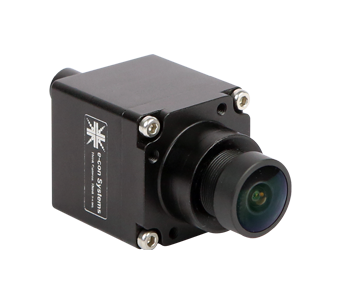

STURDeCAM34 - IP69K 3MP AR0341AT HDR Camera Module with 15m cable support

Highlights:

  • Houses AR0341AT Image Sensor from onsemi®
  • Super-exposure pixel technology
  • Upto 150dB HDR High Dynamic Range (HDR) + LFM
  • GMSL2 interface to transmit power and data up to 15m
  • IP67-rated enclosure

Samples Available

STURDeCAM34 is a 3MP GMSL2 camera module based on AR0341AT CMOS Image Sensor. This module stands out with its remarkable features, including super-exposure pixel technology that provides up to 150 dB high dynamic range (HDR) with LED flicker mitigation (LFM) operation. This super-exposure pixel technology eliminates the need for auto exposure control operations and also minimizes latency in sensing and viewing camera applications, making it highly suitable for Advanced Driver Assistance Systems (ADAS) and other critical applications.

STURDeCAM34 camera module also comes equipped with an on-board high-performance ISP, further enhancing image processing capabilities. It offers versatile interface options, supporting GMSL and MIPI, providing seamless integration capabilities for a wide range of applications.

  • Key features:
    • Frame Rate:
      • 3MP @ 60 fps
    • Output format: YUV
    • Standard M12 lens holder for use with customized optics or lenses for various applications
    • Lightweight, versatile, and portable design
  • Interface:
    • Interface: GMSL2
    • Connector: FAKRA connector
    • Cable Length: 15m
  • Sensor features:
    • Sensor: AR0341 from onsemi®
    • Focus Type: Fixed focus
    • Sensor Resolution: 3MP
    • Chroma: Color
    • Shutter Type: Electronic Rolling Shutter
    • Optical Format: 1/3.6"
    • Output Format: RAW Bayer
    • Pixel Size: 2.1μm x 2.1μm
    • Sensor Active Area: 1920 (H) x 1536 (V)
    • Array Size: 1920 (H) x 1536 (V)
    • Dynamic Range: upto 150dB
    • Holder: M12 (S-Mount)
    • FOV:TBD
  • Electrical & Mechanical:
    • Operating Voltage: 5 to 15V with +/- 5% tolerance
    • Operating Temperature Range: -40°C to 80°C
    • Typical power consumption: TBD
  • Miscellaneous:
    • Compliance: RoHS
 Bullat Arrow  Download STURDeCAM34 Documents

Documents  13MP GMSL 2 camera

Product Code Supported Platforms Sample Price
(1 Unit)
STURDeCAM34_CUOAGX
Kit Contents
  • STURDeCAM34 - 3MP Camera Module with S-mount lens holder
  • 15 meter coaxial cable
  • Deserializer board
NVIDIA® Jetson AGX Orin / Xavier™ Dev Kit

STURDeCAM34_CUOAGX-NVIDIA® Jetson AGX Orin™/ AGX Xavier™ Dev Kit



STURDeCAM34 - Customization for other Application Processor platforms:

e-con Systems™ provides camera driver development, customization and porting services for STURDeCAM34 on any application platform as per customer requirements.

STURDeCAM34 - Customization:

e-con provides customization for the following requirements:

  • IP rated (IP67) enclosure and IP rated (IP67) cables for rugged applications.
  • Length of the co-axial cable
  • Change of lens to meet your FOV and other requirements
  • Support for other NVIDIA® Jetson™ platforms as well as carrier boards from other vendors built using NVIDIA platforms
  • Support for other processor platforms
  • Camera and feature customization based on specific requirements. Please contact camerasolutions@e-consystems.com for customization requirements.

ContactUs

Targeted Applications

  • ADAS

  • Automated Guided Vehicle (AGV)

  • Automotive Grade Dash Cam

  • Robot Delivery

  • Autonomous vehicles
