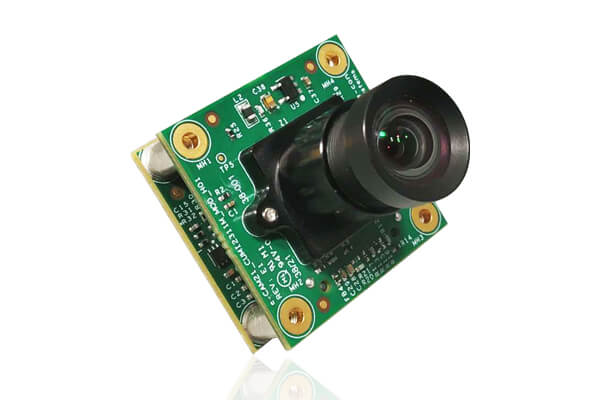

e-CAM21_CURB – 2MP OV2311 Global Shutter Monochrome camera for Raspberry Pi 4

e-CAM21_CURB is a 2MP global shutter monochrome camera solution for Raspberry Pi 4 kit. It is based on OmniVision's 1/2.9" OV2311 Image sensor with 3μm x 3μm pixel OmniPixel® 3-GS technology. This global shutter camera captures images at a high frame rate, which helps to avoid rolling shutter artifacts and reduce motion blur while capturing fast-moving objects. This in turn helps to easily extract clear details of the scene.

It comes with an M12 lens holder (S-mount) which offers customers an opportunity to use the lens of their choice. This 2-Lane MIPI camera can be streamed in maximum of 2MP resolution at 60 fps, HD resolution at 90 fps.

  • Houses Full HD Camera Module with S-mount lens holder
  • High-speed MIPI CSI-2 interface to connect with the CPU
  • Plugs in to Raspberry Pi 4 kit
  • Frame Rate: Streams HD @ 90 fps & 2M @ 60 fps
    Refer pdfDatasheet for complete frame rate details.
  • Output Format: RAW8/10
  • Operating Temperature Range: -30° to 85° C
  • Operating power: 0.21W
  • Sample application for image capture & Preview
  • Asynchronous and synchronous mode
  • Hardware Trigger Input
  • Yocto build support (dunfell)
  • Gstreamer-1.0 support for video streaming
  • Lightweight, versatile, and portable two-board solution
  • Adaptor board size in mm (l x b): 30 x 30 (Height depends on the lens)
  • FFC Cable Length: 15 cm
  • RoHS compliant
  • Launched on:launch date

Sensor:OV2311 from OmniVision

Sensor Resolution:2MP

Optical Format:1/3.2"

Focus Type:Fixed focus

Chroma Type:Monochrome

Shutter type:Global Shutter

Output Format:RAW8/10

Pixel size:3μm x 3μm pixel

Sensor Active Area:1600 (H) x 1300 (V)

Array Size:1616H x 1316V

FOV: 71.6°(D), 58.6°(H), 48.77°(V) (with the lens provided by e-con)

The e-CAM21_CURB is a MIPI 2-lane camera and it requires a custom camera driver for Raspberry Pi 4 kit. e-con Systems™ provides the camera driver along with the camera board

  • V4L2 Linux driver for MIPI CSI-2 camera module
    • Video preview
    • Still Image capture
    • Camera controls via IOCTLs
  • gstreamer support
    • Video Preview
  • Camera Controls
    • Gain
    • Exposure time absolute
    • Frame_sync

Please contact sales@e-consystems.com for any customization or porting of camera driver to your requirements.

Download e-CAM21_CURB - Technical Documents:

 Bullat Arrow  Datasheet

pdf e-CAM21_CURB Datasheet

pdf e-CAM21_CURB Lens Datasheet

 Bullat Arrow  User Manual

pdf e-CAM21_CURB Developer Guide

pdf e-CAM21_CURB Getting Started Manual

Download Selected Documents

Kit Contents for Raspberry Pi 4 Camera:

  • Hardware:
    • e-CAM21_CURB - HD MIPI Camera board (contains the e-CAM21_CUMI2311_MOD_H01 camera module, adaptor board and a FFC cable)
  • Software:
    • Linux:
      • prebuild yocto and Raspbian images for out of the box Evalution
      • V4L2 - Linux driver source code
